T/V-Slot Aluminium Extrusion Profile – Sample Pack – 20 Series
Brand:Ooznest
Introducing our 20 Series T/V-Slot Sample Pack, a perfect solution for those who want to explore the versatility and quality of our Aluminium Extrusion.

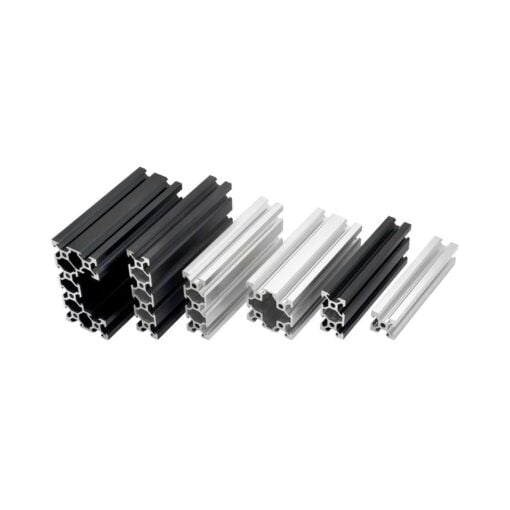

Introducing our 20 Series T/V-Slot Aluminium Extrusion Profile Sample Pack, containing a 100mm piece of each of the six profiles 20x20mm, 20x40mm, 20x60mm, 20x80mm, 40x40mm, and 40x80mm (C-Beam).
A perfect solution for those who want to explore the versatility and quality of our 20 Series Aluminium Extrusion before committing to a larger project, this sample pack offers a comprehensive selection of all our 20 Series profiles, allowing you to learn the functionality and design possibilities of each.
To showcase the aesthetic options available, the pack contains a mix of both silver and black anodised profiles. These finishes not only enhance the visual appeal of the profiles but also add a layer of protection against corrosion, ensuring longevity and durability.
Key Features
- Precision Motion: The V-Slot design of our aluminium extrusion excels in precision linear motion applications. Its unique shape is specifically engineered to accommodate V-wheels, ensuring smooth and accurate movement for projects that require reliable motion control, such as 3D printers, CNC machines, and camera sliders.
- High-Quality Material: Our extrusion is made from 6063 T-5 Aluminium, a material known for its impressive strength-to-weight ratio and long-lasting durability. This high-grade aluminium ensures a strong yet lightweight structure, suitable for a multitude of applications. Additionally, our clear and black anodised finishes enhance the material’s durability and offer an aesthetic that fits seamlessly into your project’s design.
- Ease of Assembly: The T-Slot design of our aluminium extrusion facilitates straightforward assembly. With compatibility for a variety of connectors and accessories, this design offers flexibility and efficiency, simplifying the construction process to fit your specific needs.
- Versatility: Our aluminium extrusion is designed to be compatible with both V-Slot and T-Slot systems, making it adaptable to a wide range of applications.
- Customisable: Our aluminium extrusion is designed to cater to your unique requirements, offering a high level of customisation to suit your specific needs. We provide custom lengths, diagonal cutting, and tapping services to ensure that our extrusion perfectly fits your project’s demands. Furthermore, the nature of aluminium extrusion itself allows for easy customisation and modification, giving you the freedom to adapt the extrusion to your requirements.
- Dimensionally Accurate: Our aluminium extrusion is manufactured with precision and attention to detail, ensuring that it meets exact dimensional specifications. With tight tolerances and consistent dimensions across each extrusion, you can be confident that our aluminium profile will fit together effortlessly with compatible components and accessories.
Application
Our aluminium extrusion is designed to be compatible with both V-Slot and T-Slot systems, offering you maximum flexibility for your projects.
- T-Slot: Allows for easy assembly and adaptability with a wide range of accessories, making it perfect for constructing framing systems, workstations, and machine guarding.
- V-Slot: Opens up a world of possibilities for motion-based applications. The V-shaped profile of the V-Slot system is specifically designed to accommodate V-wheels, enabling smooth and precise linear motion. This makes our aluminium extrusion an excellent choice for building 3D Printers, CNC Machines, Camera Sliders, and other automation equipment that requires accurate and reliable movement.
By combining the strengths of both V-Slot and T-Slot systems in a single aluminium profile, our extrusion offers unmatched versatility and customization options for your projects.
| Brand | Ooznest |
|---|---|
| Stock Type | New |
| Weight (g) | 705.00 |
| Profile Series | 20 Series |
| Material | 6063 T-5 Aluminium |
| Surface Finish | Anodised |
| Slot Width (mm) | 6.13 |
| Slot Depth (mm) | 6.1 |
| Length Tolerance (mm) | +/- 0.2 |
| Ange Tolerance (°) | +/- 0.25° |
| End Hole Diameter (mm) | 4.2 |
| Quantity | Item |
|---|---|
| 1 | 20x20x100mm |
| 1 | 20x40x100mm |
| 1 | 20x60x100mm |
| 1 | 20x80x100mm |
| 1 | 40x40x100mm |
| 1 | 40x80x100mm |
| Notes |
|---|
| We cannot specify which profiles will be in Silver or Black Anodise in the sample pack, but we guarantee that you will get a mixture of both. |
| If you are just interested in a sample of a specific extrusion, simply visit the respective product page and enter the desired length. Please note that the smallest length we can cut is 40mm. |
External Links
| Description | Links |
|---|---|
| Load & Deflections Data | Link |
