20x20mm – T/V-Slot Aluminium Extrusion Profile – Silver – Cut To Size
Brand:Ooznest

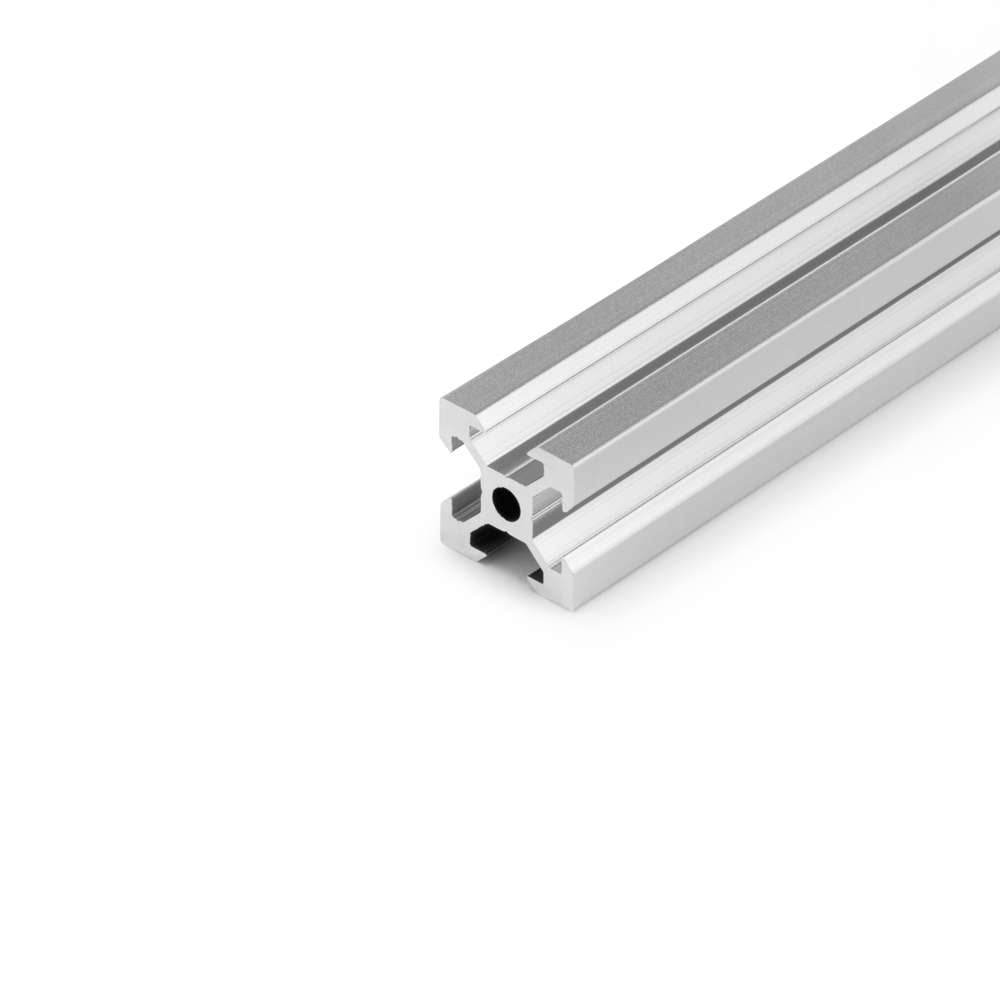

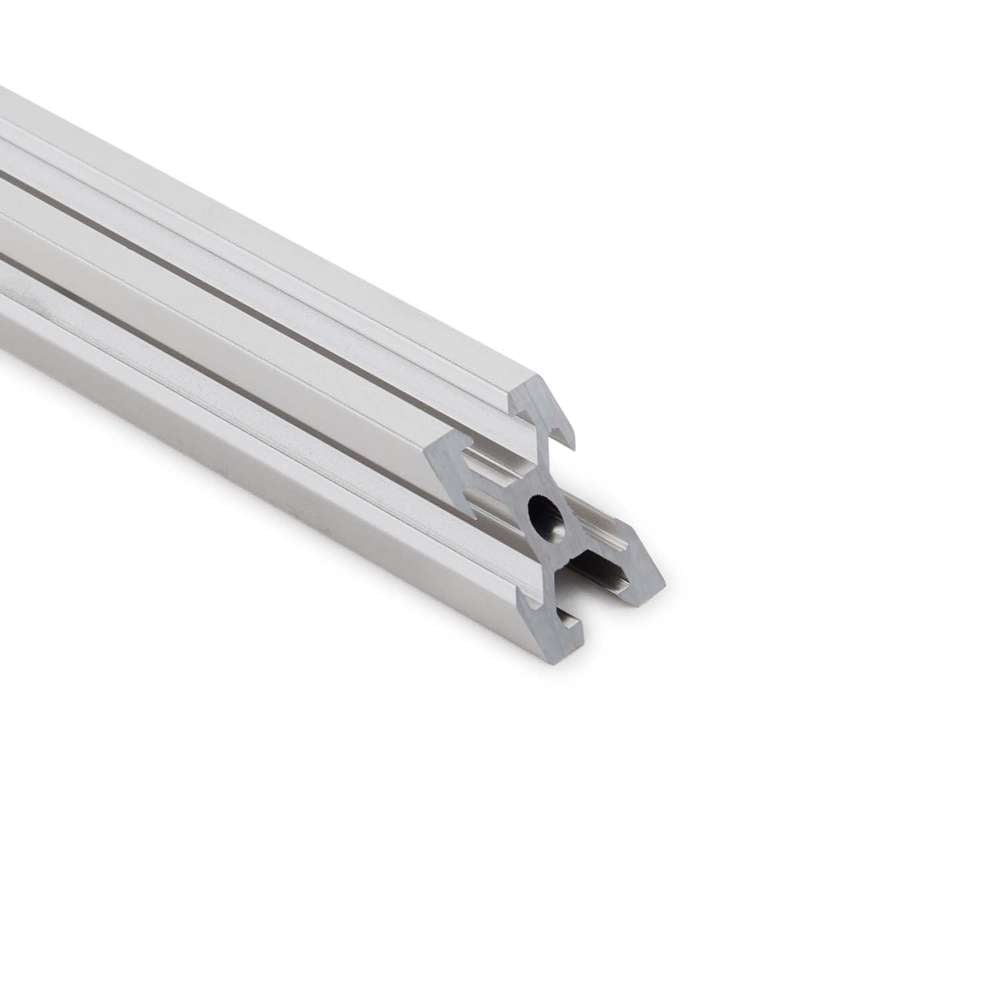

20x20mm Silver T-Slot & V-Slot Compatible Aluminium Extrusion Profile from Ooznest. Cut To Size, Angle, and Tapping Services. Same day shipping.
Introducing our premium aluminium extrusion, the perfect solution for your next project! Designed with versatility and durability in mind, our high-quality T-Slot and V-Slot compatible aluminium profile is ideal for a wide range of applications. From framing systems to machine guarding, workstations to display stands, as well as CNC machines and 3D printers, this reliable and easy-to-assemble extrusion provides a strong foundation for any build. Harness the potential of our 20×20 silver aluminium extrusion for your DIY projects, industrial applications, and automated systems.
Key Features
- Precision Motion: The V-Slot design of our aluminium extrusion excels in precision linear motion applications. Its unique shape is specifically engineered to accommodate V-wheels, ensuring smooth and accurate movement for projects that require reliable motion control, such as 3D printers, CNC machines, and camera sliders.
- High-Quality Material: Our extrusion is made from 6063 T-5 Aluminium, a material known for its impressive strength-to-weight ratio and long-lasting durability. This high-grade aluminium ensures a strong yet lightweight structure, suitable for a multitude of applications. Additionally, our clear and black anodised finishes enhance the material’s durability and offer an aesthetic that fits seamlessly into your project’s design.

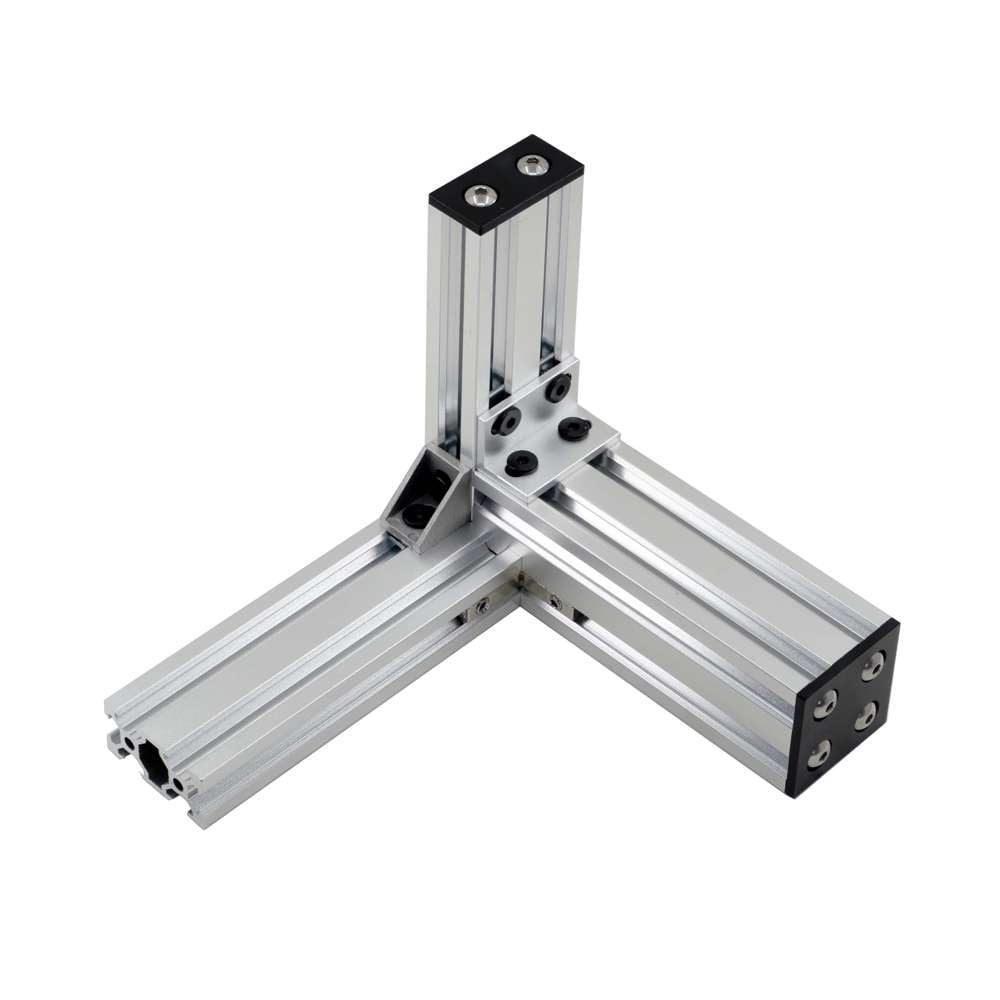

- Ease of Assembly: The T-Slot design of our aluminium extrusion facilitates straightforward assembly. With compatibility for a variety of connectors and accessories, this design offers flexibility and efficiency, simplifying the construction process to fit your specific needs.
- Versatility: Our aluminium extrusion is designed to be compatible with both V-Slot and T-Slot systems, making it adaptable to a wide range of applications.
- Customisable: Our aluminium extrusion is designed to cater to your unique requirements, offering a high level of customisation to suit your specific needs. We provide custom lengths, diagonal cutting, and tapping services to ensure that our extrusion perfectly fits your project’s demands. Furthermore, the nature of aluminium extrusion itself allows for easy customisation and modification, giving you the freedom to adapt the extrusion to your requirements.
- Dimensionally Accurate: Our aluminium extrusion is manufactured with precision and attention to detail, ensuring that it meets exact dimensional specifications. With tight tolerances and consistent dimensions across each extrusion, you can be confident that our aluminium profile will fit together effortlessly with compatible components and accessories.
Application
Our aluminium extrusion is designed to be compatible with both V-Slot and T-Slot systems, offering you maximum flexibility for your projects.
- T-Slot: Allows for easy assembly and adaptability with a wide range of accessories, making it perfect for constructing framing systems, workstations, and machine guarding.

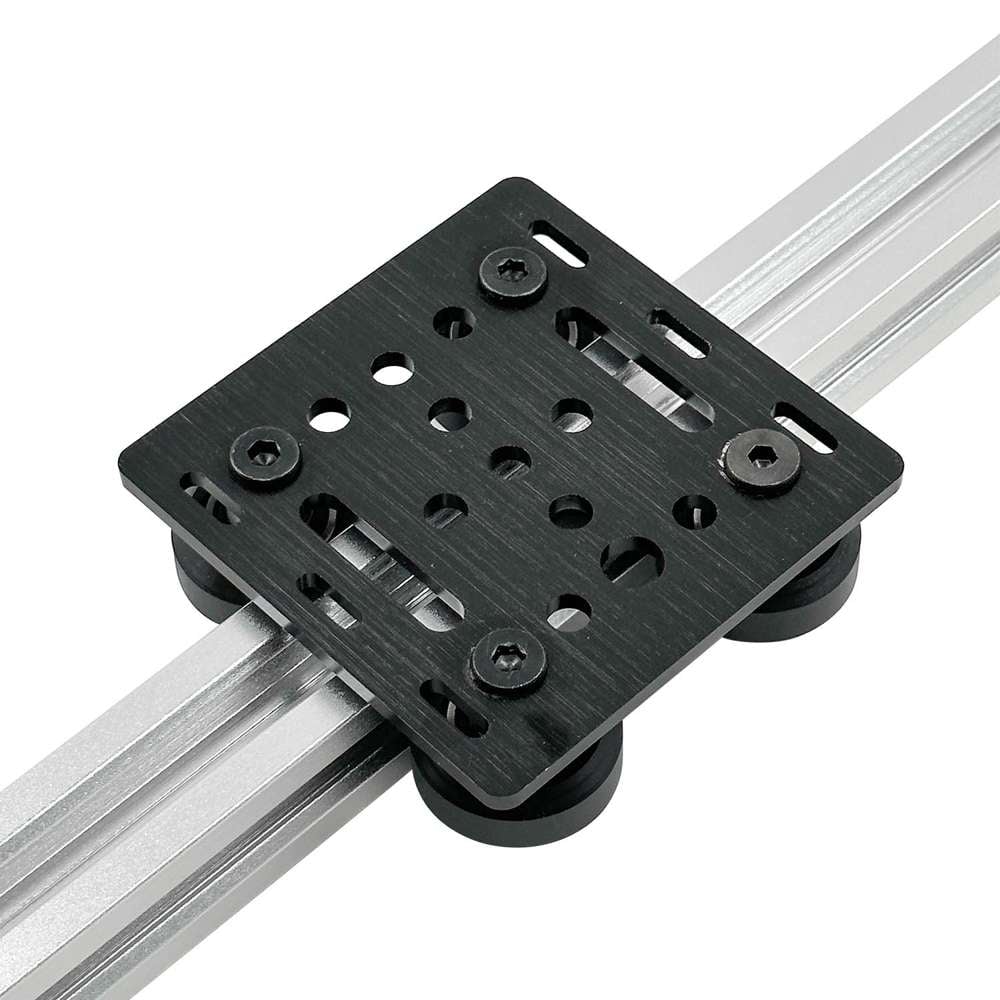

- V-Slot: Opens up a world of possibilities for motion-based applications. The V-shaped profile of the V-Slot system is specifically designed to accommodate V-wheels, enabling smooth and precise linear motion. This makes our aluminium extrusion an excellent choice for building 3D Printers, CNC Machines, Camera Sliders, and other automation equipment that requires accurate and reliable movement.
By combining the strengths of both V-Slot and T-Slot systems in a single aluminium profile, our extrusion offers unmatched versatility and customization options for your projects.
Our Bespoke Customisation Services
Discover the convenience and precision of our bespoke customisation services, designed to help you achieve the perfect fit for your 20×20 aluminium extrusion needs. Our range of services includes:
- Cut To Size: We provide precise cutting services to ensure your aluminium extrusion meets your desired length with an accuracy of +/- 0.2mm. This level of precision guarantees a seamless fit for your project requirements.
- Angle Cutting: Our skilled team can perform diagonal cuts at angles of up to +/- 60 degrees, providing you with the flexibility to create unique shapes and configurations for your projects.
- M5 Tapping Service: To further enhance the assembly process, we offer an M5 Tapping Service, allowing for easy and secure connections between extrusions and other components.
With our tailored customisation services, you can be confident that your 20×20 silver aluminium extrusion will be expertly modified to fit your project’s specific needs, ensuring a smooth and efficient assembly process.
| Brand | Ooznest |
|---|---|
| Stock Type | New |
| Weight (g) | 0.48 |
| Profile Series | 20 Series |
| Profile | 20×20 |
| Material | 6063 T-5 Aluminium |
| Surface Finish | Anodised |
| Colour | Silver |
| Number Of Slots | 4 |
| Slot Width (mm) | 6.13 |
| Slot Depth (mm) | 6.1 |
| Minimum Length (mm) | 40 |
| Maximum Length (mm) | 3000 |
| Length Tolerance (mm) | +/- 0.2 |
| Ange Tolerance (°) | +/- 0.25° |
| End Hole Diameter (mm) | 4.2 |
| Tapping Thread | M5 |
| Tapping Thread Pitch (mm) | 0.8 |
| Tapping Thread Depth (mm) | 10 |
| X Moment Of Inertia - (m4) | 0.703 x10-8 |
| Y Moment Of Inertia - (m4) | 0.703 x10-8 |
We offer a broad selection of customisation options for our aluminium extrusions. Read the guidelines below for help choosing the correct customisations for your project.
1.0 – Required Length
Required length is the total length of the extrusion in millimetres (mm).
If you are having angle cuts, the required length should include these angles, measured from vertex to vertex.
Extrusions will be cut with a tolerance of +/- 0.2mm.
2.0 – Angle Cutting Service
Choose the type of Angle Cutting you require based on the table below.
| Angle Cutting Service | Description | Diagram |
| No Angles | The extrusion will be cut 90° at each end |
|
| Single Angle | The extrusion will be cut to Angle A at one end |
|
| Double Angles | The extrusion will be cut to Angle A at one end, and Angle B at the other end |
|
| Opposing Angles | The extrusion will be cut to Angle A at one end, and Angle B at the other end |
|
2.2/2.3 – Angle A / Angle B
Specify the desired degree for the angles. The angle is measured at its vertex as per the diagrams under 3.0.
Angle degree must be an integer value from 30° to 89°.
Angles will be cut with a tolerance of +/- 0.25°.
3.0 – M5 Tapping Service
Choose if you want the end holes of the extrusion profile tapped ready to accept a bolt.
Holes are tapped with an M5x0.8mm thread, 10mm deep.
Ends with an angle cut cannot be tapped.
If you choose ‘Single Angle’ cutting service and Tapping service, the straight cut end will be tapped (not the angle cut end).
