Original WorkBee Z1+ CNC Machine
Brand:Ooznest
Original WorkBee Z1+ CNC Machine
Manufacture Your Ideas
Make projects like engineering parts, signs, toys and furniture... in fact with your own WorkBee Z1+ you can make anything you can imagine without leaving the workshop!
The WorkBee Z1+ is an easy and enjoyable self-build kit backed-up by
• First-rate user manuals • 1 year warranty • Large user community
• Quality customer service
WE SHIP WORLDWIDE
+ FREE UK SHIPPING
CURRENT DESPATCH LEAD TIME: 7 DAYS
CONFIGURE YOUR WORKBEE Z1+
MATERIALS GALORE!
With a WorkBee CNC Machine you can cut a huge range of materials including:
- Foams
- Plastics
- Woods
- Carbon Fibre
- Aluminium
- Everything inbetween
Materials can be cut 44mm the whole way through.
DESIGNED & MADE IN BRITAIN
The WorkBee Z1+ is designed and manufactured at our site in the southeast of the UK, we employ a team of local people who carefully produce and package each CNC Machine.
WORKBEE Z1+ NEW FEATURES
POWER SUPPLY
DUST RATED + ESTOP FOR SAFETY.
THRUST BEARINGS
ACCURACY, PRECISION & QUIETNESS
CONTROLLER CASE
COOL RUNNING & REDUCED DUST
PLUS LOTS MORE…
A full list of what’s new can be found on our Blog Post >
UK BASED CUSTOMER SUPPORT
We pride ourselves on our customer service, our expert team is available to answer any queries you may have!
We understand using a CNC Machine can be new to many, but we are here to help.
4′ x 4′ SHEETS – NO PROBLEM
The WorkBee Z1+ comes in a range of sizes – the biggest CNC Machine can cut 4′ x 4′ without a sweat!
For full 8′ x 4′ sheets use CAM Software tiling functions.
Insanely accurate. . . ± 0.1mm is achievable on all sizes of the WorkBee Z1+ CNC Machine with it’s lead screw drive system.
With this level of accuracy, even PCBs can be manufactured on the WorkBee CNC Machine.

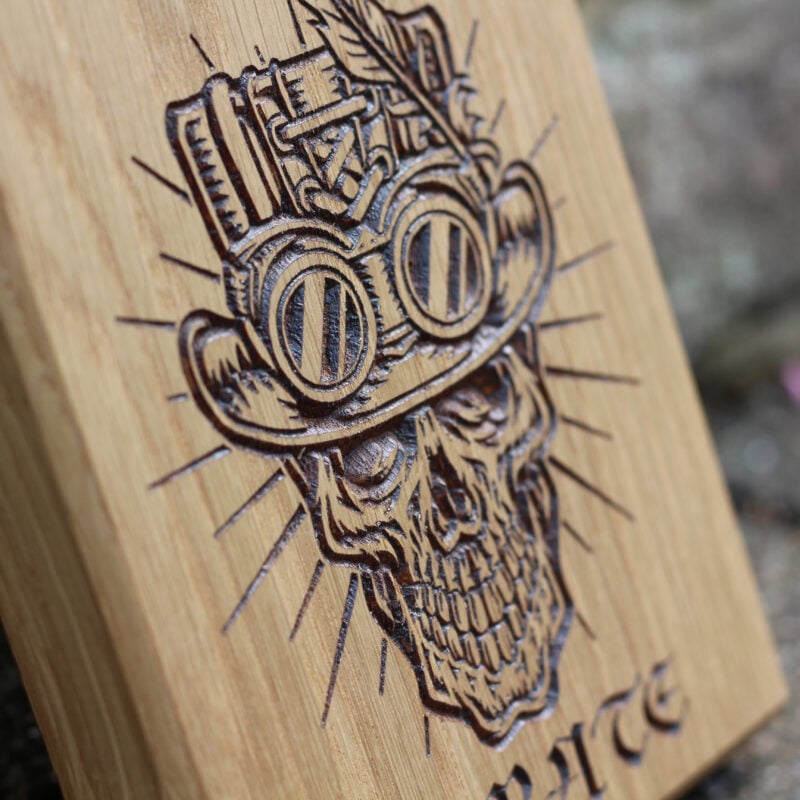

COMMUNITY SHOWCASE
A WORKSHOP COMPANION
Having a WorkBee CNC Machine is like have an extra set of hands – it is an investment to supercharge your business.
Let the WorkBee Z1+ help you manufacture your products again and again.
A CNC Machine can free your time to develop ideas, create more products and ultimately grow your business.
CONFIGURE YOURS
AN EDUCATIONAL TOOL
The WorkBee is also ideal for educational & research settings. You will find a WorkBee CNC Machine already in many Schools, Universities and Makerspaces around the world, such as Manchester and Oxford University – so why not get one in your classroom too!
CAD > CAM > WORKBEE CONTROL
1. Use CAD/CAM Software to design your ideas and generate toolpaths (G-Code). Carveco, Vectric and many more favourite CAM Softwares can be used.
2. Use your computer, tablet or phone web browser to open the built-in WorkBee Control interface via Wifi. Ethernet version also available*.
3. Send created toolpaths to your CNC Machine using WorkBee Control.
*Ethernet cable is connected directly from machine to computer and does not require internet.
LEARN HOW TO BUILD A CNC MACHINE
The WorkBee Z1+ is a self build CNC Machine Kit, and our easy-to-follow and detailed assembly manuals make the build almost as fun as using the machine!
Building your own WorkBee yourself will equip you with knowledge of all the ins and outs of the machine – making maintenance much easier.
Only simple tools are required (spanners, allen keys, screwdrivers etc.) – all the crimping, soldering, and commissioning the controller are all done for you!
VIEW THE MANUALSWHAT'S INCLUDED
INCLUDED WITH EVERY WORKBEE Z1+
Mechanical Frame
Lead Screw System
Wheel Motion System
+ Wheel Adjustment Spanner
Drag Chains
Router Mount
Stepper Motors + Wires
Limit Switches
Controller & Case
Power Supply + Emergency Stop
WorkBee Control
1/4" End mill
+ 30° Calibration End mill
Treats
WHAT YOU CAN ADD AS EXTRAS
* REQUIRED TO OPERATE THE WORKBEE Z1+ AS A CNC MACHINE.
* RECOMMENDED TO GET THE MOST OUT OF YOUR WORKBEE Z1+
Router Head
Endmill Kit
Dust Shoe
CAM Software
Touch Probe
Enclosure
Surfacing Bit
THINGS WE DON'T SUPPLY THAT YOU WILL NEED
MDF Spoilerboard*
Cut to size from a builders merchant (B&Q / Home Depot)
Workpiece Clamps
Recommended UJK System from Axminster
Extraction System**
Recommended from Axminster
(Intended Runtime Dependant)
*Required dimensions can be found on Technical Tab
**An extraction system is only required if the Dust Shoe is chosen in the configurator
FAQs
Check out these FAQs for answers to the most common questions you might ask before purchasing your WorkBee Z1+!
If you cannot find the answer you are looking for, find us on Live Chat, Whatsapp or fill in a Contact Form and our expert team will be happy to help.
You can also book a call-back with our sales team - use the Contact Form to request one.
What can I do with a WorkBee Z1+?
The WorkBee Z1+ is a CNC router machine that can cut, carve and engrave a wide variety of materials.
It is a very versatile machine and can be used for many different projects and applications.
As well as cutting and carving endless things, it can also be applied in different scenarios like rapid prototyping, marking out plot points, drawing and research projects etc.
What can I make with a WorkBee Z1+?
With a WorkBee Z1+ you can make and manufacture an endless list of things!
Its ability to cut, carve and engrave with ease, means you can pretty much make anything you can imagine in your own workshop.
Some examples include:
- Signs
- Toys
- Gifts
- Furniture
- Engineering parts
- Fixtures/Jigs
- Guitars
- Home decorations
- Kitchen accessories
and the list goes on. . .
Check out our Instagram to see what other WorkBee owners have been creating!
Can a beginner use the WorkBee Z1+
If you are an absolute beginner to CNC Machining, the learning curve really depends on how competent you are with a computer. If you have used any type of computer design programs before, then learning the programs that operate a CNC Machine should be fairly easy.
If you haven't got much experience with a computer and have not really used design programs before then it will be a learning curve, but a good one!
If you are a beginner we would recommend buying the software we offer with the machine. Either Vectric Cut2D, VCarve or Carveco Maker. From our experience, these are the easiest programs to use but are still very powerful.
Both programs have beginner tutorials projects to get you started:
Vectric - The Basics
Carveco - Tutorial Projects
We have a guide on running your first project on the WorkBee - First Project
In addition, the Vectric & Carveco software is what we mainly use at Ooznest, so therefore we can provide the best support possible.
The machine comes in kit format, building the machine should be very easy as long as you follow our online guides on our learning portal: https://learn.ooznest.co.uk/
Is the WorkBee Z1+ suitable for a business?
Yes. The WorkBee Z1+ is an ideal machine for your business.
You can use the WorkBee as a production tool to actually manufacture or prototype your products.
Or you can use it to make fixtures, jigs, and devices that expedite the assembly or production of other projects.
A WorkBee Z1+ can help you save time while ensuring accuracy in the work.
It can also increase production on repetitive jobs as it can be set up to run the same projects each day with minimal effort, but maximum output.
The WorkBee Z1+ can help you bring essential and bespoke manufacturing back in-house!
Is the WorkBee Z1+ suitable for a school?
Yes, the WorkBee Z1+ makes a great addition to the classroom to allow students to gain skills for a new age of digital computer-aided design and manufacturing – skills for the modern workplace.
We currently supply over 70 schools and Universities in the UK with our WorkBee CNC machines.
The WorkBee Z1+ is a self-build kit that is easy and safe to use - and also makes a great team project.
It can be used for students to both make and create within D&T education as well as learn CNC machine design, electronics, and digital manufacturing.
Does the WorkBee Z1+ come with a warranty?
Yes the Ooznest Original WorkBee Z1+ comes with a 1-year limited warranty. More information can be found here
What is included with the WorkBee Z1+?
Check out the What's Included tab for all the details.
The Original WorkBee Z1+ CNC Machine includes everything you need to build a moving CNC Machine.
The Configurator lists all the extras we offer.
The essential extras you need are: Router Head and CAM Software.
End Mills, Dust Shoe, Touch Probe, Surfacing Bit and Enclosure are all optional extras.
Items we do not supply are the MDF Spoilerboard and Workpiece clamps.
If you buy the Dust Shoe, you will also need a suitable extraction system.
Should I choose Wifi or Ethernet Connectivity?
The connectivity is how you will connect to the WorkBee Z1+.
If you will have a strong Wifi signal near the machine – Choose the Wifi version.
If there is no Wifi or the signal is weak – Choose the Ethernet version*.
If you plan to have a computer next to the WorkBee Z1+ at all times - Choose the Ethernet version*.
*The ethernet cable connects directly from the ethernet port on your computer to the WorkBee. No internet is required.
A USB to Ethernet Adaptor can be used - you can get one here.
WorkBee Router Head vs Mafell FM 1000
The Mafell is a purpose-designed milling motor. It is intended for prolonged use.
The Mafell has a noise level of less than 71dB (A). This is significantly quieter than the WorkBee Router Head.
If you are going to use the machine for prolonged use - Choose the Mafell FM 1000
If noise is going to be a concern - Choose the Mafell FM 1000
If none of the above applies - Choose the WorkBee Router Head
What Software do I need with the WorkBee Z1+?
The WorkBee has the following software workflow: CAD > CAM > WorkBee Control.
CAD/CAM
The CAD program creates designs and the CAM program turns designs into toolpaths (G-code).
Most CAM programs have basic CAD functionality built-in.
We offer Carveco and Vectric branded software which has great functionality and ease of use. CAM Software can be added in the product configurator.

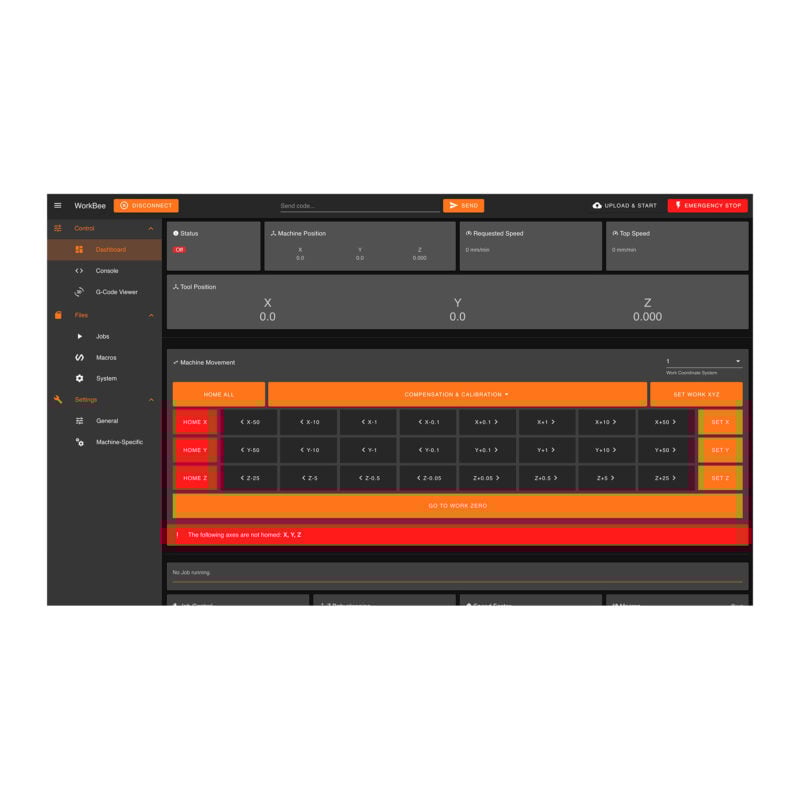

WorkBee Control
The WorkBee Control software comes built-in on the machine.
It is browser-based so can be used on your computer, tablet* or phone*.
Use WorkBee Control to send the toolpaths to the WorkBee, set work zero and move the machine around.
*tablet/phone functionality only available on the Wifi version of the WorkBee Z1+
WorkBee Z1+ System Requirements
The control software, WorkBee Control, is browser-based. Therefore the system requirements are very low, if your computer can run Google Chrome, it can run WorkBee Control.
The CAM Software will require a computer. If using Vectric software the minimum system requirements can be found here:
https://www.vectric.com/support/system-requirements
If using Carveco Maker the minimum system requirements can be found here:
I want a custom size WorkBee Z1+, is the possible?
Due to the production line nature of how we make our Ooznest Original WorkBees, we cannot offer any custom sizes outside the standard sizes you see on our Configurator.
What is the biggest piece of material I can cut on a WorkBee Z1+?
The largest WorkBee (1500x1500mm) can cut 4′ x 4′ sheets.
| Machine Size (X x Y) | Working Area (X x Y) |
| 500 x 500mm | 300 x 270mm |
| 750 x 750mm | 550 x 520mm |
| 750 x 1000mm | 550 x 770mm |
| 1000 x 1000mm | 800 x 770mm |
| 1000 x 1500mm | 800 x 1270mm |
| 1500 x 1500mm | 1300 x 1270mm |
Can you cut 8 ' x 4' sheets on the WorkBee Z1+?
The biggest sheet the WorkBee can cut is 4' x 4' sheets. For larger sheets, such as 8' x 4', you can use tiling.
This involves cutting one half of the sheet, pushing the material through, and then cutting the second half.
We have a YouTube video that explains the process: https://www.youtube.com/watch?v=JKyiKZrLPqA
What is the maximum depth of material I can cut on a WorkBee Z1+?
With the recommended 18mm spoilerboard the maximum depth of material you can cut the whole way through is 44mm.
You can cut thicker material up to a maximum of 88mm, but not the whole way through.
What materials can the WorkBee Z1+ cut?
With a WorkBee Z1+ you can cut a huge range of materials including:
- Foams
- Plastics
- Woods
- Carbon Fibre
- Aluminium
For a more detailed list please check out the Technical Tab on the product page
If you have a material not listed, get in touch and we can advise.
What is the accuracy of a WorkBee Z1+?
An impressive ± 0.1mm accuracy is achievable on all sizes of the WorkBee Z1+.
How loud is the WorkBee Z1+?
In normal operation, the machine will have a decibel level of ~70-100db.
This will be dependant on the material you are cutting, Router Head, RPM used and type of cut made.
With one of our WorkBee Enclosures you would expect a decibel reduction of ~20db if you use 6mm Perspex panels.
If you used a material like MDF as a panel material, you could expect further noise reductions.
How long does it take to assemble the WorkBee Z1+?
The WorkBee has easy-to-follow and detailed manuals which make the assembly a straightforward and enjoyable activity.
We usually say it will take around 12 hours to build completely.
Only simple tools are required (spanners, allen keys, screwdrivers etc.) - all the crimping, soldering, and commissioning the controller are all done for you!
Is there an assembly service for the WorkBee Z1+?
We're afraid we do not offer an assembly service.
The WorkBee Z1+ is a self build CNC Machine Kit, and our easy-to-follow and detailed assembly manuals make the build almost as fun as using the machine!
The guides on assembling the WorkBee Z1+ can be found on our learning portal: https://learn.ooznest.co.uk/
Building your own WorkBee yourself will equip you with knowledge of all the ins and outs of the machine – making maintenance much easier.
Only simple tools are required (spanners, allen keys, screwdrivers etc.) – all the crimping, soldering, and commissioning the controller are all done for you!
The technical support team are always able to offer assembly help and advice.
What tools do I need to assemble the WorkBee Z1+?
We would recommend purchasing a dedicated kit of tools for both the assembly and maintenance of your WorkBee CNC Machine.
You will need the following tools:
|
|
|
It is not recommended to use Power Tools such as Impact Drivers or Drills for the assembly of the WorkBee CNC Machine.
Do you offer training services?
Our instruction manuals cover assembling the machine and cutting your first project. Full training is not something we offer.
However, there are some great resources available online. A few stand-out ones are:
Instruction Manuals: https://learn.ooznest.co.uk/
Ooznest YouTube: https://www.youtube.com/ooznest
Ooznest Instagram: https://www.instagram.com/ooznest
Vectric YouTube: https://www.youtube.com/channel/UCqkhkxqPPLdtYy8ybykTlzQ
Vectric Training: https://www.vectric.com/support/tutorials/vcarve-pro
Carveco Training: https://learn.carveco.com/
CNC Cookbook: https://www.cnccookbook.com/cnc-resources/
Fusion360 YouTube Creator: https://www.youtube.com/channel/UCo29kn3d9ziFUZGZ50VKvWA
We are also available to help along your journey!
Can I speak to someone about the WorkBee Z1+?
Yes, you can arrange a call-back with one of our team to get all your burning questions answered!
Please get in contact to request a call-back.
TECHNICAL
DIMENSIONS
| Machine Size (X x Y) | Working Area (X x Y) | Recommended Spoilerboard Size (X x Y) | Recommended Workbench Size (X x Y) | Weight |
| 500 x 500mm | 270 x 270mm | 360 x 500 x 18mm | 700 x 700mm (800 x 710mm with Enclosure) | 24.8kg |
| 750 x 750mm | 520 x 520mm | 610 x 750 x 18mm | 950 x 950mm (1050 x 960mm with Enclosure) | 28.5kg |
| 750 x 1000mm | 520 x 770mm | 610 x 1000 x 18mm | 950 x 1200mm (1050 x 1210mm with Enclosure) | 30.9kg |
| 1000 x 1000mm | 770 x 770mm | 860 x 1000 x 18mm | 1200 x 1200mm (1300 x 1210mm with Enclosure) | 32.6kg |
| 1000 x 1500mm | 770 x 1270mm | 860 x 1500 x 18mm | 1200 x 1700mm | 37.8kg |
| 1500 x 1500mm | 1270 x 1270mm | 1360 x 1500 x 18mm | 1700 x 1700mm | 40.4kg |
*Weights calculated without a router head, spoilerboard and other additional extras.
| Overall Height | Maximum Cut Depth* | Maximum Z-Axis Travel** |
| 510mm (630mm with Enclosure) | 44mm | 88mm |
*Calculated with an 18mm spoilerboard. Deeper materials can be cut, but you will not be able to cut the whole way through.
**Calculated with an 18mm spoilerboard. Maximum travel if there were no obstructions from a spoilerboard or workbench is 125mm.
CUTTABLE MATERIALS
| Woods | |||||||
| Ash | Balsa Wood | Beech | Birch | Birch Plywood | Cedar | Cherry | Chestnut |
| Chipboard | Cork | Ebony | Elm | Iroko | Laminate | Lime | Mahogany |
| Maple | MDF | Melamine | Oak | Olivewood | OSB | Pine | Plywood |
| Poplar | Rose | Sapele | Spruce | Sycamore | Teak | Tulip | Valchromat |
| Walnut | Wenge | Zebrano | Ziricote | ||||
| Foams | |||||||
| Closed Cell Polyethylene | Open Cell Polyethylene | Expanded Polypropylene | Expanded Polystyrene | Foamboard | |||
| Foamex | High Density Polyurethane | Medium Density Polyurethane | High Density Urethane | Styrofoam | |||
| Plastics | |||||||
| ABS | Acetal | Cast Acrylic | Extruded Acrylic | Corian | |||
| Coroplast | Correx | Delrin | Dibond | High Density Polyethylene (HDPE) | |||
| Low Density Polyethylene (LDPE) | High Impact Polystyrene (HIPS) | Polyether Ether Ketone (PEEK) | Perspex | Polycarbonate | |||
| Polyethylene Terephthalate (PET) | Polymethyl Methacrylate (PMMA) | Polyoxymethylene (POM) | Polypropylene (PP) | Polyvinyl Chloride (PVC) | |||
| Metals | |||||||
| Aluminium* | Brass | Bronze | Copper | Gold | |||
| Lead | Silver | Tin | Zinc | ||||
*Machinable Grades Only including 1100, 2011, 3003 and 6061.
| Other | |||||||
| Rubber | Carbon Fibre | Leather | Wax | PCB | |||
MECHANICAL FRAME
| Extrusions | Plates | Nuts & Bolts |
| Black/Clear Anodised Aluminium Extrusion | 6mm Anodised Aluminium Plates | A2 Stainless Steel |
Motion System
| System | Number of Wheels | Material |
| Wheels on V-Slot Extrusion | 30 | Polycarbonate |
DRIVE SYSTEM
| System | Diameter | Material | Stepper Motors | Maximum Torque | Maximum Feedrate | Accuracy |
| Lead Screw X,Y & Z | 8mm | Stainless Steel | NEMA23 X, Y & Z | 175oz-in | 2500mm/min | ± 0.1mm |
The mechanical resolution is 0.0025mm X/Y-Axis & Z-Axis
The displayed resolution is 0.1mm X/Y-Axis 0.001mm Z-Axis
power
| Input Voltage | Input Current | Frequency | Input Power | Output Voltage | Output Current | Output Power |
| 100-240V | 3.85/1.6A | 60/50Hz | 385W | 24V | 13.34A | 320W |
Power supply is provided with either a UK/EU or US plug as chosen in the configurator.
See 'Routers' section below, for their power requirements.
