WorkBee XYZ Touch Probe
Brand:Ooznest
XYZ touch probe for the WorkBee CNC Machine. Quickly set work zero on all axes or probe a single axis, ensuring accurate and efficient machine setup.

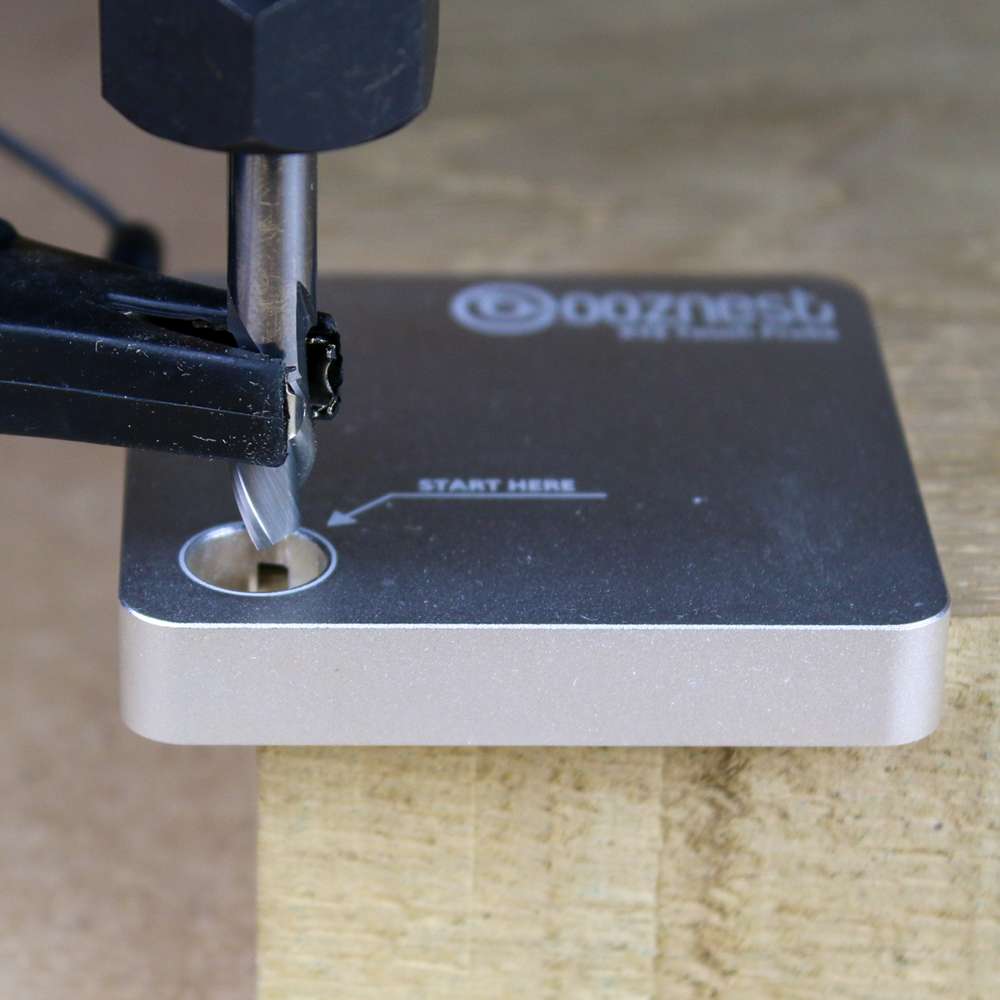

WorkBee XYZ Touch Probe allows you to quickly and accurately set your work zero in the X, Y, and Z axes using the probing features built into the WorkBee Control Interface. With plug-and-play functionality, the probe can be easily connected when required and disconnected when not in use.

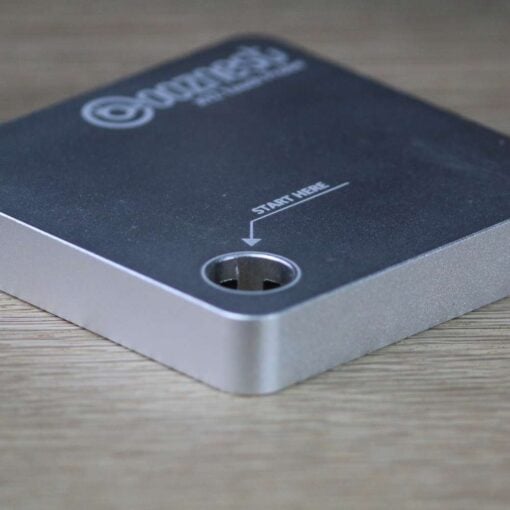

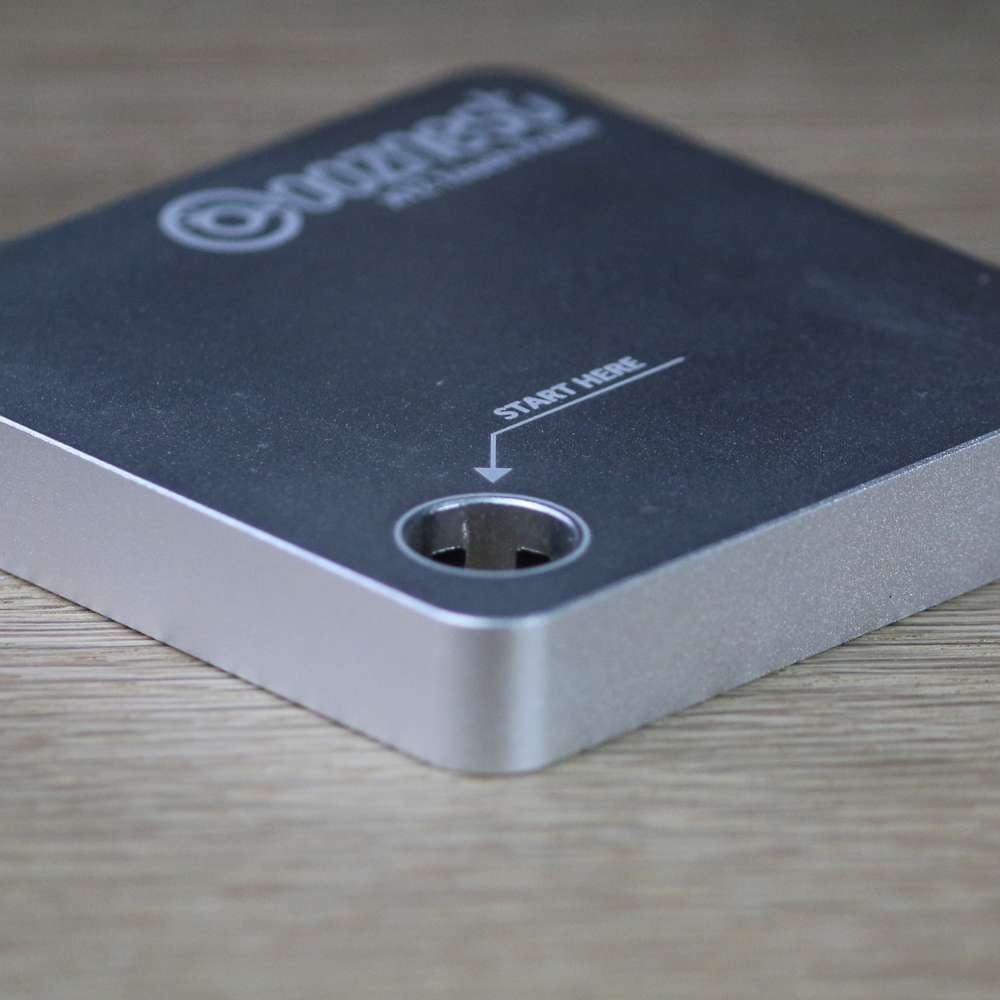

It can also be used to probe each axis individually, making it especially useful for resetting the Z-axis after a tool change. Manufactured from aluminium with a premium conductive anodised coating, the probe delivers precise and reliable contact when probing.
Key Features
- XYZ Probing: Quickly set work zero on all axes through the WorkBee Control Interface.
- Plug and Play: Simple to connect and disconnect whenever needed.
- High Precision: Aluminium body with conductive anodised coating, machined to 0.01mm tolerance.

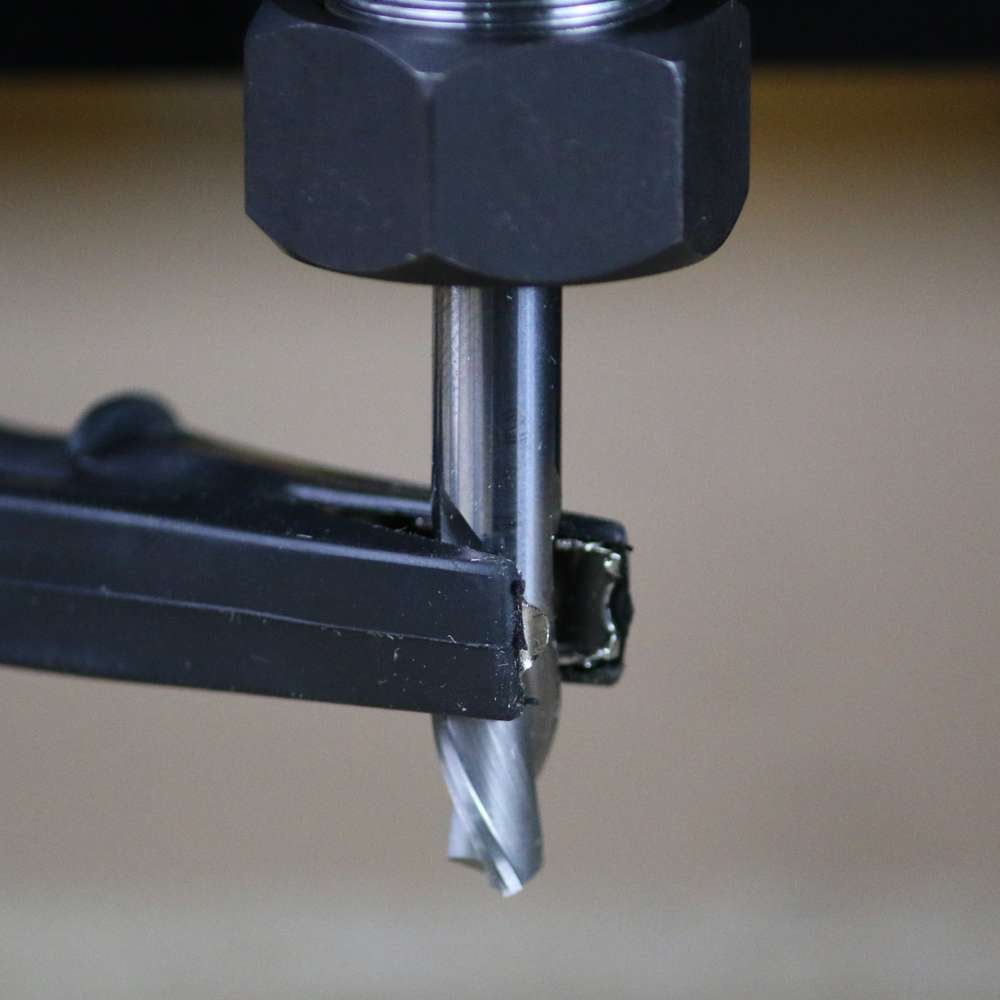

- Strong Clip Mechanism: Securely clips onto router bits up to 8mm in diameter.
Application
A Touch Probe is designed to streamline the setup process of CNC Machines. It can be used to set the work zero across all three axes at once, or individually when required, such as probing only the Z-axis after a tool change. Touch probes simplify machine setup, improve accuracy, and save time by ensuring consistent and reliable alignment before cutting begins.
Compatibility
- WorkBee Z1+
- WorkBee V2.3
- WorkBee V2.3.1
- WorkBee V2.2
- WorkBee V2.2.1
- WorkBee V2.1
- WorkBee V2.0
- WorkBee V1.0*
* Requires the controller to be upgraded to the Duet 2 Controller
| Brand | Ooznest |
|---|---|
| Stock Type | New |
| Weight (g) | 238.80 |
| Material | Aluminium |
| Surface Finish | Anodised |
| Colour | Silver |
| Length (mm) | 60 |
| Width (mm) | 60 |
| Height (mm) | 10 |
| Maximum Shank Diameter (mm) | 8 |
| For WorkBee Models | 1.0, 2.0, 2.1, 2.2, 2.2.1, 2.3, 2.3.1, Z1+ |

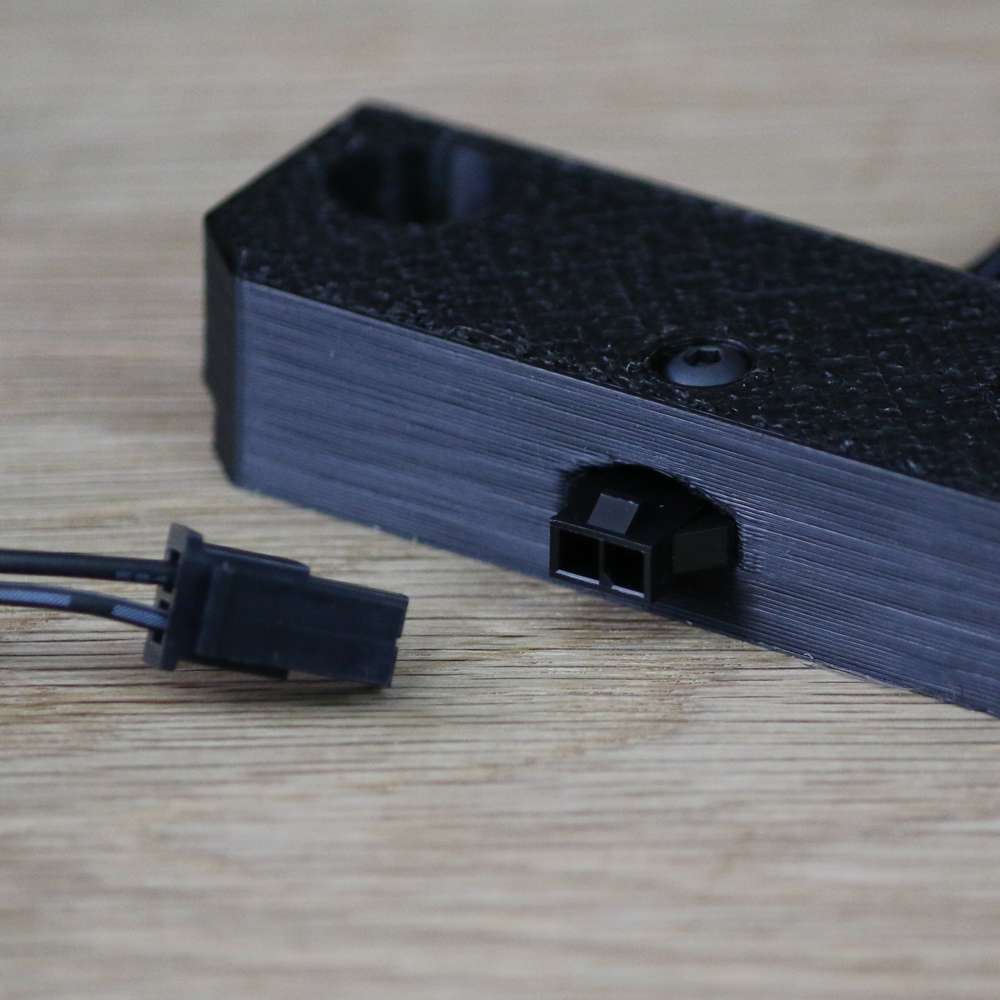

| Controller Side Connector | Molex 22-01-2035 |
| Controller Side Pinout | COM – Blank – NO |
| Contact Configuration | Normally Open |
What's Included
| Name | Quantity |
|---|---|
| WorkBee XYZ Touch Probe | 1 |
External Links
| Description | Links |
|---|---|
| Assembly Manual | Link |
