SKU: WB-R-WB-NEMA23-W-Z-1210
1 x WorkBee - Replacement - NEMA23 Stepper Motor Wire - Z-Axis - 750x750mm & 750x1000mm - 1210mm
1 x WorkBee - Replacement - NEMA23 Stepper Motor Wire - Z-Axis - 750x750mm & 750x1000mm - 1210mm
1 x WorkBee - Replacement - NEMA23 Stepper Motor Wire - Z-Axis - 750x750mm & 750x1000mm - 1210mm

Plug-and-play replacement stepper motor cable for the WorkBee CNC machine. Easy, solder-free install…

Read More
Brand: Ooznest Brand Logo

WorkBee Replacement Z-Axis 750x750mm & 750x1000mm Stepper Motor Wire (1210mm Length)

Reset Selection
Customise
There are no customisation options for this product.
Create A Bundle

There are no bundled options for this product.

QuantityUnit PriceDiscount
Selected price:1+£5.400%

£5.40 (Inc VAT)

53 in Stock
Delivery
Next Day
Click & Collect
Not Available
Returns
30 Days

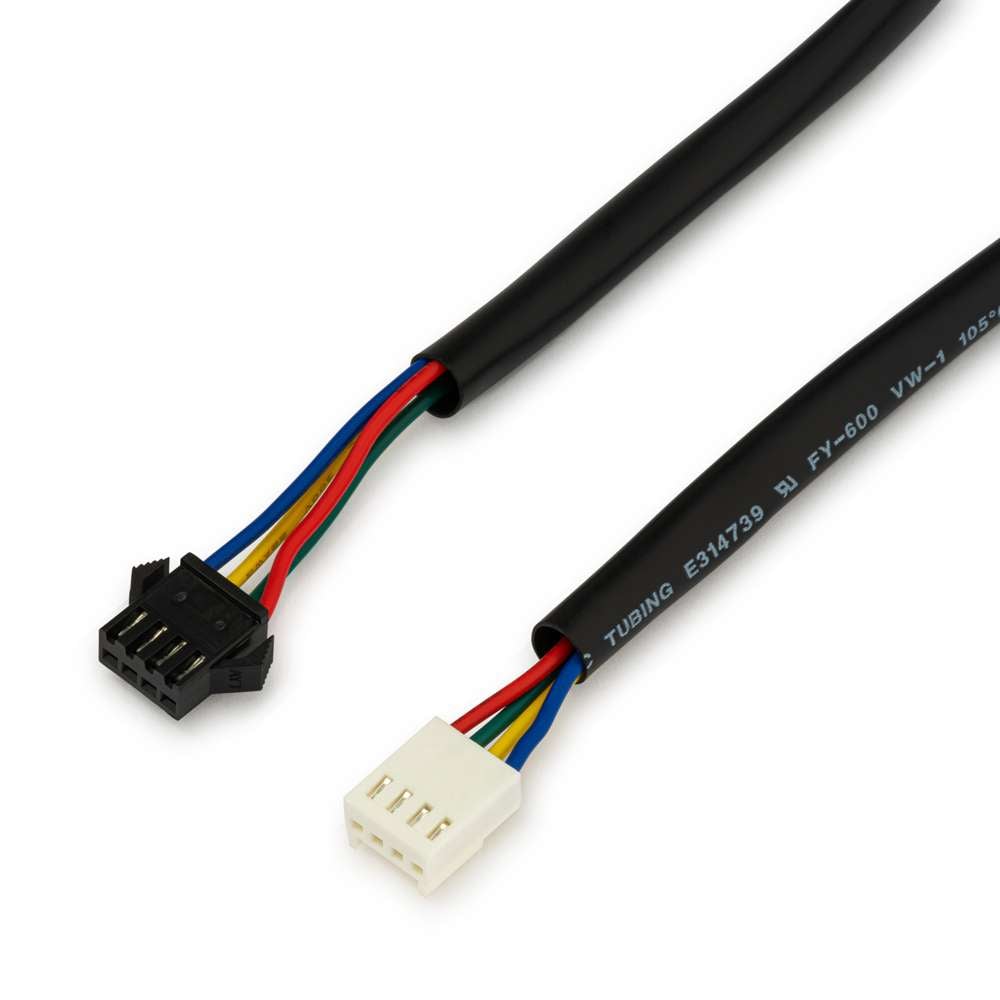

WorkBee Replacement 750x750mm & 750x1000mm Z-Axis Stepper Motor Wire (1210mm Length) is a pre-assembled, plug-and-play wire for replacing the Z-axis stepper motor cable on your WorkBee CNC machine. Designed specifically for the 750x750mm and 750x1000mm WorkBee models, this cable comes pre-wired with connectors on both ends, ensuring a quick installation with no soldering or modification required. Its length is tailored for optimal routing within your machine’s cable management system, maintaining a tidy and efficient setup.

Key Features

  • Plug-and-Play Compatibility: Pre-wired with connectors to fit both the stepper motor and controller—no soldering needed.
  • Correct Length: 1210mm cable is sized for clean installation on 750x750mm and 750x1000mm WorkBee machines.
  • Z-Axis Specific: Designed for direct replacement of the Z-axis motor wire on supported WorkBee models.
Brand

Ooznest
Stock Type

New
Weight (g)

45.10
Version

Z-Axis – 750x750mm/750x1000mm
For WorkBee Models

1.0, 2.0, 2.1, 2.2, 2.2.1, 2.3, 2.3.1, Z1+
For WorkBee Axis

Z
For WorkBee Sizes (mm)

750×750, 750×1000
Frame Size

NEMA23
Phase Wire Pairs

Red/Green, Yellow/Blue
Controller Side Connector

Molex 22-01-1042
Controller Side Pinout

A1 – A2 – B1 – B2
Motor Side Connector Type

JST SM 4
Motor Side Pinout

A1 – A2 – B1 – B2
Wire Length (mm)

1210
Wire Conductor Size (mm2)

0.34 (22AWG)
Wire Insulation Material

PVC
Wire Jacket Material

PVC
Limit Switch Type

Mechanical
Actuating Type

Lever
Contact Configuration

Normally Closed
Maximum Voltage (V)

250
Maximum Current (A)

3
WorkBee Replacement Z-Axis 750x750mm & 750x1000mm Stepper Motor Wire (1210mm Length) x1
Resources Page
Assembly Guide

Delivery

  • Free UK Mainland Shipping: Orders over £120 Incl. VAT qualify for free next day shipping.
  • Same Day Dispatch: Orders placed before 13:00 are dispatched the same day.
  • Worldwide Shipping: Available for international orders.

For more details, visit Delivery Information

Returns

“

  • 30-Day Return: Items can be returned within 30 days of delivery.
  • Condition: Must be in original packaging and ‘as-new’ condition.
  • Refunds: Issued after inspection

There are no reviews yet.

Description

WorkBee Replacement 750x750mm & 750x1000mm Z-Axis Stepper Motor Wire (1210mm Length) is a pre-assembled, plug-and-play wire for replacing the Z-axis stepper motor cable on your WorkBee CNC machine. Designed specifically for the 750x750mm and 750x1000mm WorkBee models, this cable comes pre-wired with connectors on both ends, ensuring a quick installation with no soldering or modification required. Its length is tailored for optimal routing within your machine’s cable management system, maintaining a tidy and efficient setup.

Key Features

  • Plug-and-Play Compatibility: Pre-wired with connectors to fit both the stepper motor and controller—no soldering needed.
  • Correct Length: 1210mm cable is sized for clean installation on 750x750mm and 750x1000mm WorkBee machines.
  • Z-Axis Specific: Designed for direct replacement of the Z-axis motor wire on supported WorkBee models.
Specifications
Brand

Ooznest
Stock Type

New
Weight (g)

45.10
Version

Z-Axis – 750x750mm/750x1000mm
For WorkBee Models

1.0, 2.0, 2.1, 2.2, 2.2.1, 2.3, 2.3.1, Z1+
For WorkBee Axis

Z
For WorkBee Sizes (mm)

750×750, 750×1000
Frame Size

NEMA23
Phase Wire Pairs

Red/Green, Yellow/Blue
Controller Side Connector

Molex 22-01-1042
Controller Side Pinout

A1 – A2 – B1 – B2
Motor Side Connector Type

JST SM 4
Motor Side Pinout

A1 – A2 – B1 – B2
Wire Length (mm)

1210
Wire Conductor Size (mm2)

0.34 (22AWG)
Wire Insulation Material

PVC
Wire Jacket Material

PVC
Limit Switch Type

Mechanical
Actuating Type

Lever
Contact Configuration

Normally Closed
Maximum Voltage (V)

250
Maximum Current (A)

3
What’s Included
WorkBee Replacement Z-Axis 750x750mm & 750x1000mm Stepper Motor Wire (1210mm Length) x1
Resources
Resources Page
Assembly Guide
Delivery & Returns

Delivery

  • Free UK Mainland Shipping: Orders over £120 Incl. VAT qualify for free next day shipping.
  • Same Day Dispatch: Orders placed before 13:00 are dispatched the same day.
  • Worldwide Shipping: Available for international orders.

For more details, visit Delivery Information

Returns

“

  • 30-Day Return: Items can be returned within 30 days of delivery.
  • Condition: Must be in original packaging and ‘as-new’ condition.
  • Refunds: Issued after inspection
Reviews (0)

There are no reviews yet.
