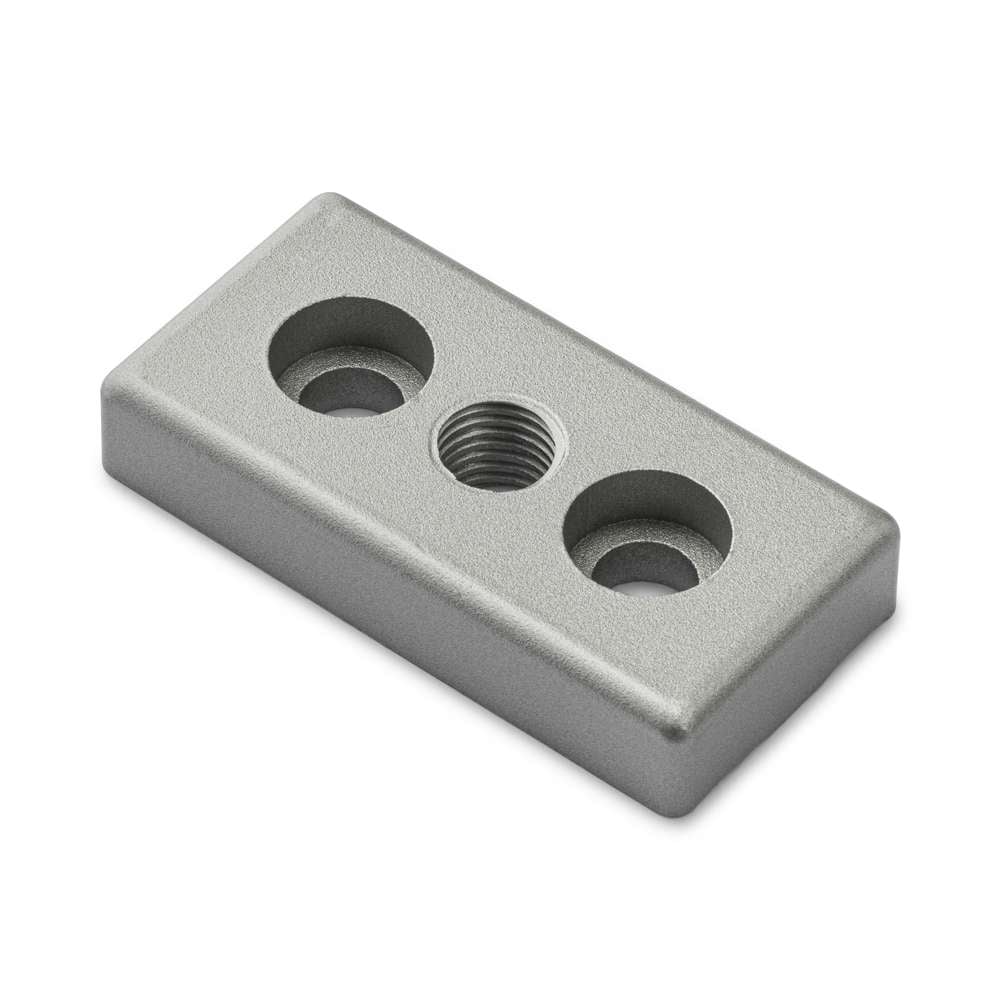

M12 45×90 45 Series Foot Plate

M12 45×90 45 Series Foot Plates are designed to mount directly onto the end of aluminium extrusion profiles, providing a central threaded hole for attaching levelling feet, castors, or other adjustable supports. Made from durable aluminium, these plates offer a reliable base for mobility and stability in various aluminium extrusion based assemblies. They are ideal for workstations, machine frames, and modular structures where adjustable height or mobility is required.

Key Features

• Easy Installation: Mounts directly to threaded holes on the end of the aluminium extrusion using standard bolts for quick, secure attachment.
• Threaded Central Hole: Provides a secure mounting point for levelling feet.
• Aluminium Construction: Made from aluminium for strength, corrosion resistance, and long-term performance.

Application

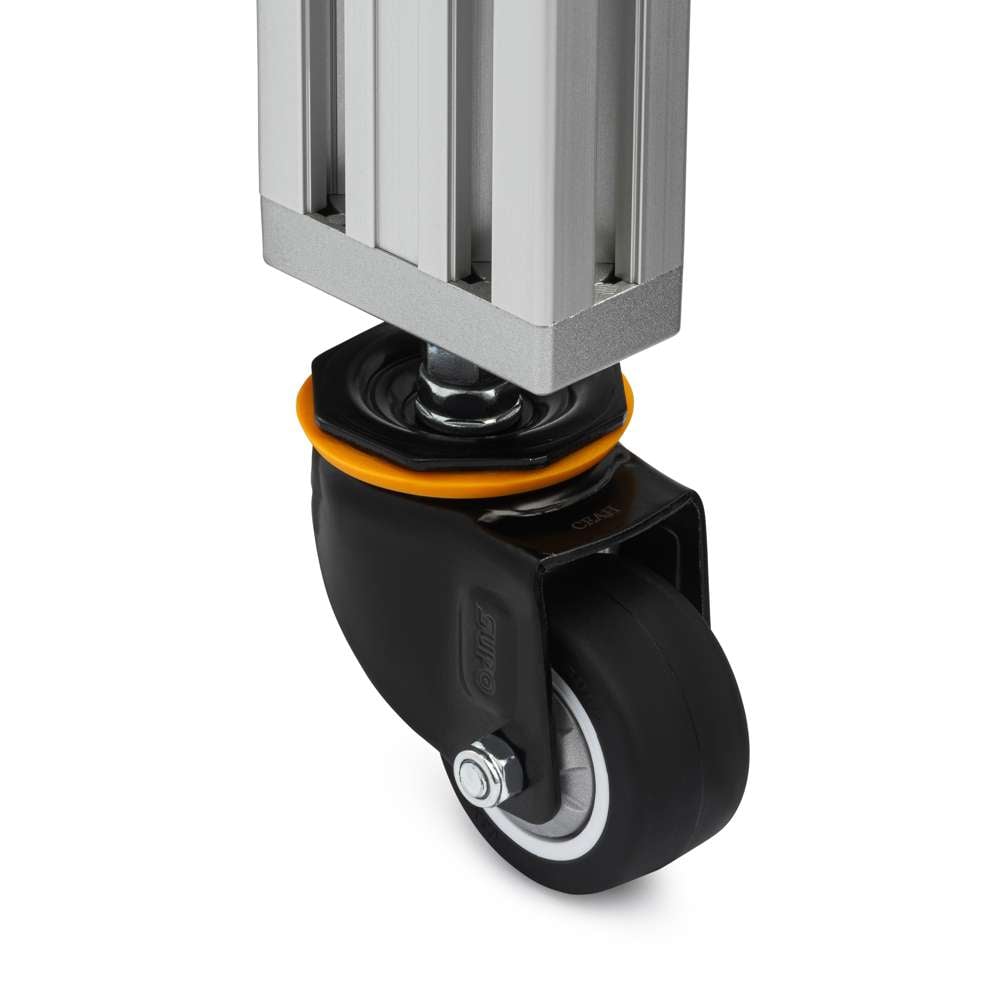

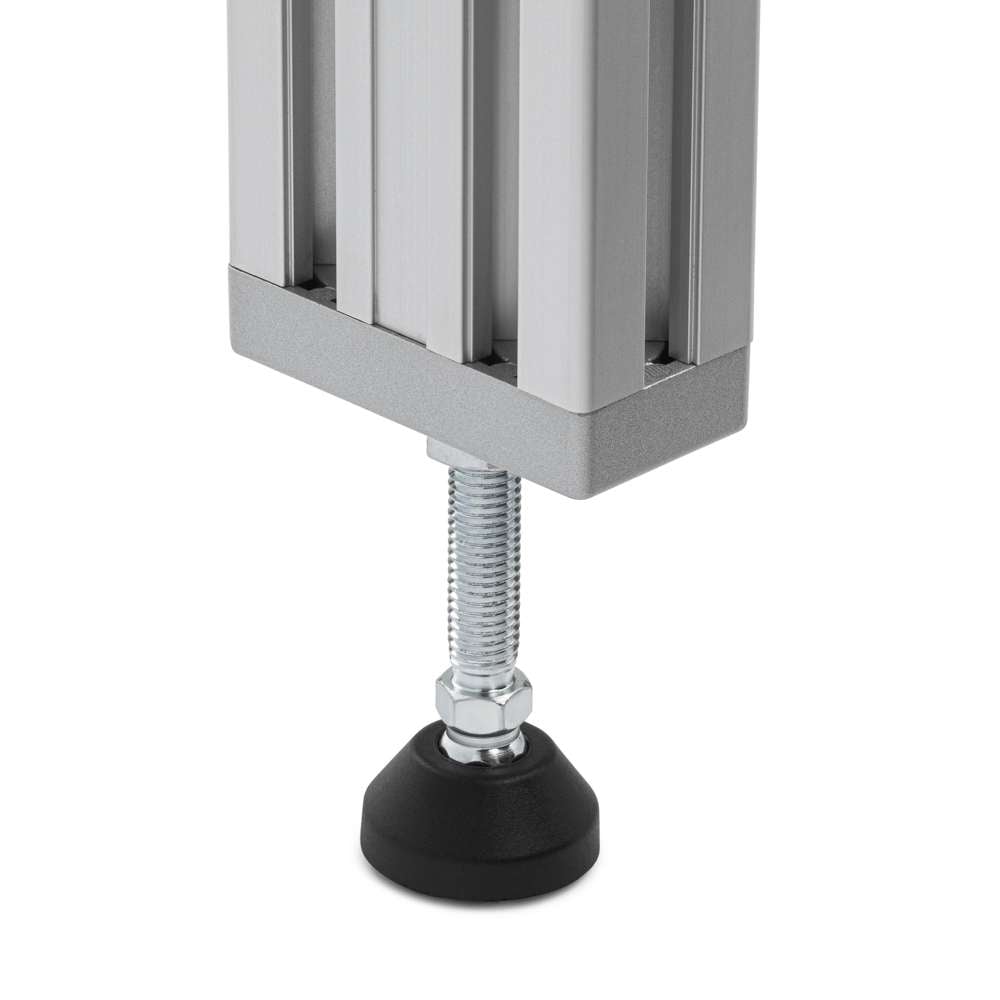

Foot Plates are ideal for supporting aluminium extrusion assemblies that require adjustable height or mobility. Whether you are mounting levelling feet for stability on uneven surfaces or castors for smooth movement, these plates provide a strong and reliable base. Perfect for workbenches, carts, frames, or equipment bases, they offer functional versatility without compromising strength.
