Extra Small V-Slot Gantry Plate (50x50mm)
Brand:Ooznest
V-Slot Gantry Plate for smooth, precise linear motion. Compatible with T/V-Slot extrusions, Ideal for CNCs, actuators and other motion applications.

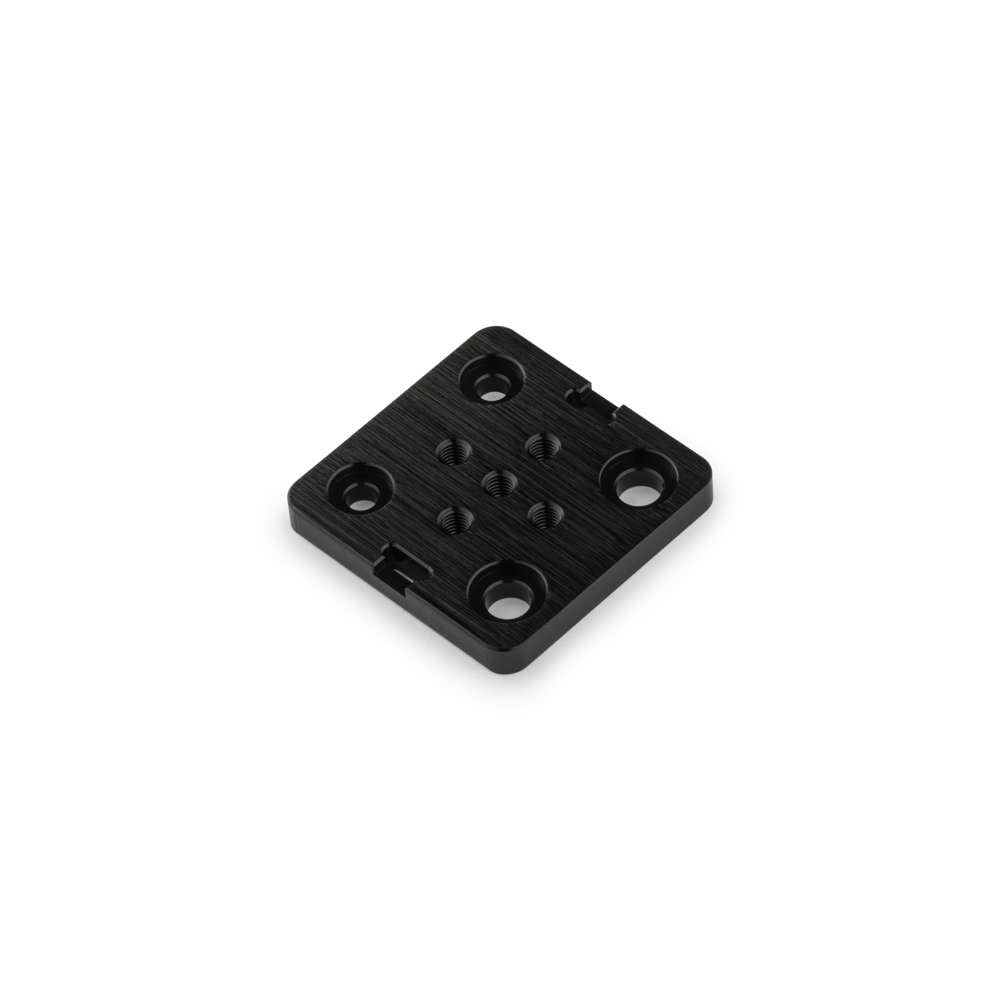

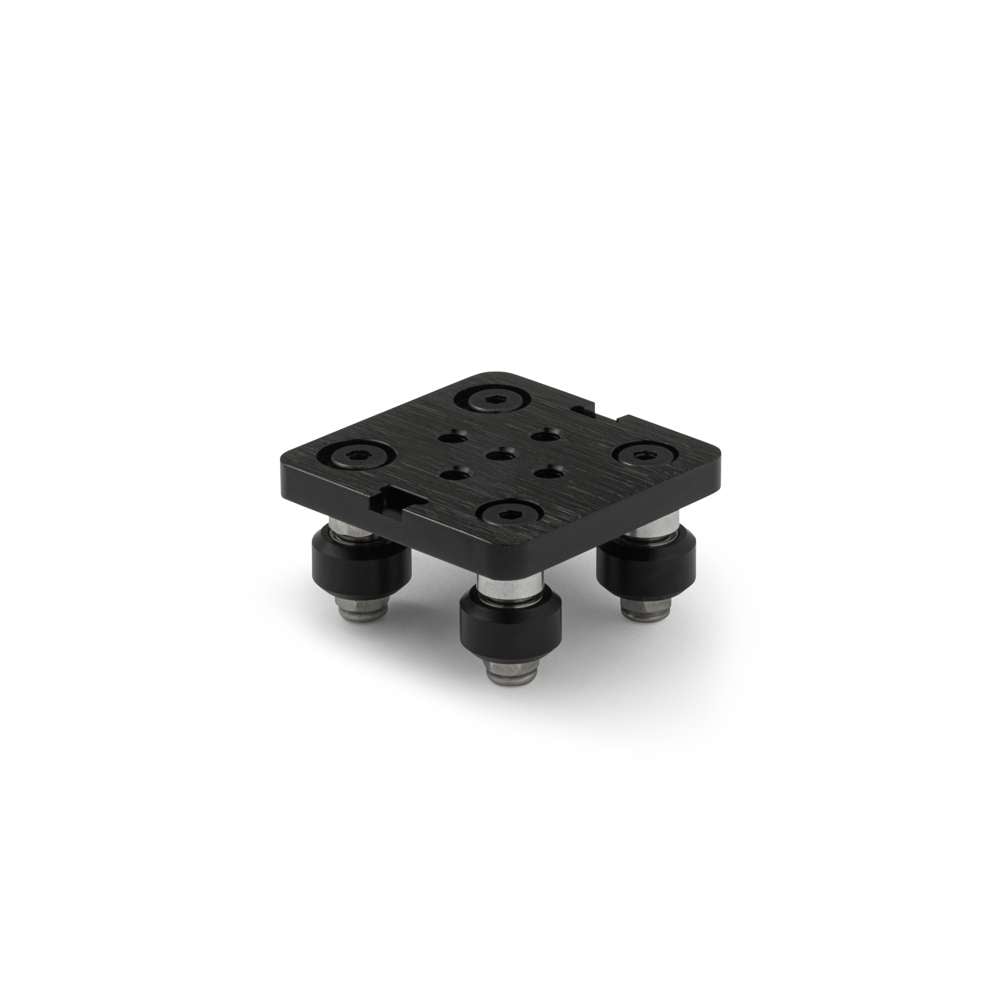

Extra Small V-Slot Gantry Plate (50x50mm) is a versatile and durable platform for building smooth, precise linear motion systems using T/V-Slot Aluminium Extrusions. Made from high-strength aluminium and finished with a black anodised coating, this plate accepts Mini V-Slot Wheels and provides a stable base that glides effortlessly along the extrusion profile. Holes on one side are designed to accept eccentric spacers, enabling preloading of the wheels for tight, wobble-free tracking.
This plate is compatible with the faces of all T/V-Slot extrusions up to 20mm wide. It features integrated slots for timing belt clamping and multiple mounting holes allow for flexible attachment of tools, motors, brackets, or custom components.
Key Features
- Mini V-Slot Wheel Compatible: Designed to accept Mini V-Slot Wheels for smooth, accurate linear motion.
- Eccentric Spacer Support: Holes on one side accept eccentric spacers for adjustable wheel preloading.
- Wide Compatibility: Works with all T/V-Slot extrusions faces 20mm wide.
- Timing Belt Ready: Includes slots for belt clamping.
- Mounting Flexibility: Features a range of mounting holes to support motors, brackets, and custom components.
Application

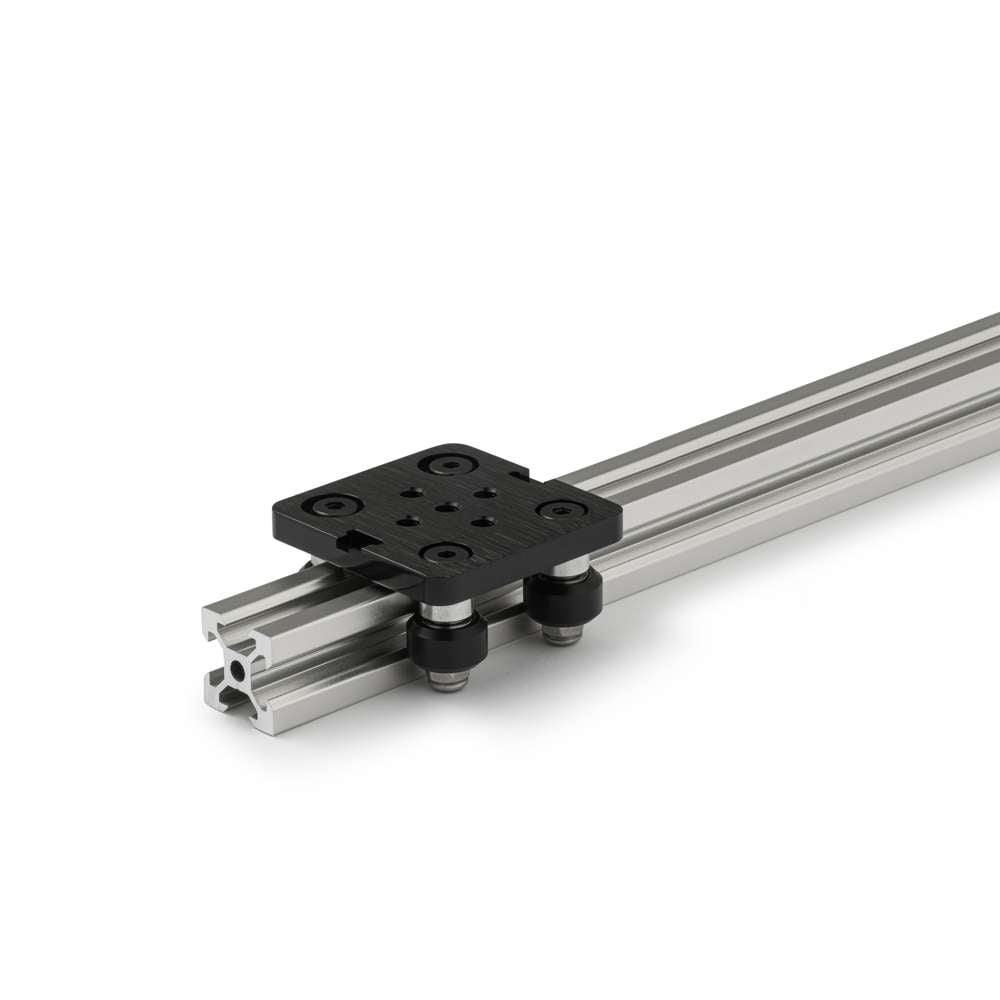

V-Slot Gantry Plates are ideal for creating moving platforms in CNC machines, 3D printers, linear actuators, laser cutters, and other linear motion assemblies. Using timing belts this plate provides a stable, adjustable, and precise base. It is a flexible and reliable choice for a wide range of mechanical projects.
| Brand | Ooznest |
|---|---|
| Stock Type | New |
| Weight (g) | 36.00 |
| Profile Series | 20 Series |
| Material | 6063 T-5 Aluminium |
| Surface Finish | Anodised |
| Colour | Black |

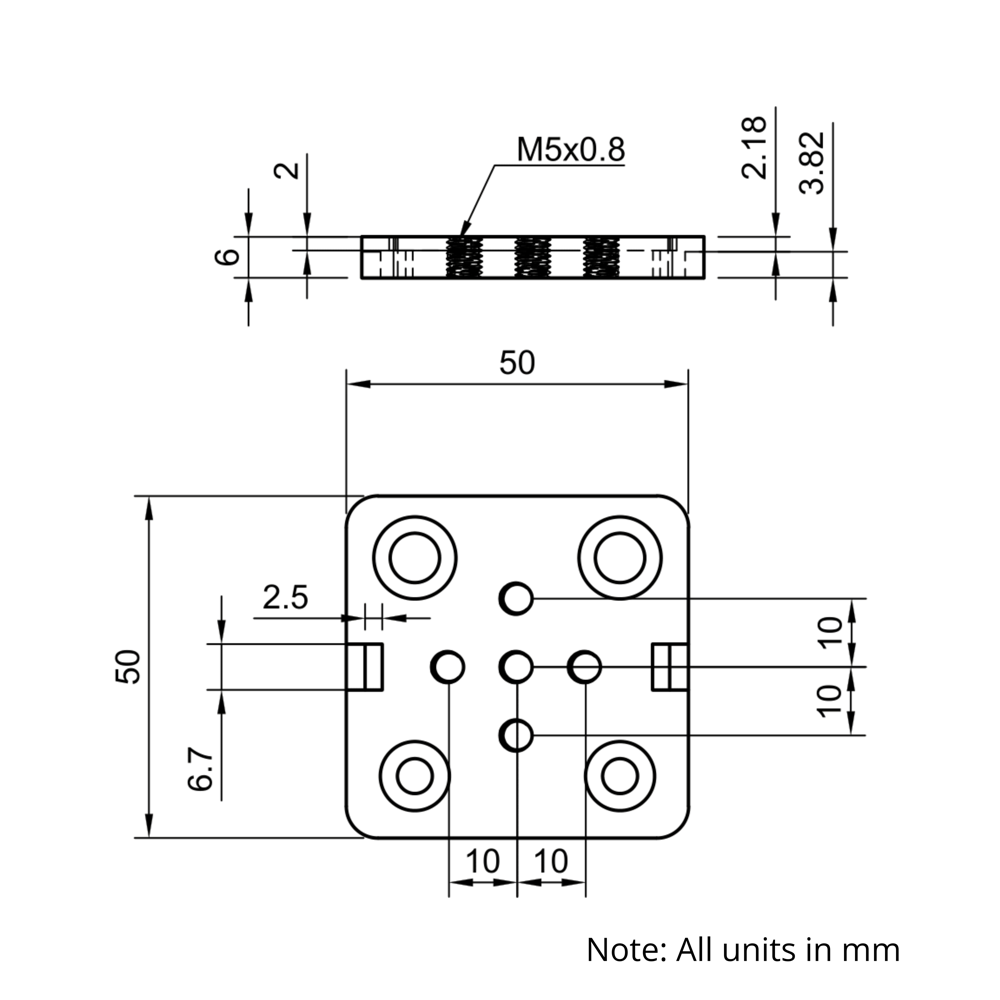

| Thickness (mm) | 6 |
| Version | Extra Small (50x50mm) |
| For Use With Wheel Size | Mini |

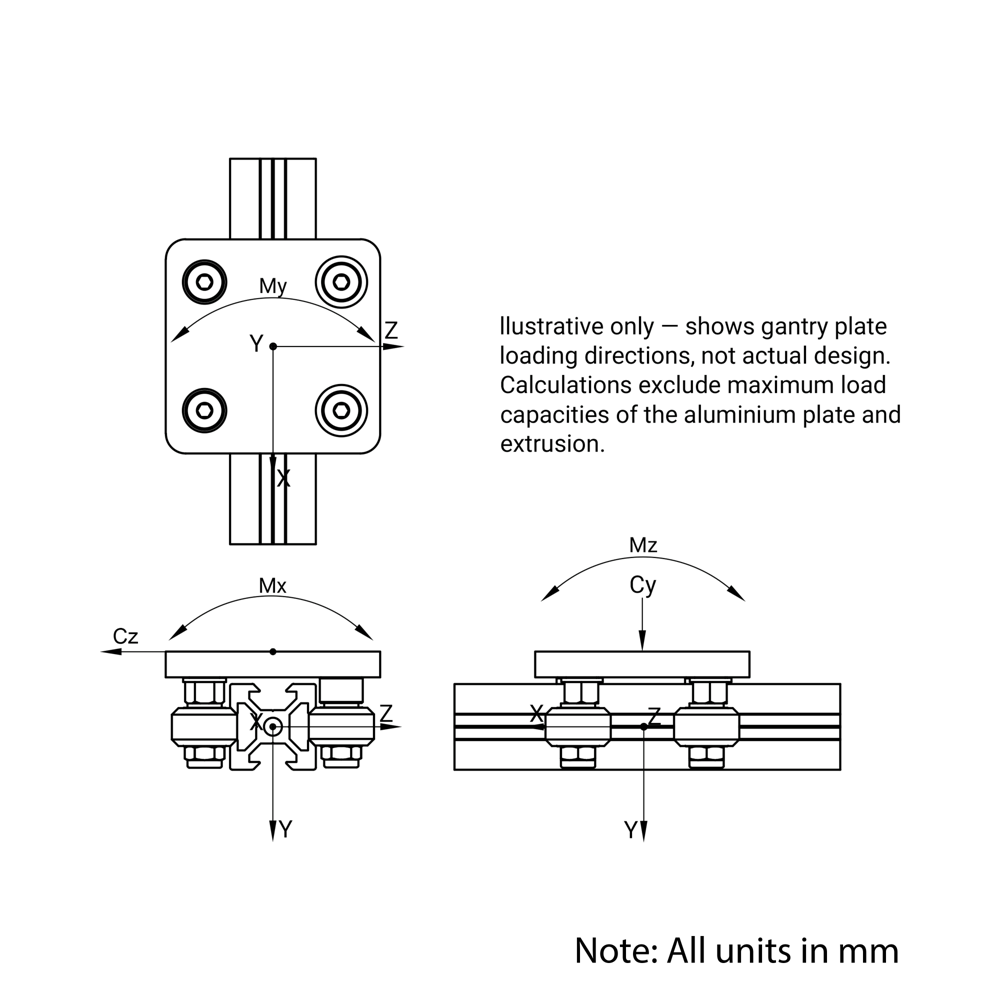

| Cy Static Load Rating (N) | 35.59 |
| Cy Dynamic Load Rating (N) | 97.27 |
| Cz Stat Load 20mm V-Slot (N) | 131.900 |
| Cz Dyna Load 20mm V-Slot (N) | 357.850 |
| Mx Stat Mom 20mm V-Slot (Nm) | 2.308 |
| My Static Moment Rating (Nm) | 2.669 |
| Mz Static Moment Rating (Nm) | 2.171 |
What's Included
| Name | Quantity |
|---|---|
| Extra Small V-Slot Gantry Plate (50x50mm) | 1 |
