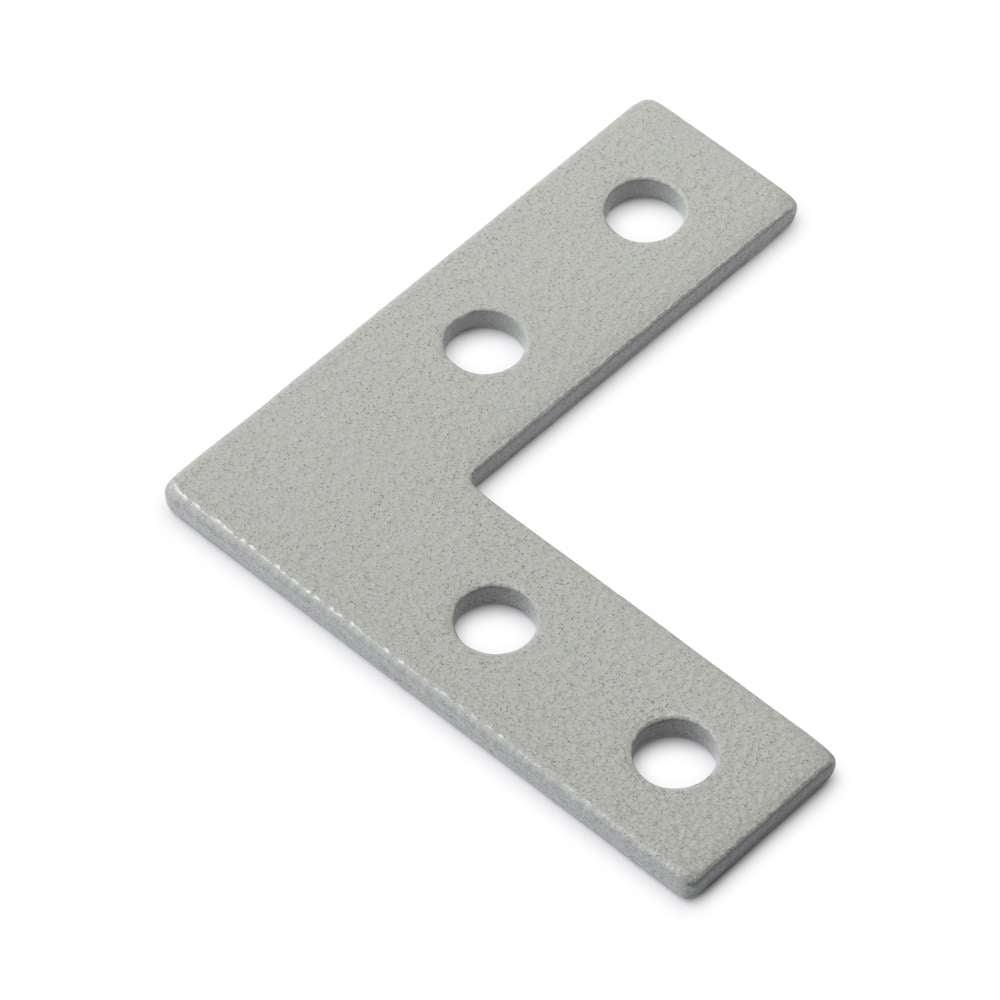

Single Slot 20 Series 90 Degree Plate Connector (Steel)
Brand:Ooznest
Plate Connectors offer an adjustable and strong solution for joining extrusions at 90°, ideal for structural assemblies.
Steel Single Slot 20 Series 90 Degree Plate Connectors provide a strong, stable, and aesthetically refined solution for creating secure 90-degree joints in aluminium extrusion assemblies. Designed for high shear, moment, and torsional resistance depending on configuration, these connectors offer high structural integrity of frameworks without requiring any machining. These brackets are ideal for machine enclosures, industrial workstations, and other demanding structural applications.
Pros and Cons
Plate Connectors for adjustable and strong aluminium extrusion assemblies.
| Pros | Cons |
|---|---|
|
|
Application

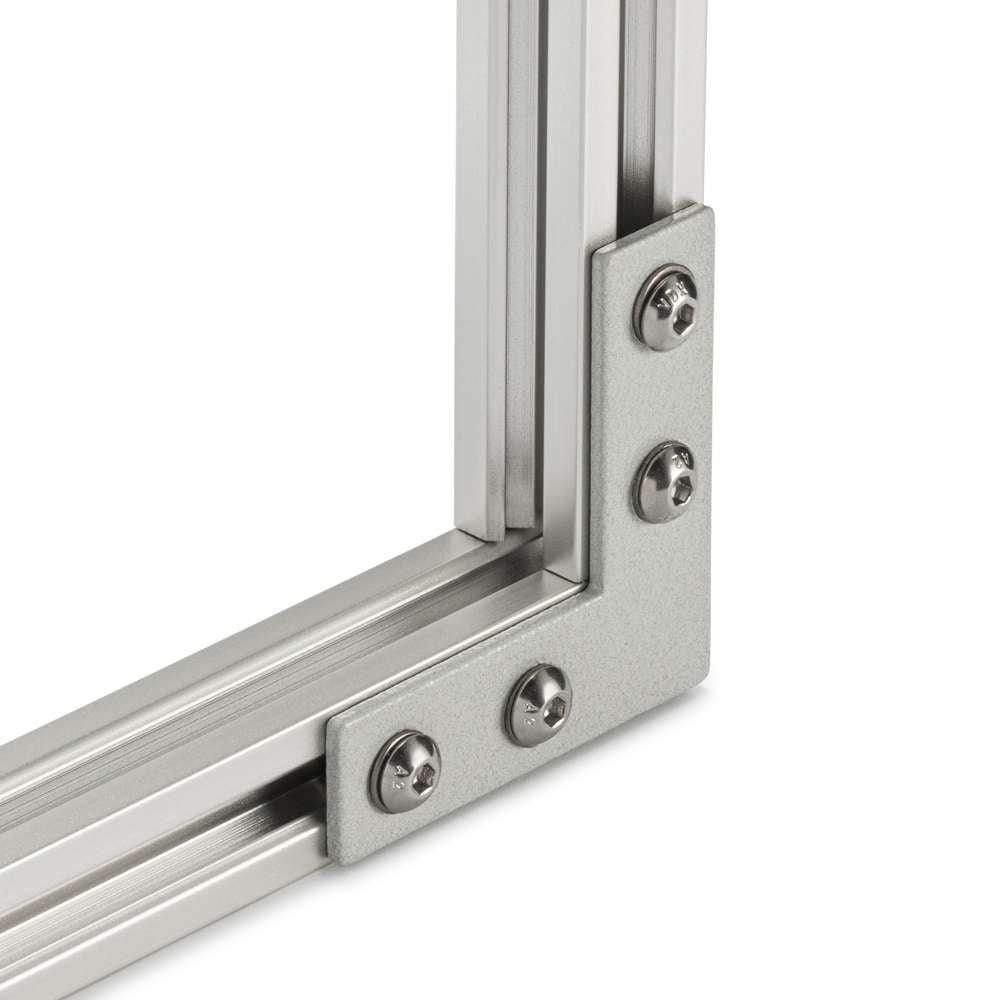

Plate Connectors are designed for use with 20 Series T-Slot Aluminium Extrusions to create strong and stable 90-degree connections. These plates offer excellent shear, moment, and torsional resistance, making them suitable for high-strength structural frameworks, machine enclosures, and modular assemblies. Their adaptability ensures a reliable connection in various configurations while maintaining ease of assembly and long-term durability. Unlike other corner brackets, they leave the internal extrusion slots completely clear, allowing for unrestricted mounting of panels, accessories, or additional structural components.
| Brand | Ooznest |
|---|---|
| Stock Type | New |
| Weight (g) | 32.80 |
| Profile Series | 20 Series |
| Material | Carbon Steel |
| Surface Finish | Painted |
| Colour | Grey |

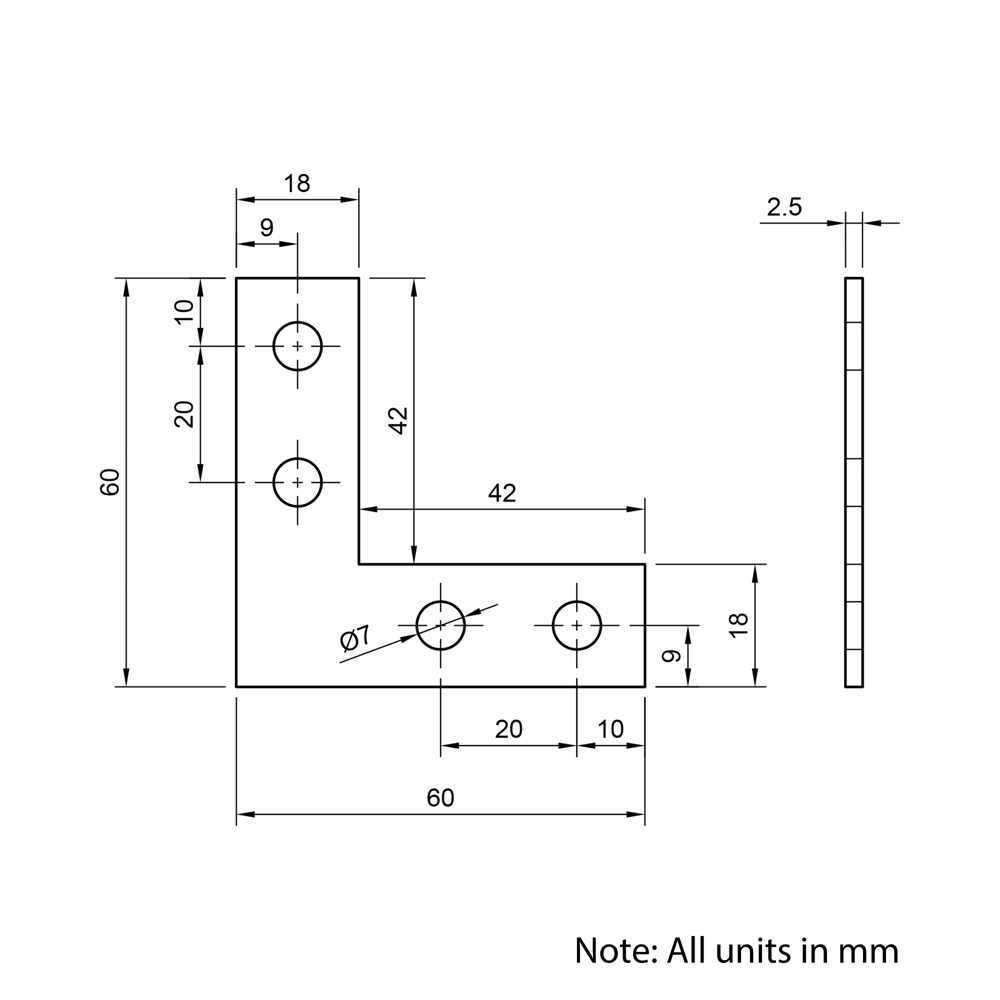

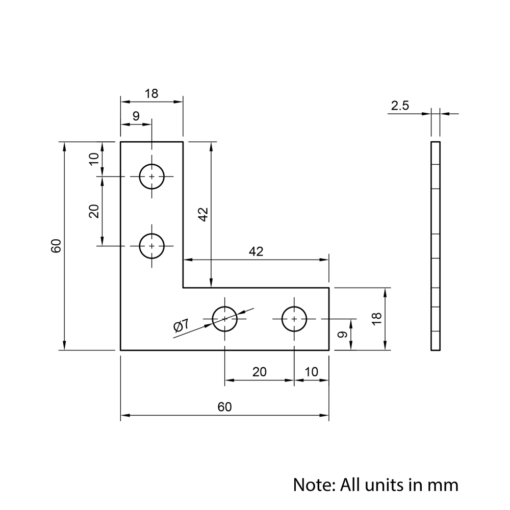

| Thickness (mm) | 2.5 |
| Number Of Fixing Points | 4 |
| Fixings Spacing (mm) | 20 |
| Number Of Ways | 2 |
| Connecting Angle (°) | 90 |
| Version | Single Slot |
What's Included
| Name | Quantity |
|---|---|
| Single Slot 20 Series 90 Degree Plate Connector (Steel) | 1 |
