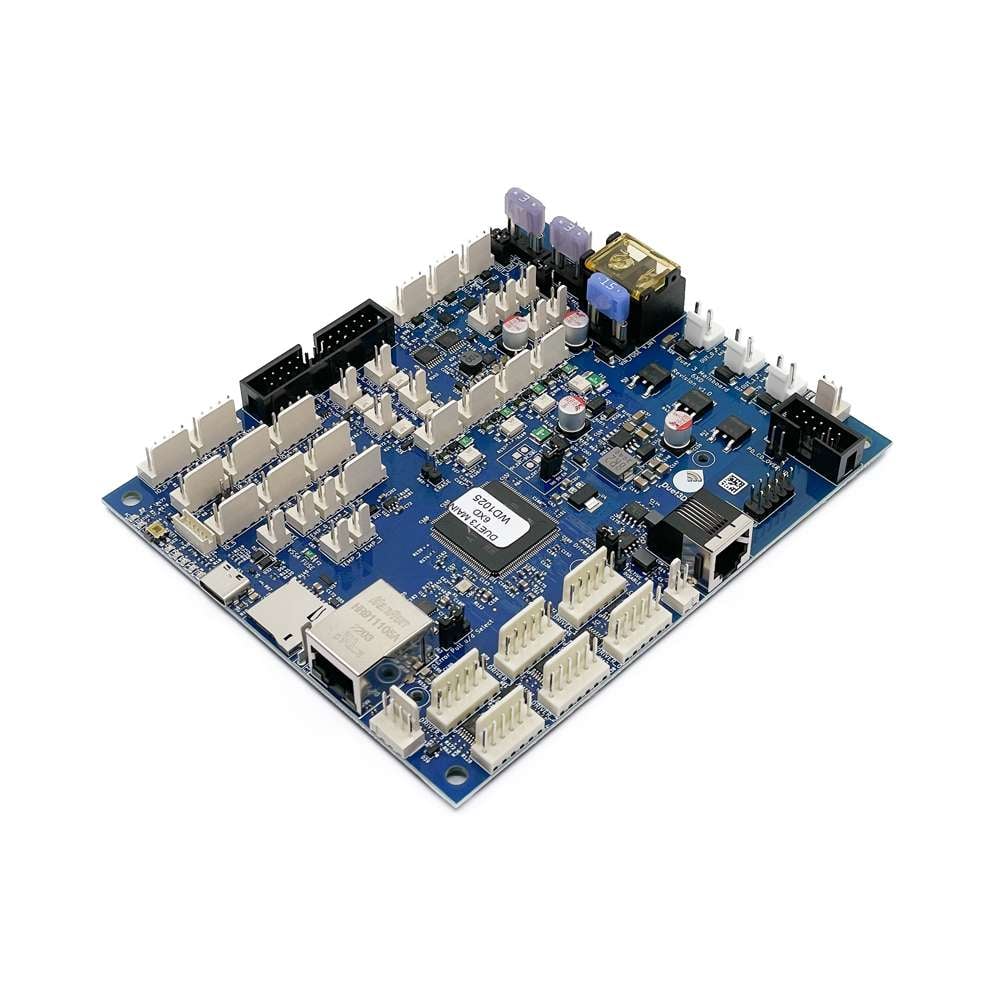

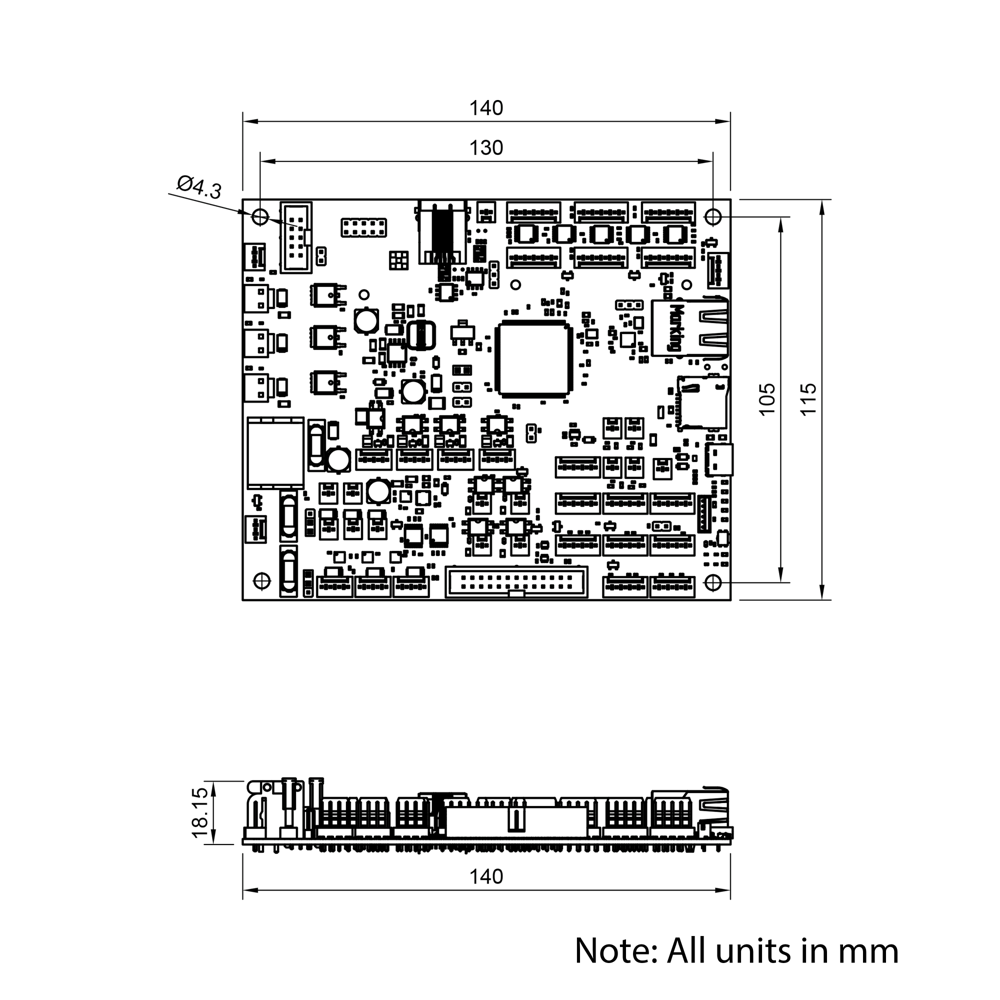

Duet 3 Mainboard 6XD
Brand:Duet3D
Designed for machines which require external stepper motor drivers or servo drivers, the Duet 3 Mainboard 6XD is a powerful, fully-featured controller. It has similar inputs and outputs to the Duet 3 Mainboard 6HC and supports up to 6 external stepper/servo motors. The Duet 3 Mainboard 6XD does not have any built-in stepper drivers.
The Duet 3 Mainboard 6XD also has opto-isolated signal outputs to integrate with a wide range of industrial control systems.
The Duet 3 range of products aims to provide maximum flexibility through expansion boards, tool boards and expansion modules. This modular expansion is possible because of the innovative RepRapFirmware 3 running on the Duet 3 Mainboard 6XD.
If you are looking for a board with built-in stepper drivers, see the Duet 3 Mainboard 6HC here https://ooznest.co.uk/product/duet-3-mainboard-6hc/
Features
| Processor | 32bit Atmel ATSAME70 ARM Cortex-M7 microcontroller running at up to 300MHz |
| Expansion | 1 x CAN-FD BUS for connecting expansion boards and tools. |
| Connectivity | 1 x Dedicated SPI Bus to Single Board Computer (SBC). Ethernet network connection available. 1 x USB-C connection for initial setup. |
| External Driver Support | 6 x External driver connections with step/direction/enable outputs, and fault inputs. Signalling is 5V single-ended. |
| High current outputs | 3 x High current outputs up to 6A each |
| Medium current outputs | 6 x Medium current outputs for PWM fans and similar devices. 3 support 4-wire fans with PWM and tacho wires. Arranged in two banks, each bank is individually fused with voltage selectable between VIN / 12V |
| Temperature Measurement | 4 x Thermistor/PT1000 inputs. Support for two temperature daughterboards for up to 4 x PT100 or Thermocouple sensors. |
| Inputs/Outputs | 9 x I/O connectors 3.3V output signal level and 30V-tolerant inputs. 4 support opto-isolated connections. |
| Power monitoring | VIN voltage monitoring allows state save on power failure. |
| Firmware | RepRapFirmware 3.4 or later – Supports all common machine geometries, easily configurable for any specific machine requirements. |
What you will be getting
- Duet 3 Mainboard 6XD
- Connector Pack
- SD Card
Please note a USB C Cable is not included.
Documentation
All documentation for Duet3D products can be found on their documentation portal: https://docs.duet3d.com/Duet3D_hardware/Duet_3_family/Duet_3_Mainboard_6XD_Hardware_Overview
