SKU: WB-R-WB-LS-Y-1785MM
(2)
1 x WorkBee - Replacement - Micro Lever Limit Switch - Y-Axis - 750x1000mm & 1000x1000mm - 1785mm
1 x WorkBee - Replacement - Micro Lever Limit Switch - Y-Axis - 750x1000mm & 1000x1000mm - 1785mm
1 x WorkBee - Replacement - Micro Lever Limit Switch - Y-Axis - 750x1000mm & 1000x1000mm - 1785mm

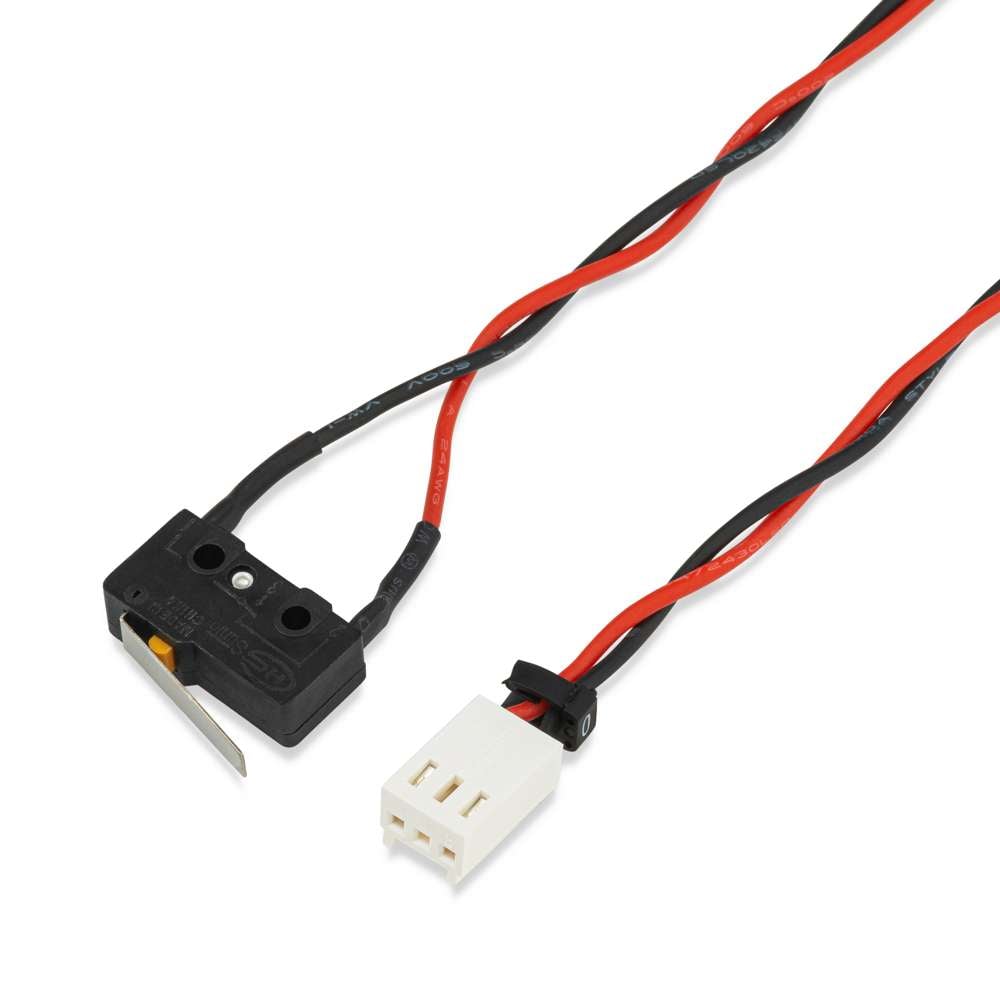

Plug-and-play replacement Micro Lever Limit Switch for the WorkBee CNC machine. Easy, solder-free in…

Read More
Brand: Ooznest Brand Logo
(2)

WorkBee Replacement Y-Axis 750x1000mm & 1000x1000mm Micro Lever Limit Switch (1785mm Length)

Reset Selection
Customise
There are no customisation options for this product.
Create A Bundle

There are no bundled options for this product.

QuantityUnit PriceDiscount
Selected price:1+£3.600%

£3.60 (Inc VAT)

87 in Stock
Delivery
Next Day
Click & Collect
Not Available
Returns
30 Days

WorkBee Replacement 750x1000mm & 1000x1000mm Y-Axis Micro Lever Limit Switch (1785mm Length) is a pre-assembled plug-and-play Micro Lever Limit Switch for replacing the Z-Axis Micro Lever Limit Switch on your WorkBee CNC machine. Designed specifically for the 750x1000mm and 1000x1000mm WorkBee models, this cable comes pre-wired with a Micro Lever Limit Switch on one end and a controller connector on the other, ensuring a quick installation with no soldering or modification required. Its length is tailored for optimal routing within your machine’s cable management system, maintaining a tidy and efficient setup.

Key Features

  • Plug-and-Play Compatibility: Pre-wired with a Micro Lever Limit Switch on one end and a controller connector on the other, no soldering needed.
  • Correct Length: 1785mm cable is sized for clean installation on 750x1000mm and 1000x1000mm WorkBee machines.
  • Y-Axis Specific: Designed for direct replacement of the Y-axis Micro Lever Limit Switch on the WorkBee CNC Machine.
Brand

Ooznest
Stock Type

New
Weight (g)

17.60
Version

Y-Axis – 750x1000mm/1000x1000mm
For WorkBee Models

1.0, 2.0, 2.1, 2.2, 2.2.1, 2.3, 2.3.1, Z1+
For WorkBee Axis

Y
For WorkBee Sizes (mm)

750×1000, 1000×1000
Controller Side Connector

Molex 22-01-1032
Controller Side Pinout

COM – Blank – NC
Wire Length (mm)

1785
Wire Conductor Size (mm2)

0.25 (24AWG)
Wire Insulation Material

Silicone
Limit Switch Type

Mechanical
Actuating Type

Lever
Contact Configuration

Normally Closed
Maximum Voltage (V)

250
Maximum Current (A)

3
WorkBee Replacement Y-Axis 750x1000mm & 1000x1000mm Micro Lever Limit Switch (1785mm Length) x1
Resources Page
Assembly Guide

Delivery

  • Free UK Mainland Shipping: Orders over £120 Incl. VAT qualify for free next day shipping.
  • Same Day Dispatch: Orders placed before 13:00 are dispatched the same day.
  • Worldwide Shipping: Available for international orders.

For more details, visit Delivery Information

Returns

“

  • 30-Day Return: Items can be returned within 30 days of delivery.
  • Condition: Must be in original packaging and ‘as-new’ condition.
  • Refunds: Issued after inspection
5.0
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0

  1. Mark

    Excellent service as always.

    3 years ago

  2. Sebastien ARTUSSE

    Do the job

    5 years ago
Description

WorkBee Replacement 750x1000mm & 1000x1000mm Y-Axis Micro Lever Limit Switch (1785mm Length) is a pre-assembled plug-and-play Micro Lever Limit Switch for replacing the Z-Axis Micro Lever Limit Switch on your WorkBee CNC machine. Designed specifically for the 750x1000mm and 1000x1000mm WorkBee models, this cable comes pre-wired with a Micro Lever Limit Switch on one end and a controller connector on the other, ensuring a quick installation with no soldering or modification required. Its length is tailored for optimal routing within your machine’s cable management system, maintaining a tidy and efficient setup.

Key Features

  • Plug-and-Play Compatibility: Pre-wired with a Micro Lever Limit Switch on one end and a controller connector on the other, no soldering needed.
  • Correct Length: 1785mm cable is sized for clean installation on 750x1000mm and 1000x1000mm WorkBee machines.
  • Y-Axis Specific: Designed for direct replacement of the Y-axis Micro Lever Limit Switch on the WorkBee CNC Machine.
Specifications
Brand

Ooznest
Stock Type

New
Weight (g)

17.60
Version

Y-Axis – 750x1000mm/1000x1000mm
For WorkBee Models

1.0, 2.0, 2.1, 2.2, 2.2.1, 2.3, 2.3.1, Z1+
For WorkBee Axis

Y
For WorkBee Sizes (mm)

750×1000, 1000×1000
Controller Side Connector

Molex 22-01-1032
Controller Side Pinout

COM – Blank – NC
Wire Length (mm)

1785
Wire Conductor Size (mm2)

0.25 (24AWG)
Wire Insulation Material

Silicone
Limit Switch Type

Mechanical
Actuating Type

Lever
Contact Configuration

Normally Closed
Maximum Voltage (V)

250
Maximum Current (A)

3
What’s Included
WorkBee Replacement Y-Axis 750x1000mm & 1000x1000mm Micro Lever Limit Switch (1785mm Length) x1
