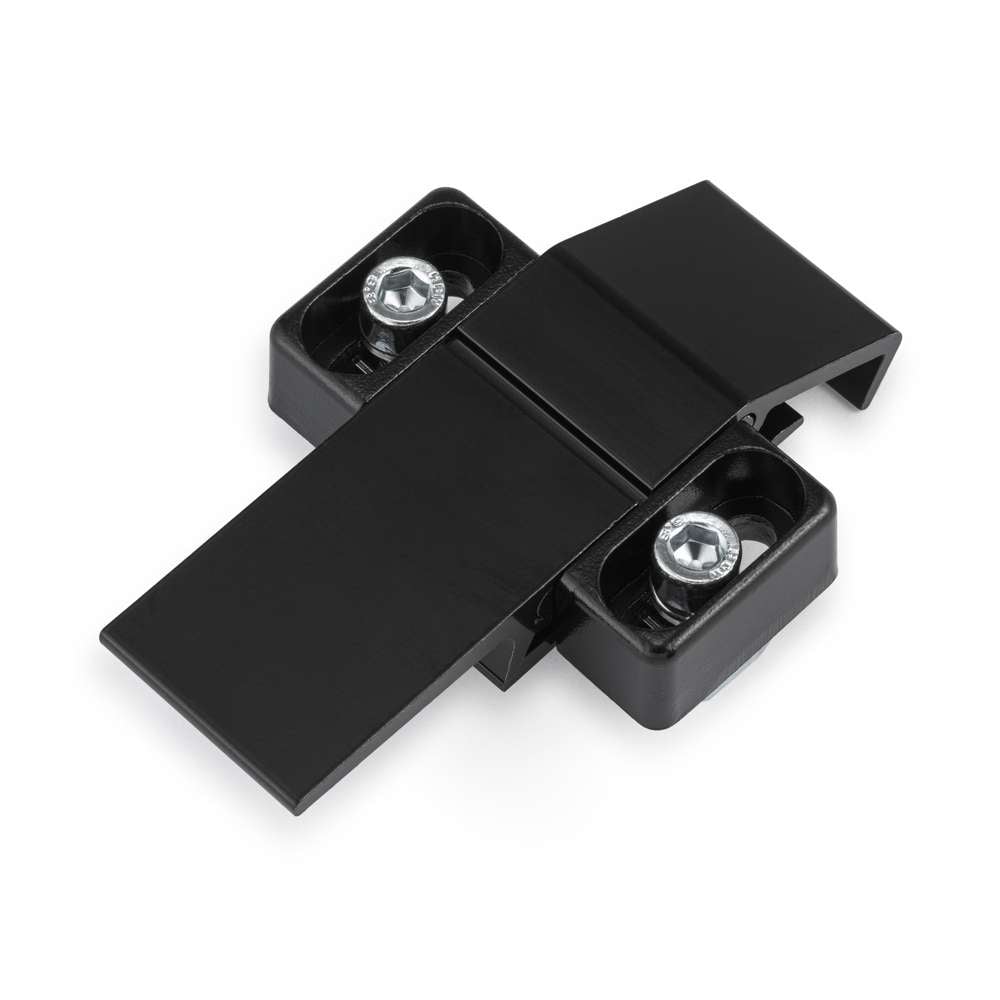

40/40, 40/45 & 45/45 Series T-Slot Mechanical Latch

40/40, 40/45 & 45/45 Series T-Slot Mechanical Latch is a robust and reliable solution for securing doors in aluminium extrusion assemblies. It provides a mechanical locking action that ensures a more secure hold than magnetic alternatives. This version is compatible with the door and frame profile combinations: 40 series door with a 40 series frame, 40 series door with a 45 series frame or a 45 series door with a 45 series frame. It installs easily without the need for additional mounting hardware.

Key Features

• Secure Closure: Mechanical latch provides a strong, reliable hold for doors that must stay shut under load or vibration.
• Tool-Free Access: Doors can be opened and closed by hand, offering convenient operation without sacrificing security.
• Modular Compatibility: Designed to work seamlessly with aluminium profile systems using matching or mixed door/frame sizes.
• No Additional Mounting: Installs directly into the profiles without the need for extra brackets or mounting hardware.

Application

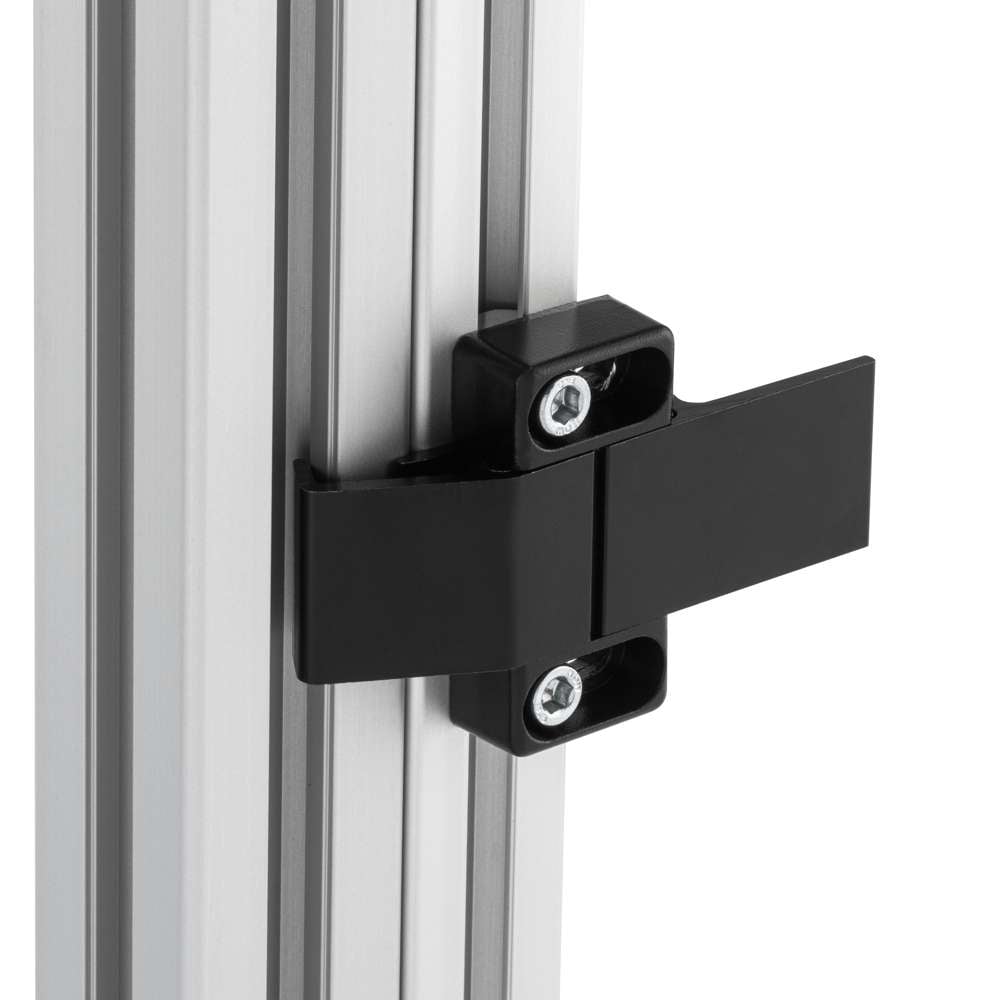

Ideal for use in enclosures, cabinets, or doors built using aluminium extrusion, Mechanical Latches offer a secure and reliable method for keeping doors closed. It is particularly useful for applications where added strength and resistance to vibration or tampering is required. Unlike magnetic catches, this latch does not require a separate mount and is well-suited to more demanding industrial and modular system environments, ensuring consistent and dependable closure across a range of profile combinations.
