4 Way 20 Series T/V-Slot Multiway Inner Link Connector
4 Way Link Connectors offer an affordable, high-quality solution for joining multiple extrusions at a point, for lightweight and adjustable projects.
4 Way 20 Series Multiway Inner Link Connectors are a cost-effective and simple solution for joining multiple extrusions at a single point. They provide an efficient, affordable, and high-quality method for joining aluminium extrusions, making them ideal for projects that are not load-bearing or require frequent adjustments, such as in the initial design stages. Whether you’re working on a large-scale project or a prototype, these connectors ensure ease of assembly and flexibility in your design.
Key Features
- Cost-Effective: Provides an economical solution without sacrificing quality, making it accessible for all types of projects.
- Easy Assembly: The straightforward design, featuring the Inner Link Connector and grub screws, allows for quick and simple aluminium extrusion assembly.
- Ideal for Prototyping: Perfect for rapid prototyping, these links enable efficient connections, allowing your design to evolve seamlessly.
- Designed for Minimal Load: Tailored for applications with minimal load requirements, offering stability without the bulk of heavy-duty connectors.
- Versatile Compatibility: Compatible with our 20 Series T/V-Slot Aluminium Extrusion, allowing for a wide range of applications and configurations.
Application

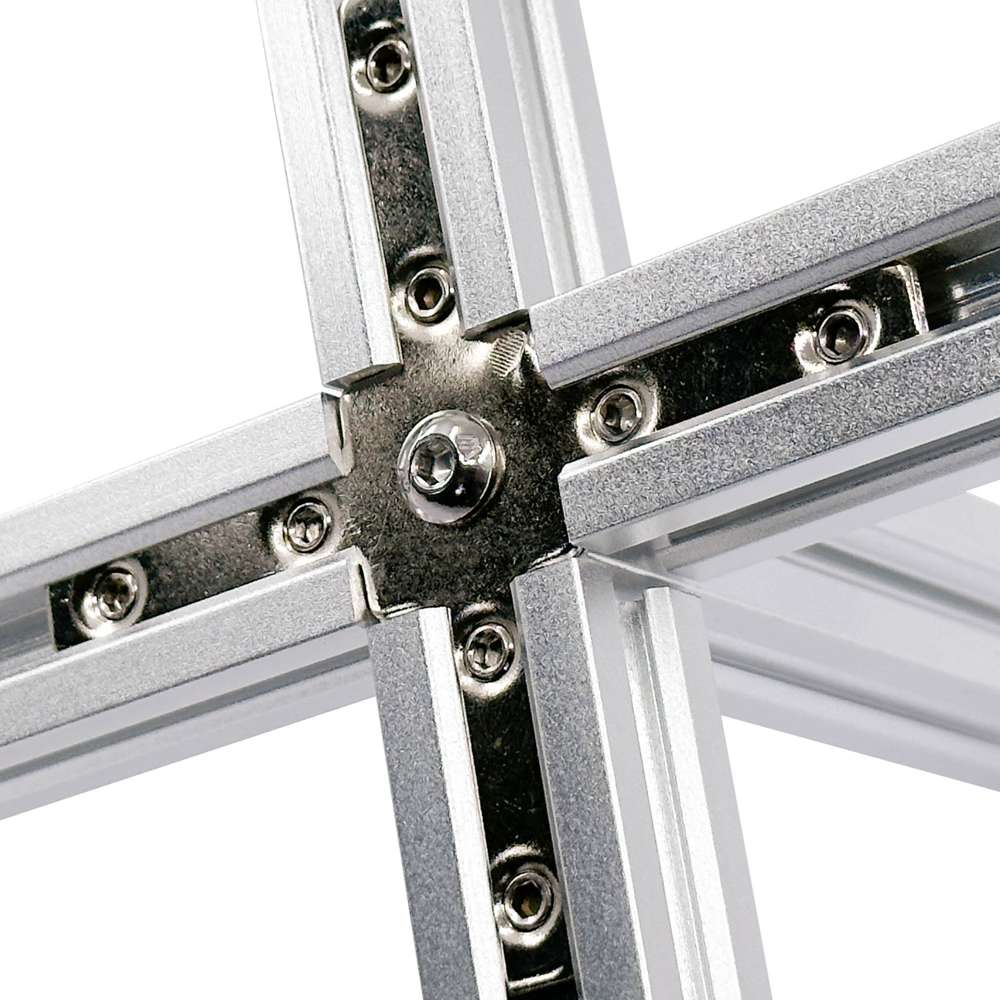

Multiway Inner Link Connectors are specifically designed for use with our 20 Series T/V-Slot Aluminium Extrusion. They efficiently connect four 20 Series extrusions on the shortest side to form a ‘X’ shape, with a fifth perpendicular 20×20 extrusion. These links are ideal for creating precise angles in lightweight structures, enabling flexible and adaptable designs in both prototyping and final product assembly.

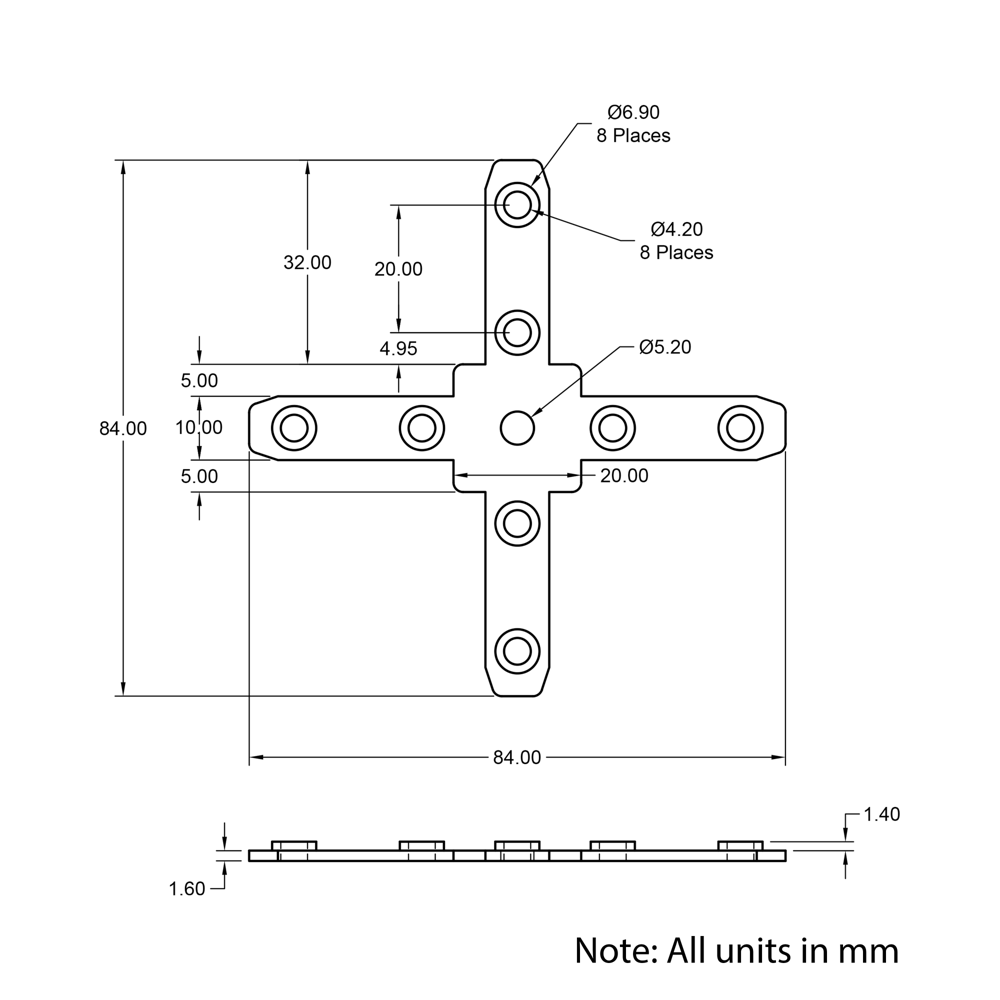

| Brand | Ooznest |
|---|---|
| Stock Type | New |
| Weight (g) | 18.00 |
| Profile Series | 20 Series |
| Material | Carbon Steel |
| Surface Finish | Nickel Plated |
| Colour | Natural |
| Thread | M5 |
| Socket Size (mm) | 2.5 |
| Number Of Fixing Points | 8 |
| Fixings Spacing (mm) | 20 |
| Number Of Ways | 4 |
| Insertion Type | End |
| Connecting Angle (°) | 90 |

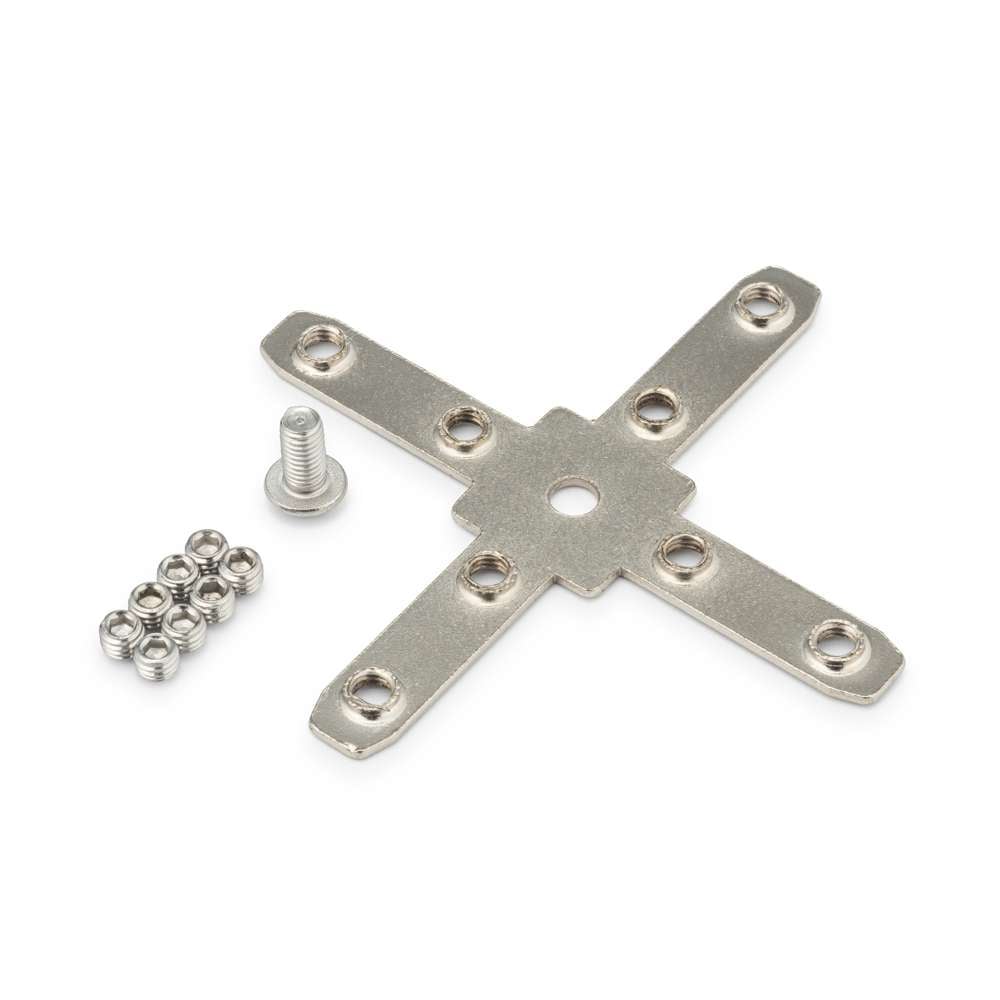

What's Included
| Name | Quantity |
|---|---|
| M5x10mm Socket Button Head Bolt (ISO 7380, A2 Stainless Steel) | 1 |
| M5x4mm Cup Point Grub Screw (DIN 916, A2 Stainless Steel) | 8 |
| 4 Way 20 Series T/V-Slot Multiway Inner Link Connector | 1 |
