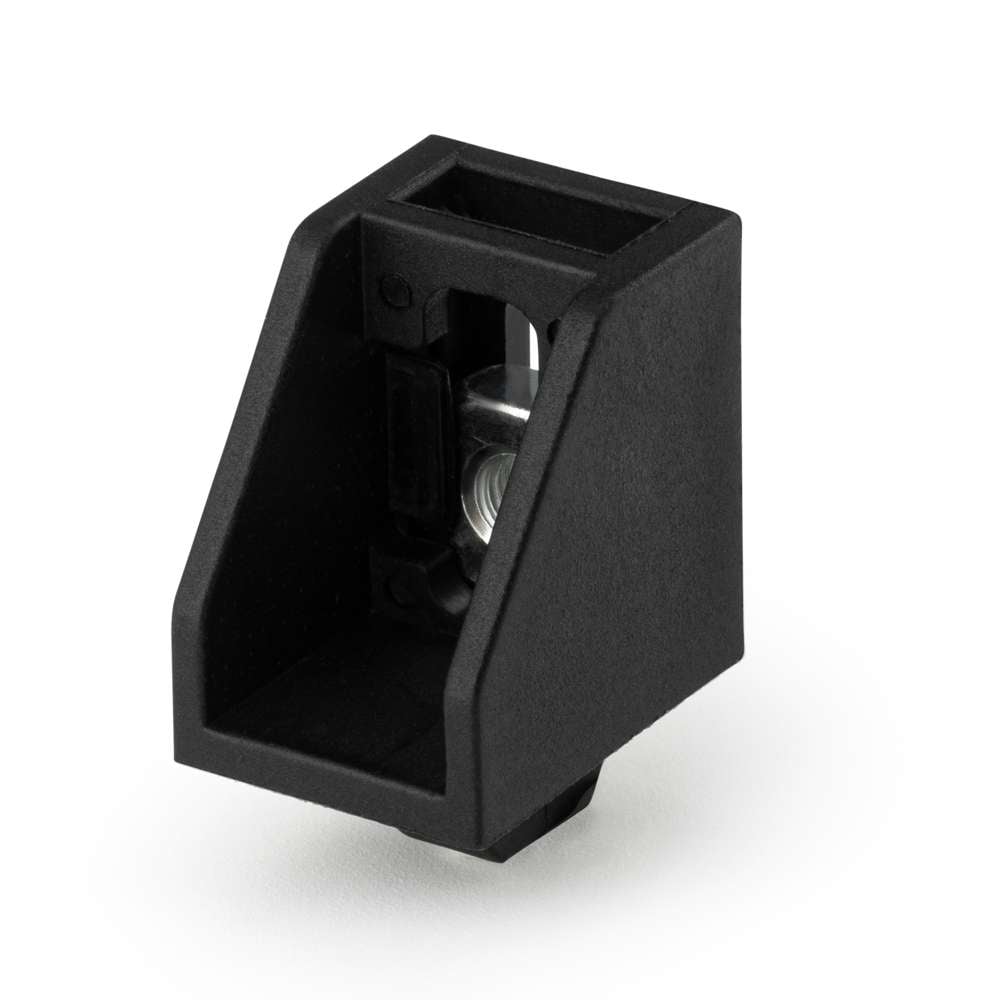

20 Series Panel Bracket

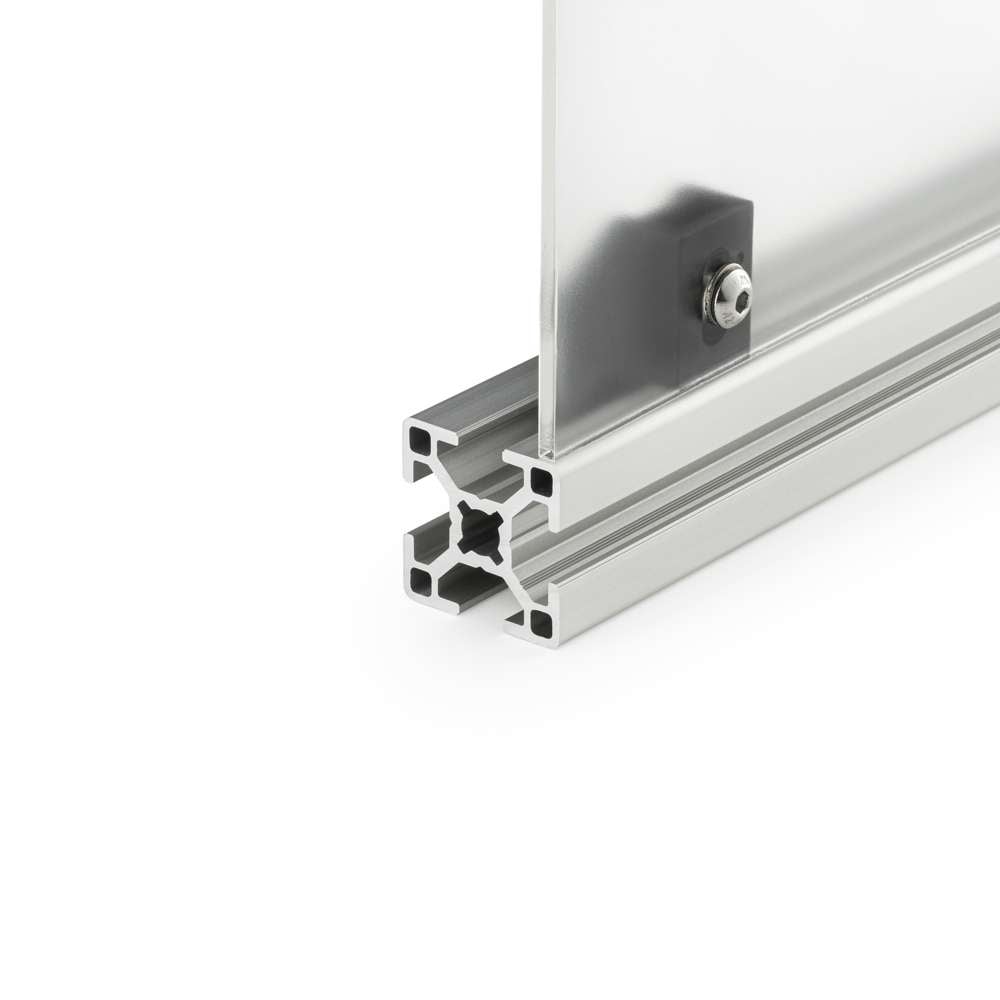

20 Series Panel Brackets provide a simple and effective solution for mounting infill panels to aluminium extrusion frames after assembly. Designed to twist-lock into the slot of extrusion, these brackets feature an integrated nut, allowing panels to be easily secured. Ideal for applications where panels need to be installed, removed, or replaced without disassembling the frame, they offer a strong, discreet mounting method with minimal effort.

Key Features

• Post-Assembly Mounting: Allows panels to be installed after the frame is assembled, no need to disassemble your build.
• Twist-Lock Installation: Bracket quickly twists into the extrusion slot and stays securely in place.
• Integrated Nut: Built-in nut accepts standard screws for fast and reliable panel attachment.
• Appearance: Design holds the panel with minimal visual impact.
• Durable Nylon: Manufactured from tough nylon for strength, wear resistance, and long-term performance.
• Versatile Compatibility: Works with a variety of panel materials including acrylic, metal, and composite sheets.

Application

Panel Brackets are perfect for mounting panels to aluminium extrusion frames in guarding systems, machine enclosures, display panels, and partitions. Their twist-in design with integrated nut allows for easy retrofitting or panel replacement, making them perfect for applications where access and flexibility are important.
