20 Series Clamping Lever Pivot Joint

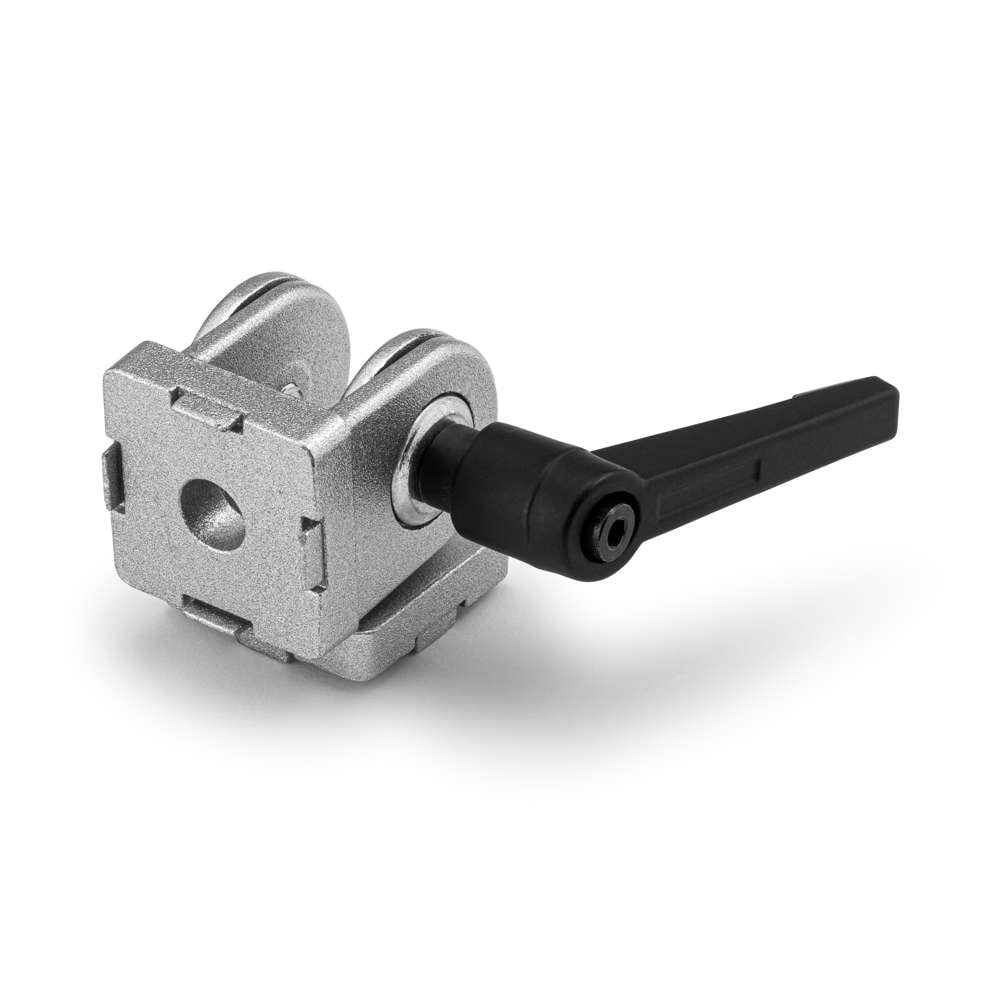

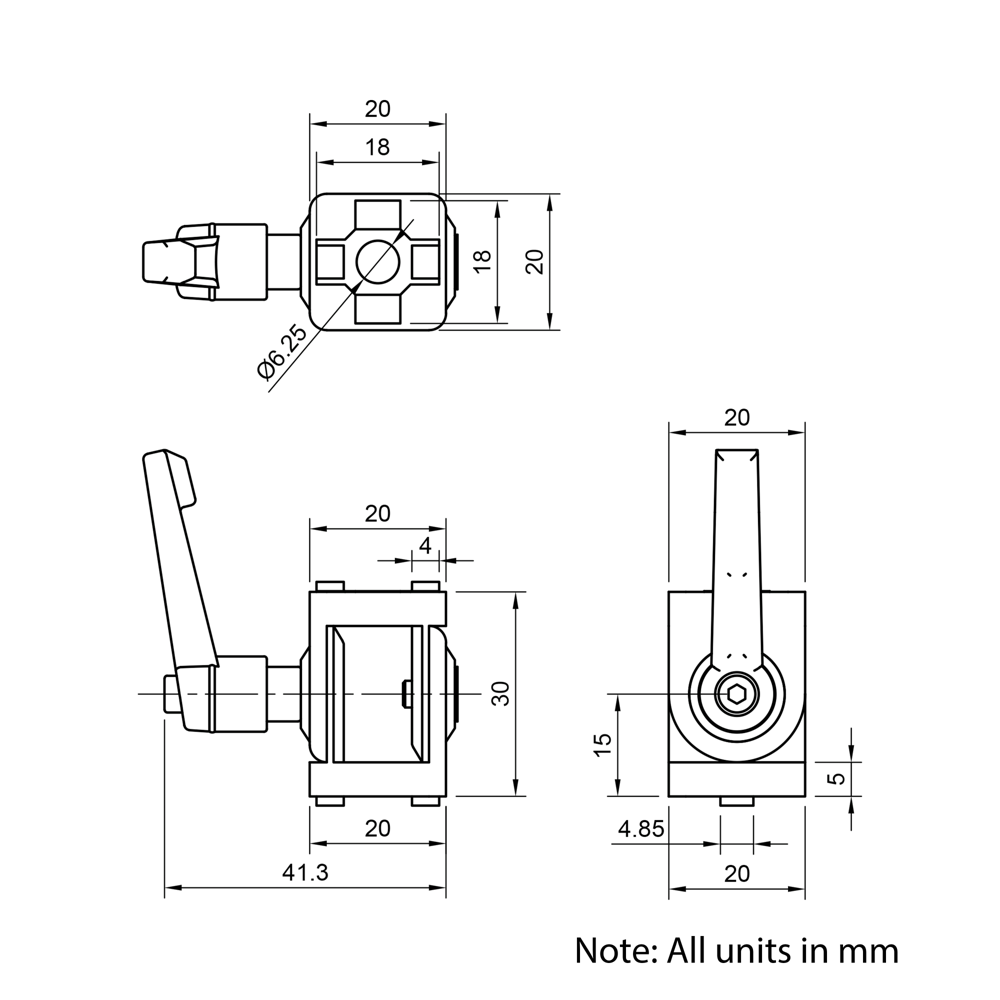

20 Series Pivot Joints are designed to create an adjustable-angle connection between two aluminium extrusions by mounting directly onto their ends. Each side of the pivot joint bolts securely into the threaded end of the aluminium extrusion profile, forming a strong yet flexible connection that can be adjusted to any desired angle. Once the preferred position is set, the joint can be locked firmly in place by tightening the integrated clamping lever. Manufactured from high-quality die-cast zinc, these joints offer strength, stability, and long-term performance in dynamic or reconfigurable assemblies.

Key Features

• Fully Adjustable: Allows connected extrusions to pivot freely and be fixed at any angle.
• Lockable Design: Integrated clamping lever enables secure locking of the joint once positioned.
• End Mounting: Bolts directly into the threaded ends of aluminium extrusion profiles.
• Die-Cast Zinc Construction: Made from durable zinc alloy for strength, rigidity, and corrosion resistance.

Application

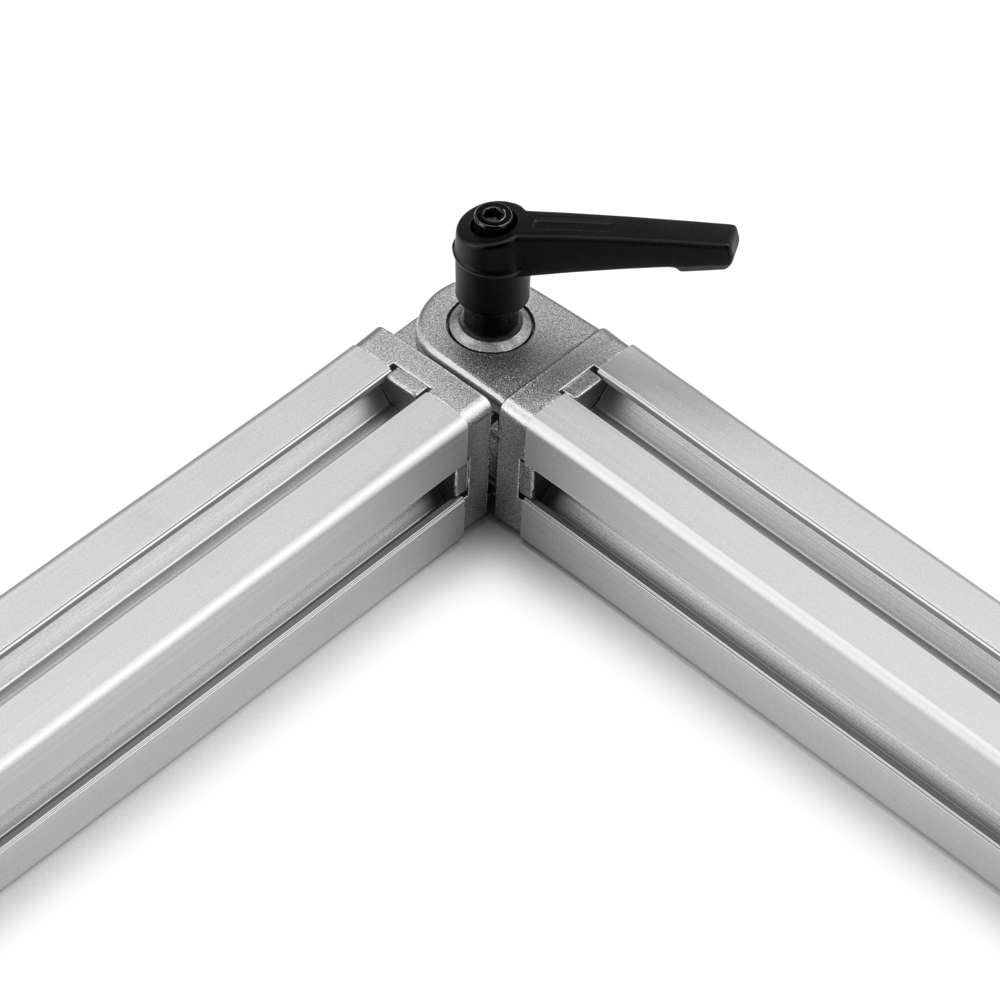

Pivot Joints are ideal for building adjustable frameworks, hinged structures, angled supports, and any application where flexibility in positioning is needed. Commonly used in machinery, fixtures, and modular systems, these joints provide smooth adjustability and a secure, lockable connection between extrusions. Whether you’re designing foldable structures or creating adjustable brackets, these pivot joints offer a reliable and versatile solution.
