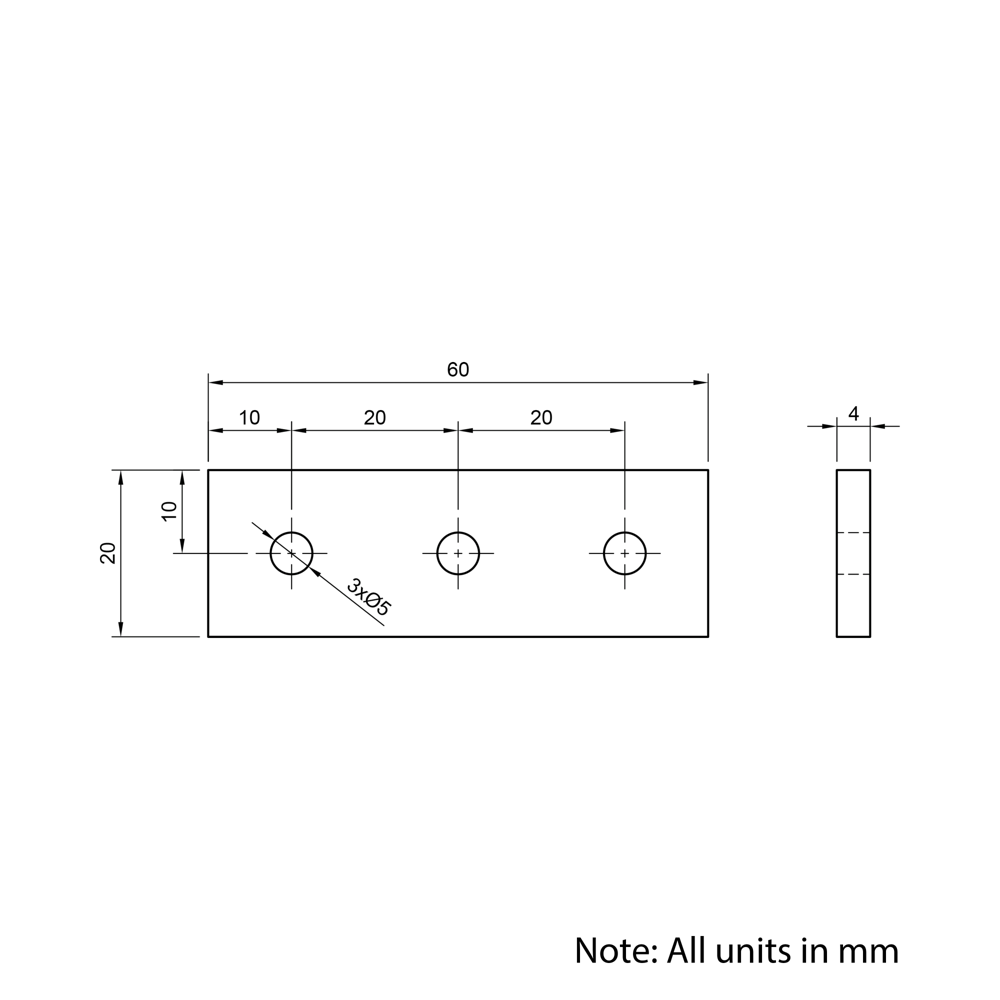

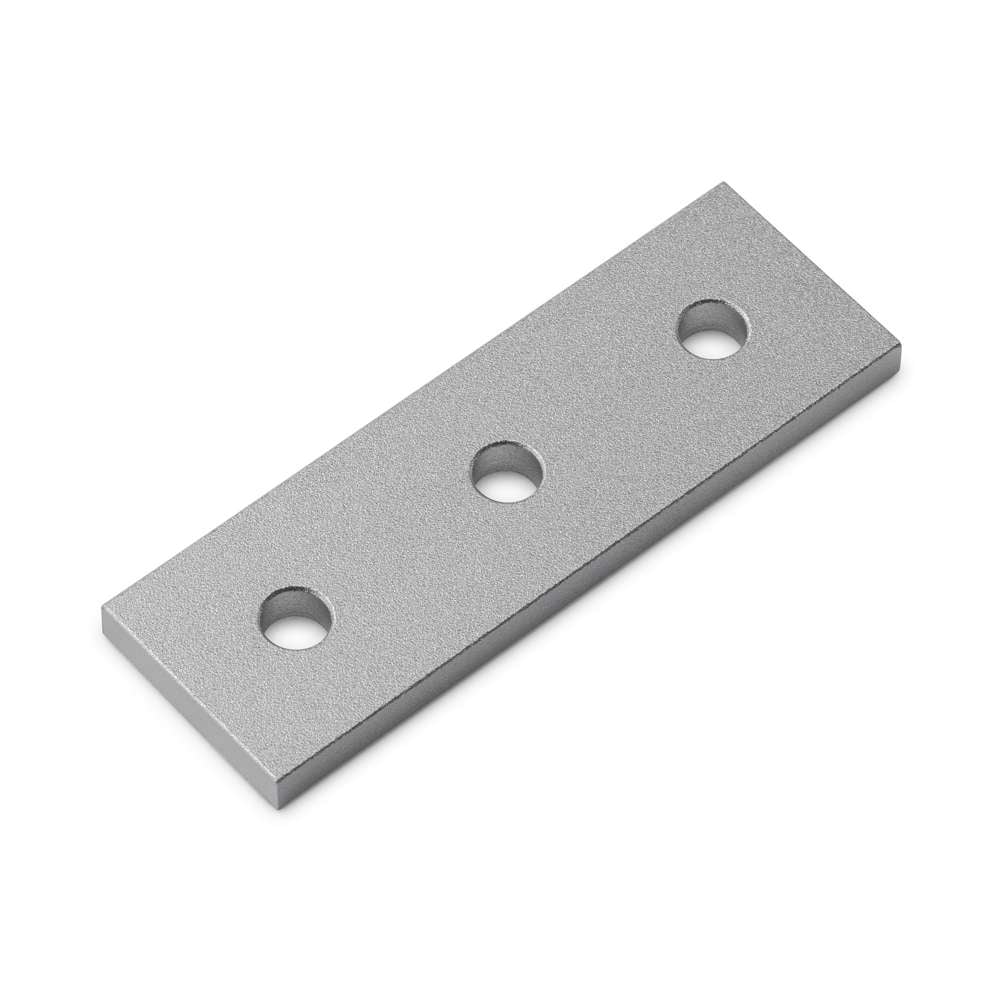

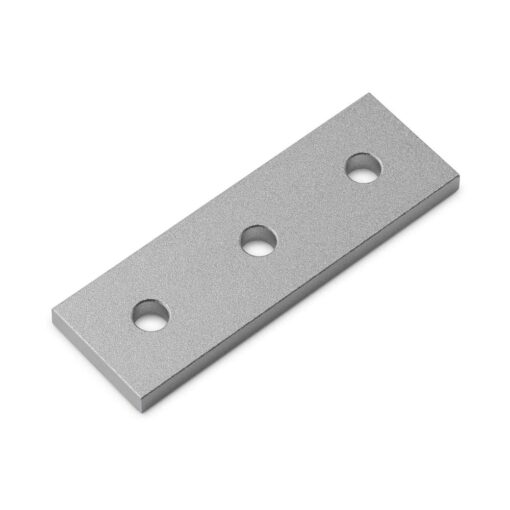

Single Slot 20 Series 3 Hole Plate Connector (Aluminium)
Brand:Ooznest
Plate Connectors offer an adjustable and strong solution for joining extrusions end-to-end, 90°, and T. Ideal for structural assemblies.
Aluminium Single Slot 20 Series 3 Hole Plate Connectors provide a strong, stable, and aesthetically refined solution for creating secure end-to-end, 90-degree, and T joints in aluminium extrusion assemblies. Designed for high shear, moment, and torsional resistance depending on configuration, these connectors offer high structural integrity of frameworks without requiring any machining. These brackets are ideal for machine enclosures, industrial workstations, and other demanding structural applications.
Pros and Cons
Plate Connectors for adjustable and strong aluminium extrusion assemblies.
| Pros | Cons |
|---|---|
|
|
Application
Plate Connectors are designed for use with 20 Series T-Slot Aluminium Extrusions to create strong and stable end-to-end, 90-degree, and T-joint connections. These plates offer excellent shear, moment, and torsional resistance, making them suitable for high-strength structural frameworks, machine enclosures, and modular assemblies. Their adaptability ensures a reliable connection in various configurations while maintaining ease of assembly and long-term durability. Unlike other corner brackets, they leave the internal extrusion slots completely clear, allowing for unrestricted mounting of panels, accessories, or additional structural components.
| Brand | Ooznest |
|---|---|
| Stock Type | New |
| Weight (g) | 12.32 |
| Profile Series | 20 Series |
| Material | 6063 T-5 Aluminium |
| Surface Finish | Anodised |
| Colour | Silver |
| Thickness (mm) | 4 |
| Number Of Fixing Points | 3 |
| Fixings Spacing (mm) | 20 |
| Number Of Ways | 3 |
| Connecting Angle (°) | 90, 180 |
| Version | Single Slot |
What's Included
| Name | Quantity |
|---|---|
| Single Slot 20 Series 3 Hole Plate Connector (Aluminium) | 1 |
- Free UK Mainland Shipping: Orders over £100 Incl. VAT qualify for free next day shipping.
- Same Day Dispatch: Orders placed before 13:00 are dispatched the same day.
- Worldwide Shipping: Available for international orders.
For more details, visit Delivery Information
- 30-Day Return: Items can be returned within 30 days of delivery.
- Condition: Must be in original packaging and ‘as-new’ condition.
- Refunds: Issued after inspection, excluding original shipping costs.
- No Exchanges: Only refunds are provided.
- Return Costs: Customers bear return postage costs and should use a tracked service.
For more details, visit Returns
