Medium MotionRail Gantry Plate (100x120mm)
Brand:Ooznest
MotionRail Gantry Plate for smooth, precise linear motion. Compatible with MotionRail extrusion, ideal for CNCs, actuators and other motion applications.

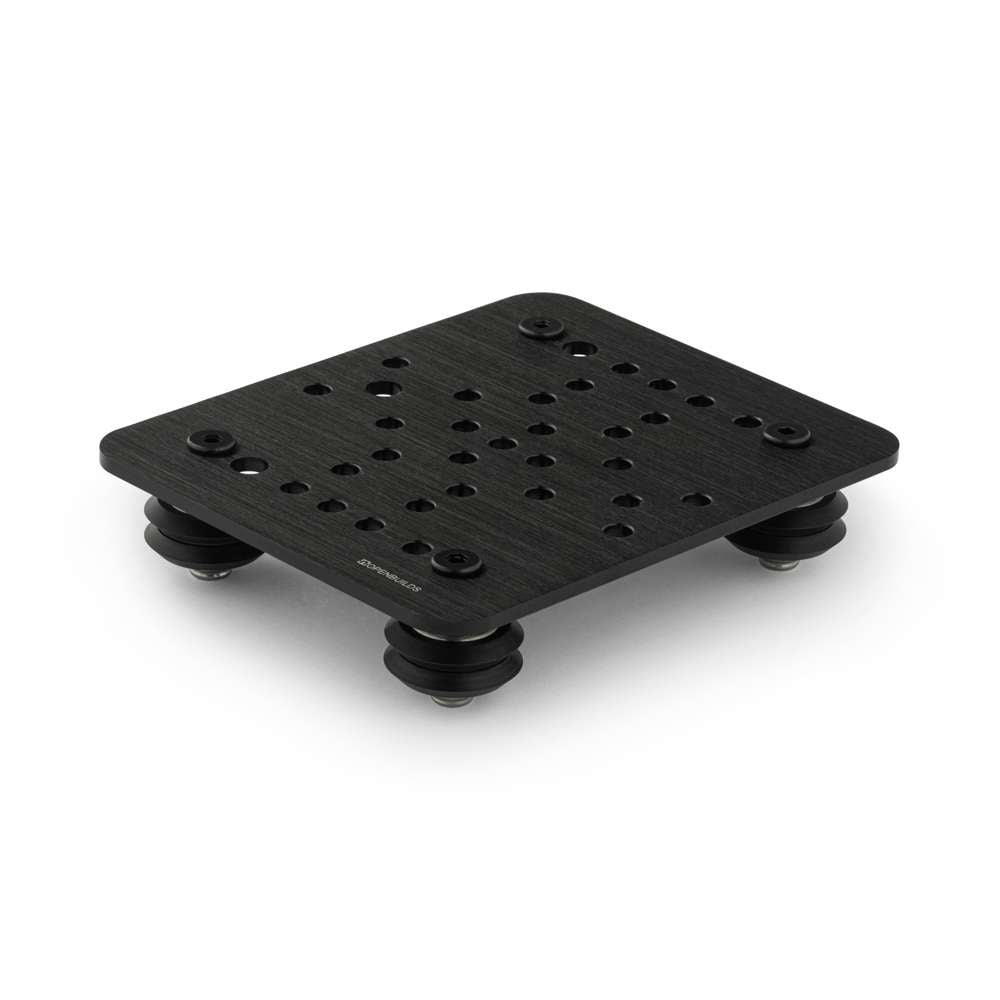

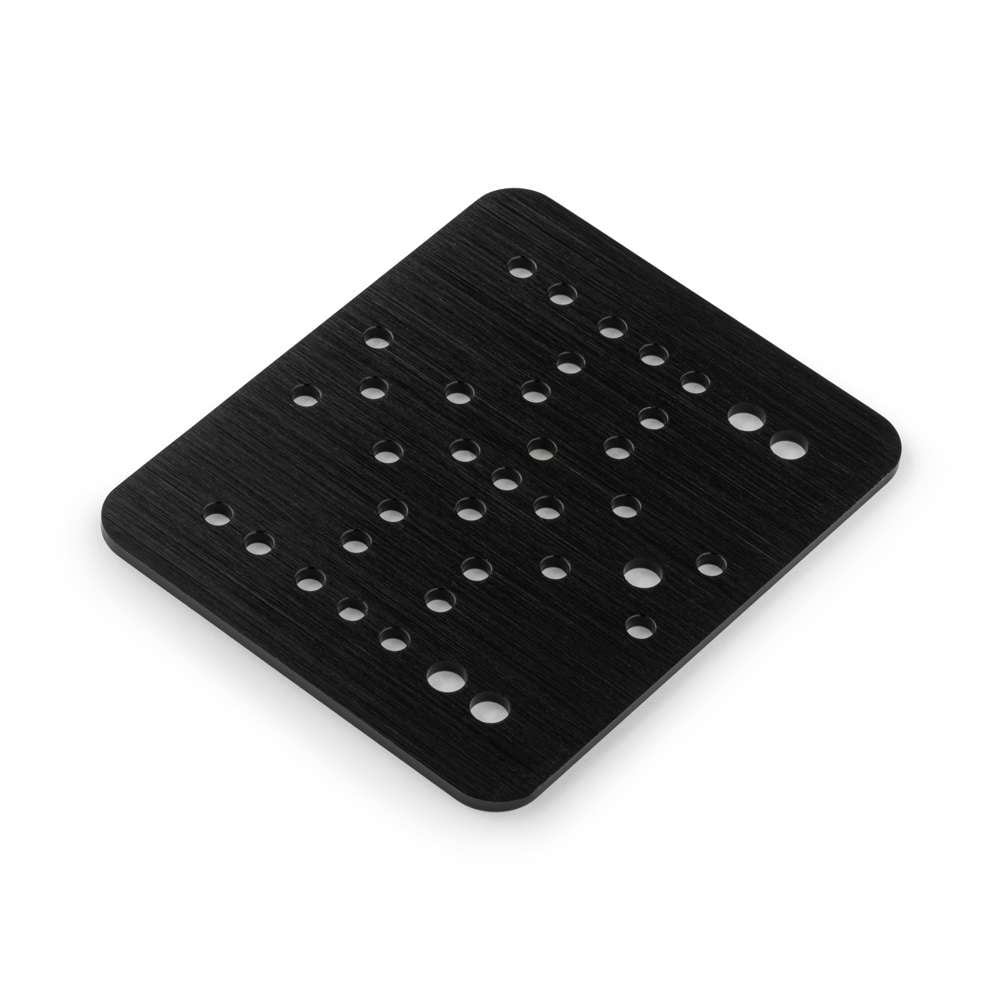

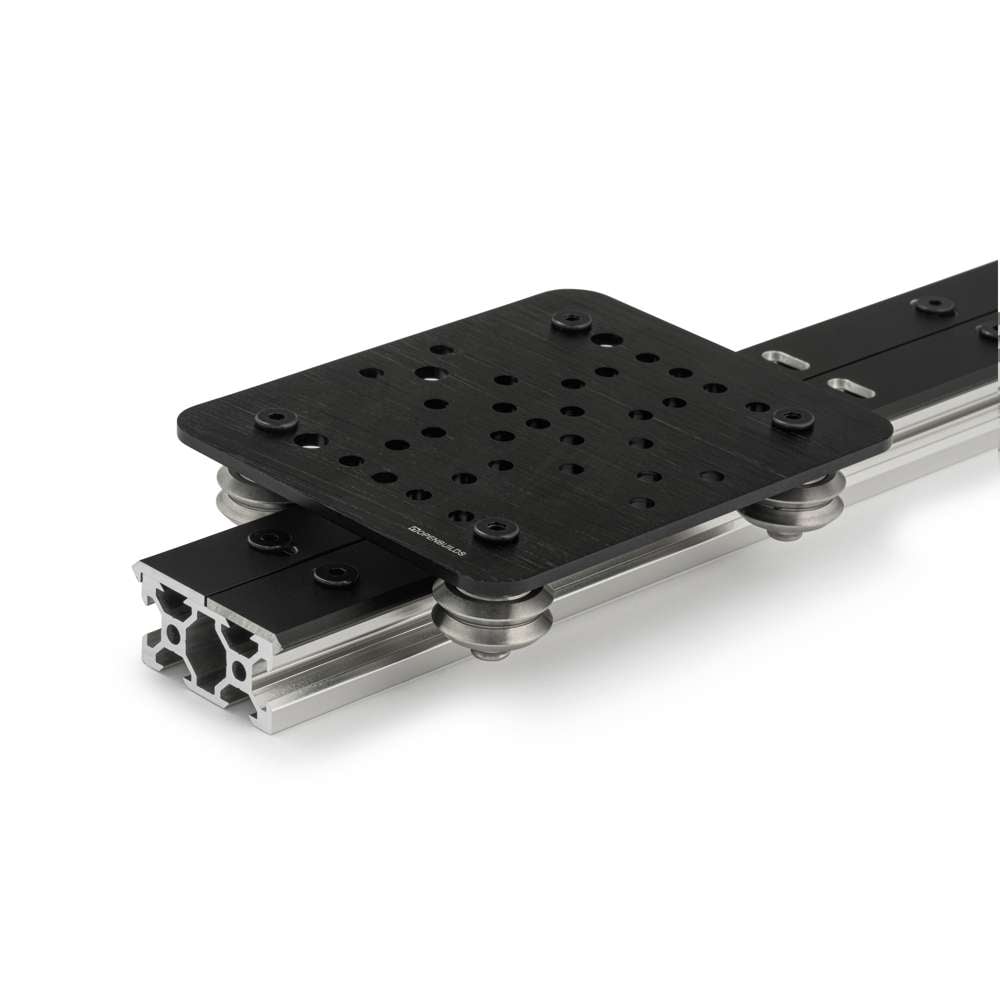

Medium MotionRail Gantry Plate (100x120mm) is a versatile and durable platform for building smooth, precise linear motion systems using MotionRail Extrusions. Made from high-strength aluminium and finished with a black anodised coating, this plate accepts MotionRail Wheels and provides a stable base that glides effortlessly along the external ‘V’ of the MotionRail extrusion profile. Holes on one side are designed to accept eccentric spacers, enabling preloading of the wheels for tight, wobble-free tracking.
This plate is compatible with extrusions 20mm and 40mm wide with MotionRail mounted on both sides. It features multiple mounting holes allowing for flexible attachment of tools, motors, brackets, or custom components.
Key Features
- MotionRail Wheel Compatible: Designed to accept MotionRail Wheels for smooth, accurate linear motion.
- Eccentric Spacer Support: Holes on one side accept eccentric spacers for adjustable wheel preloading.
- Wide Compatibility: Works with 20mm and 40mm wide extrusion with MotionRail mounted on both sides.
- Mounting Flexibility: Features a range of mounting holes to support motors, brackets, and custom components.
Application
MotionRail Gantry Plates are ideal for creating moving platforms in CNC machines, 3D printers, linear actuators, laser cutters, and other linear motion assemblies, it is a flexible and reliable choice for a wide range of mechanical projects.
| Brand | Ooznest |
|---|---|
| Stock Type | New |
| Weight (g) | 92.00 |
| Profile Series | 20 Series |
| Material | 6063 T-5 Aluminium |
| Surface Finish | Anodised |
| Colour | Black |
| Thickness (mm) | 3 |

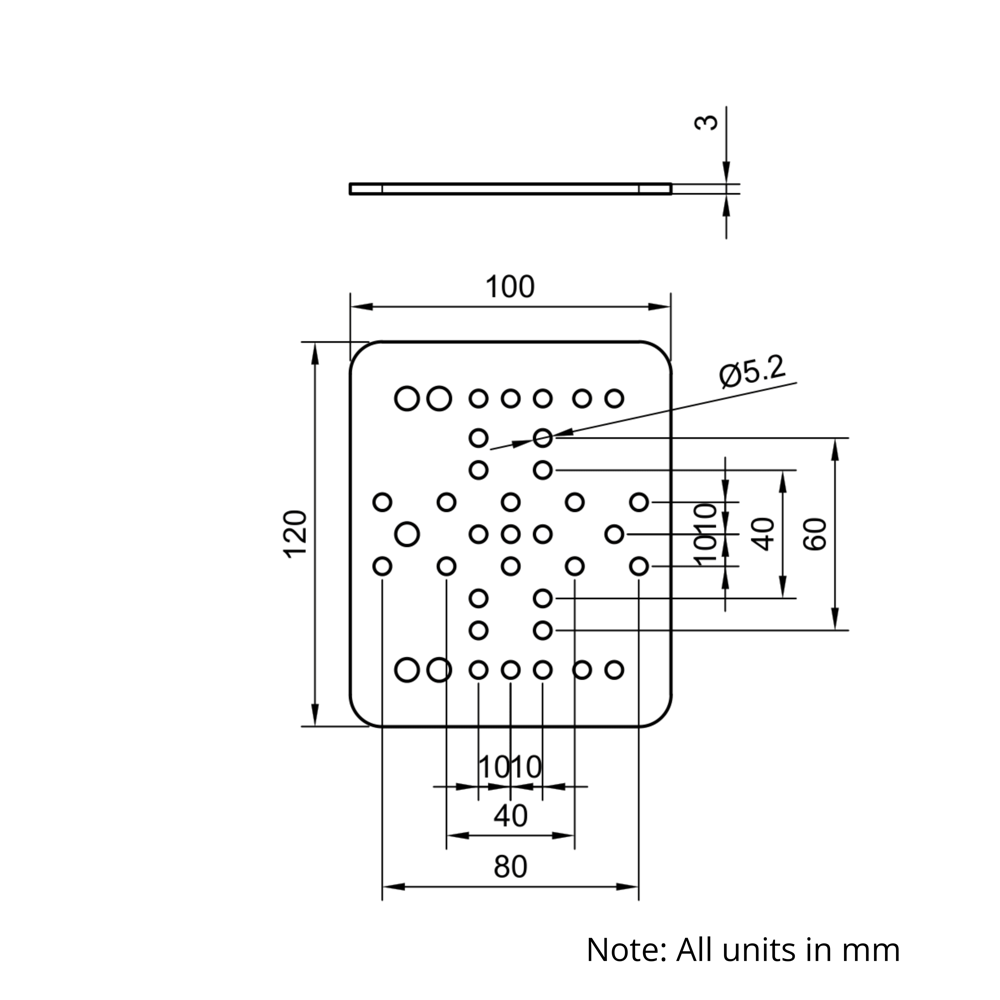

| Version | Medium (100x120mm) |
| For Use With Wheel Size | Regular |

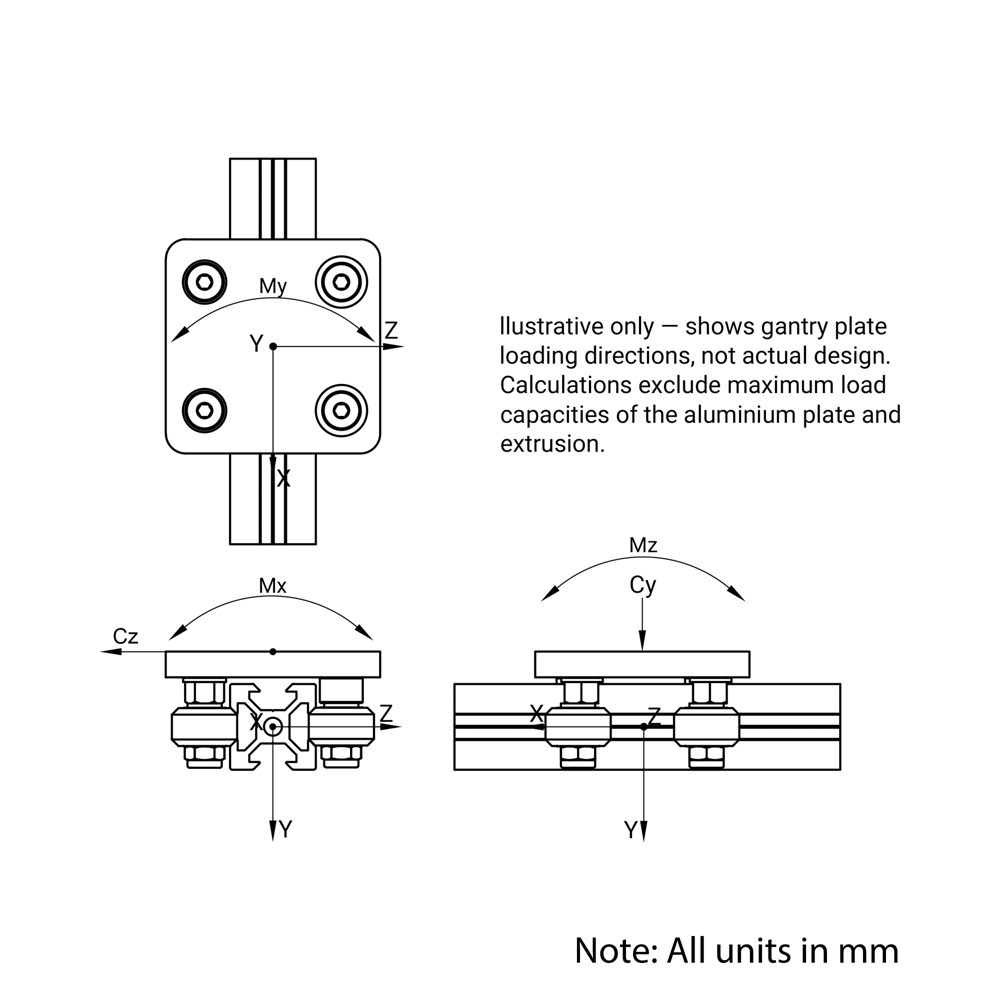

| Cy Static Load Rating (N) | 54.27 |
| Cy Dynamic Load Rating (N) | 147.24 |
| Cz Stat Load 20mm V-Slot (N) | 78.080 |
| Cz Stat Load 40mm V-Slot (N) | 113.090 |
| Cz Dyna Load 20mm V-Slot (N) | 211.830 |
| Cz Dyna Load 40mm V-Slot (N) | 306.820 |
| Mx Stat Mom 20mm V-Slot (Nm) | 1.210 |
| Mx Stat Mom 40mm V-Slot (Nm) | 1.753 |
| My Static Moment Rating (Nm) | 11.478 |
| Mz Static Moment Rating (Nm) | 2.296 |
What's Included
| Name | Quantity |
|---|---|
| Medium MotionRail Gantry Plate (100x120mm) | 1 |
