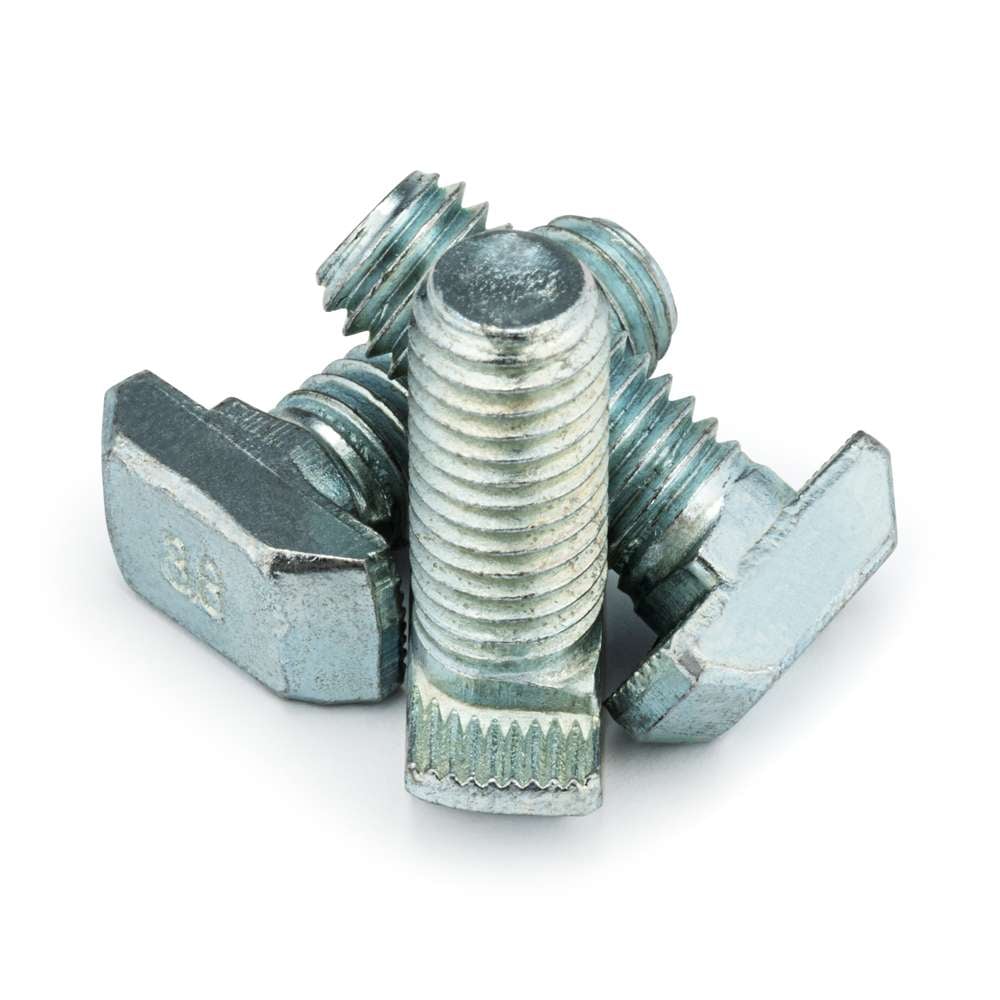

1 x Drop In Bolt - T-Slot - 30 Series - M8 - 20mm

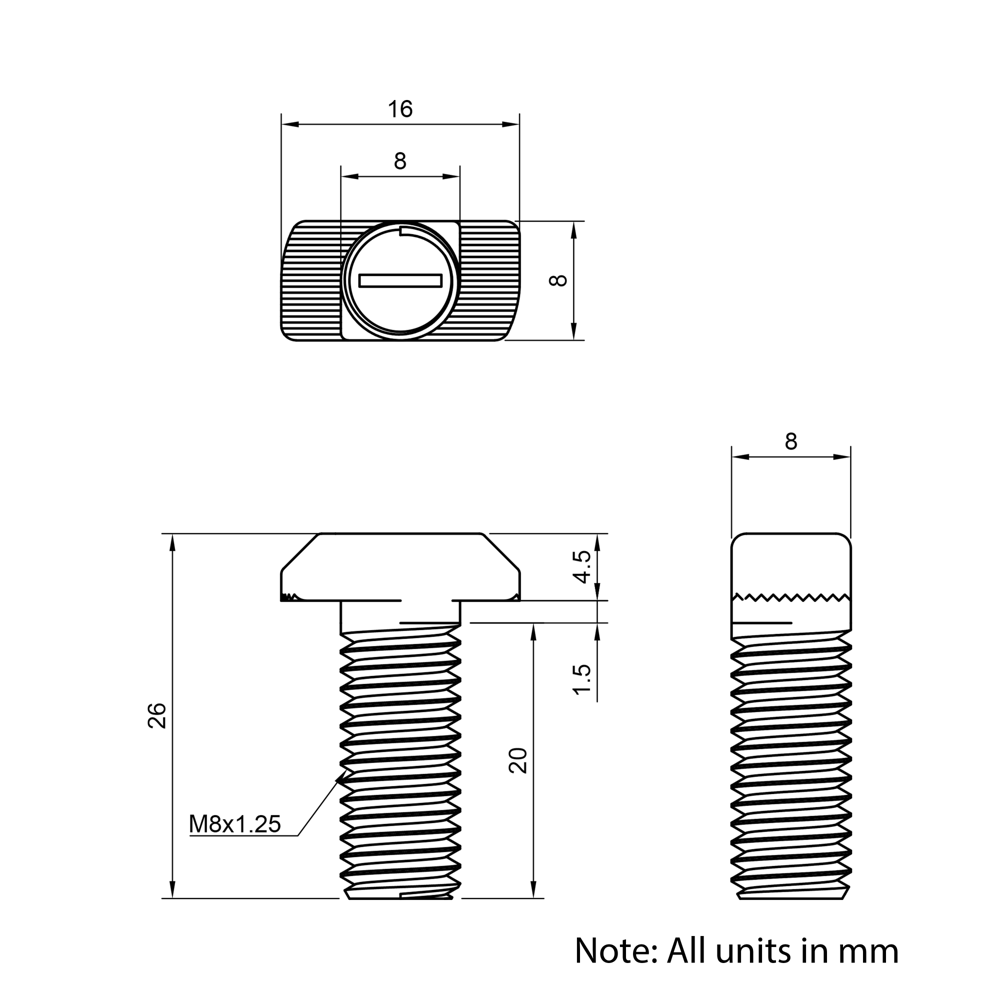

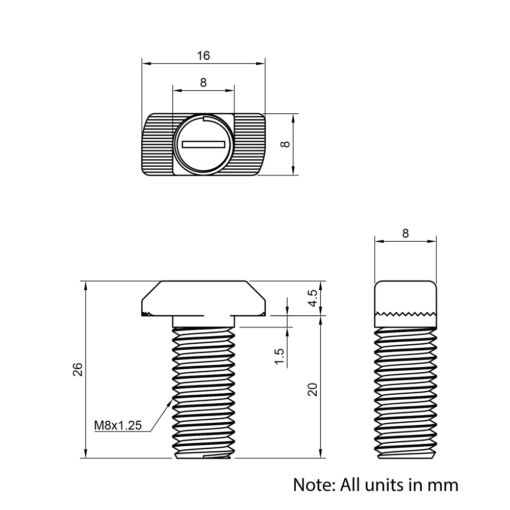

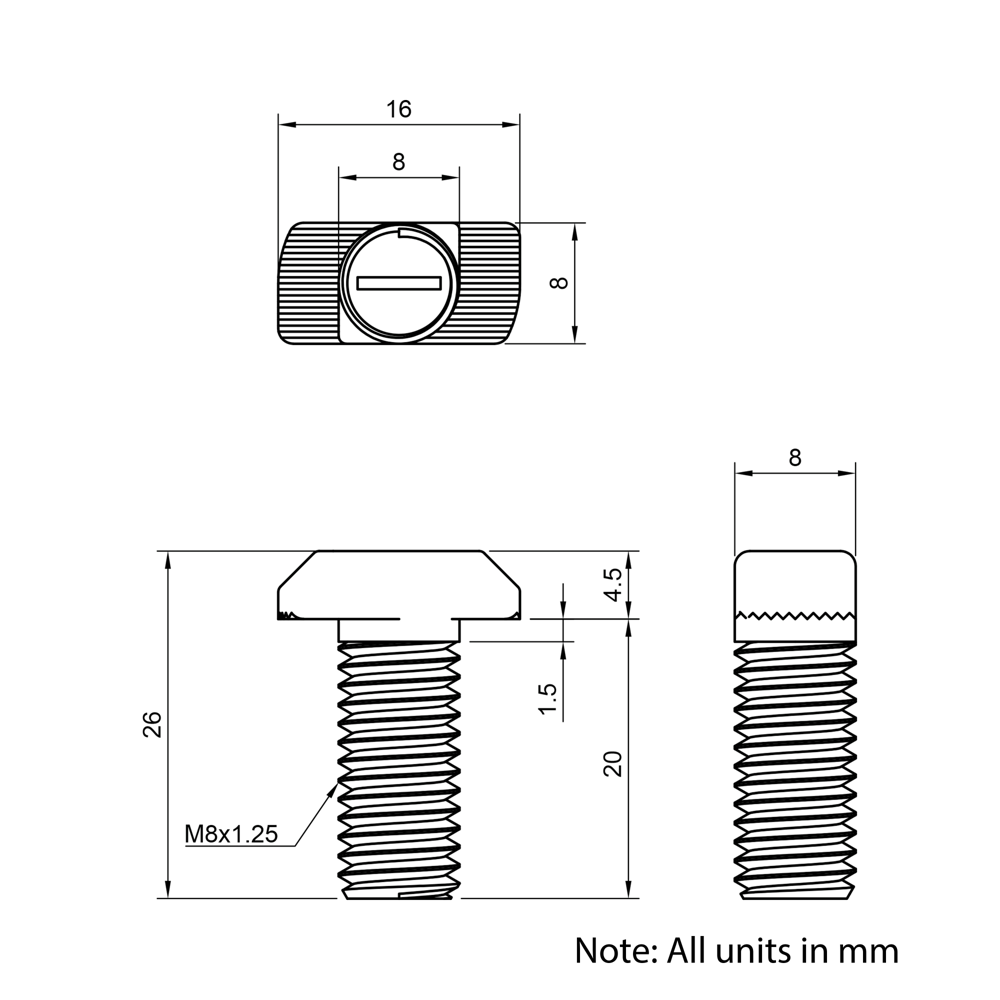

Technical Drawing of Drop In Bolt - T-Slot - 30 Series - M8 - 20mm

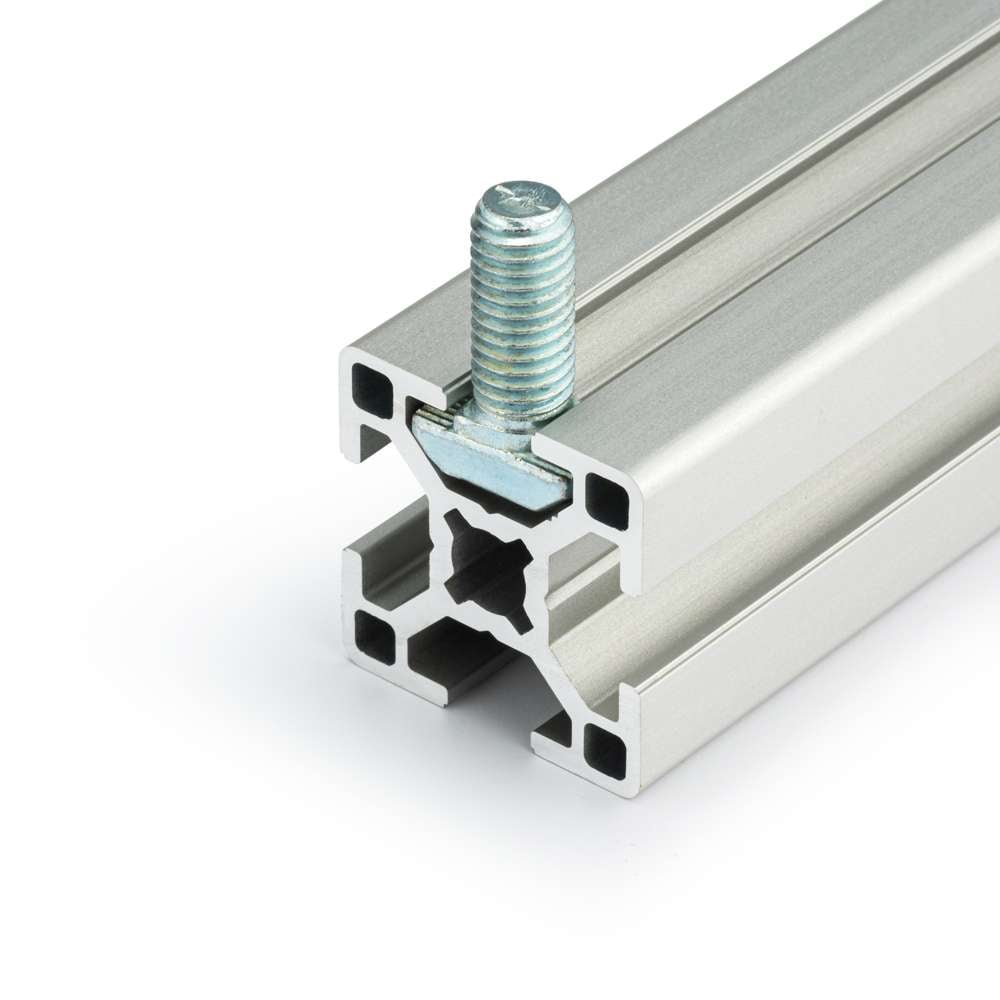

Drop In Bolt - T-Slot - 30 Series - M8 - 20mm Inside Aluminium Extrusion

M8x20mm 30 Series T-Slot Drop In Bolt (Zinc Plated)

Name: M8x20mm 30 Series T-Slot Drop In Bolt (Zinc Plated)
SKU: DIB-30-M8-20
Availability: InStock

Drop In Bolts provide high-strength, vibration-resistant fastening for aluminium extrusion systems, ideal for heavy-duty dynamic frames.

Profile Series:

Thread:

Length (mm):

£0.91 (Inc VAT)

Quantity	Price (Inc VAT)	Discount
Selected price:	1 - 9	£0.91	0%
10 - 24	£0.86	5%
25 - 49	£0.78	15%
50 - 99	£0.68	25%
100 - 249	£0.55	40%
250 - 499	£0.46	50%
500 - 999	£0.36	60%
1000+	£0.32	65%

46 in stock (can be backordered)

You May Also Need

SKU: DIB-30-M8-20 Category: Drop In Bolts Tags: 30 Series, t-slot

M8x20mm 30 Series T-Slot Drop In Bolts are a high-strength, reliable fastening solution designed for aluminium extrusion systems. Unlike Drop In Nuts, these bolts feature a built-in thread that works with a serrated flange nut to secure your accessory. The design allows for higher torque tightening using a spanner, providing a stronger, more secure connection. Additionally, the serrations on the flange of the nut offer resistance to loosening, especially in applications exposed to vibration. With face insertion, Drop In Bolts can be easily added or adjusted without disassembling the frame. Zinc-plated for corrosion resistance, these bolts are ideal for demanding applications requiring both strength and stability.

Pros and Cons

Drop In Bolts provide high strength and vibration resistance for secure fastening in demanding applications.

Pros	Cons
High Strength: Designed for heavy-duty applications, providing superior load-bearing capacity. Torque Tightening: Can be tightened with a spanner, allowing for greater torque and a more secure fit. Vibration Resistance: Serrated flange nut prevents loosening in environments exposed to vibration. Corrosion Resistant: Zinc plating offers effective protection against rust and corrosion. Easy Insertion: Can be inserted from the face of the extrusion, making modifications without disassembling the frame easy. No Advanced Planning Needed: Flexibility to add or adjust bolts as needed during assembly. Versatile Use: Suitable for both vertical and horizontal planes, offering flexibility in design.	High Cost: More expensive than standard nuts and bolts, but justified by their added strength and reliability features.

Pros

Cons

High Strength: Designed for heavy-duty applications, providing superior load-bearing capacity.
Torque Tightening: Can be tightened with a spanner, allowing for greater torque and a more secure fit.
Vibration Resistance: Serrated flange nut prevents loosening in environments exposed to vibration.
Corrosion Resistant: Zinc plating offers effective protection against rust and corrosion.
Easy Insertion: Can be inserted from the face of the extrusion, making modifications without disassembling the frame easy.
No Advanced Planning Needed: Flexibility to add or adjust bolts as needed during assembly.
Versatile Use: Suitable for both vertical and horizontal planes, offering flexibility in design.

High Cost: More expensive than standard nuts and bolts, but justified by their added strength and reliability features.

Application

Drop In Bolts are specifically designed to complement aluminum extrusion systems, offering secure fastening for heavy-duty frames, machinery mounts, workstations, and modular systems. Ideal for professional engineers and industrial applications, these bolts provide a high-strength solution with resistance to vibration and loosening. Their ability to be torqued tightly with a spanner, combined with the anti-loosening serrations, make them an excellent choice for secure, stable connections in both vertical and horizontal assemblies.

Brand	Ooznest
Stock Type	New
Weight (g)	9.90
Profile Series	30 Series
Material	Grade 8.8 Carbon Steel
Surface Finish	Zinc Plated
Colour	Natural
Thread	M8
Thread Pitch (mm)	1.25
Thread Length (mm)	20
Length (mm)	20
Insertion Type	Face
ESD Connection	Yes

3D Model Download Drawing Download

What's Included

Name	Quantity
M8x20mm 30 Series T-Slot Drop In Bolt (Zinc Plated)	1
