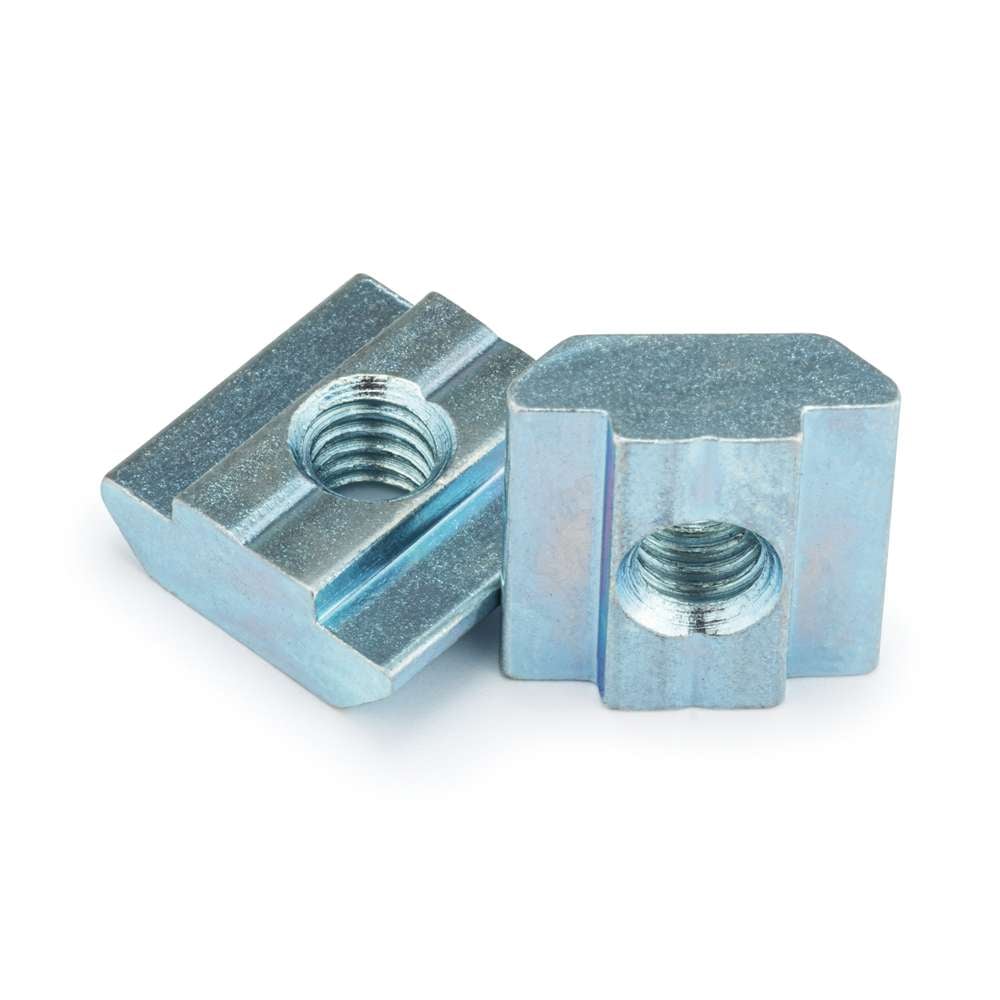

2 x Slide In Nut - T/V-Slot - 20 Series - M5

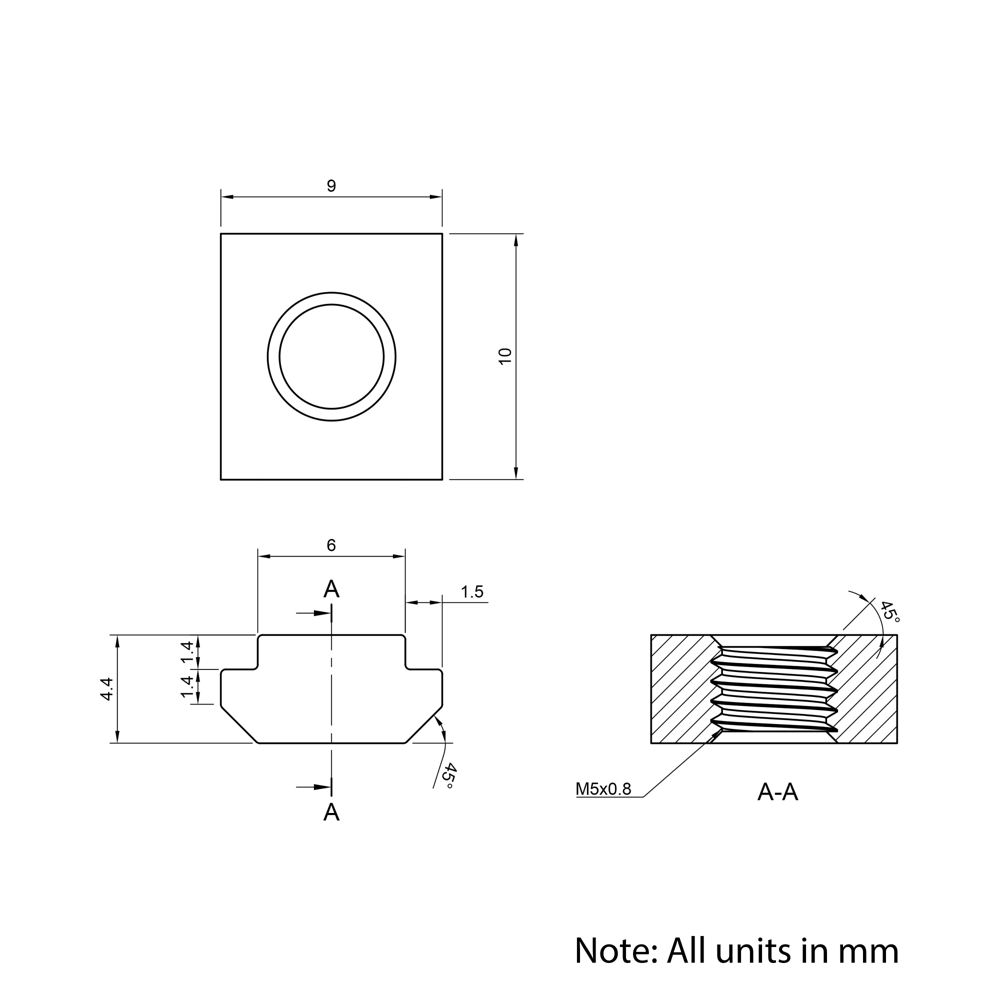

Technical Drawing Of Slide In Nut - T/V-Slot - 20 Series - M5

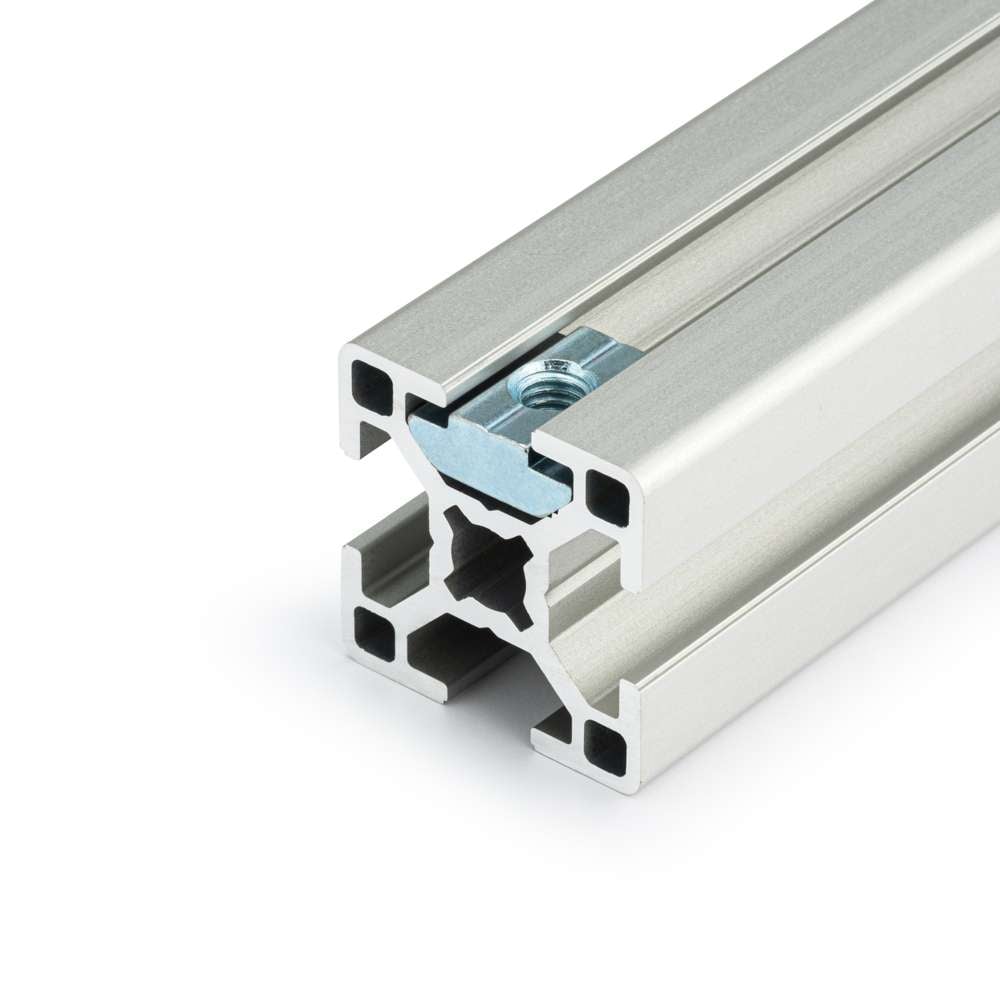

Slide In Nut - T/V-Slot - 20 Series - M5 Inside Aluminium Extrusion

M5 20 Series T/V-Slot Slide In Nut (Zinc Plated)

Name: M5 20 Series T/V-Slot Slide In Nut (Zinc Plated)
SKU: SIN-20-M5
Availability: InStock

Slide In Nuts provide high-strength, reliable fastening for aluminium extrusion applications, ideal for heavy-duty frames and load-bearing assemblies.

BLACK FRIDAY ON EXTRUSION

Get 25% OFF This Accessory – Use Code BLACK25

Get 5% OFF Aluminium Extrusion – Use Code BLACK5 – Buy Now

ENDS 1st DECEMBER

Profile Series:

Thread:

Version:

£0.73 (Inc VAT)

Quantity	Price (Inc VAT)	Discount
Selected price:	1 - 9	£0.73	0%
10 - 24	£0.70	5%
25 - 49	£0.62	15%
50 - 99	£0.55	25%
100 - 249	£0.44	40%
250 - 499	£0.37	50%
500 - 999	£0.29	60%
1000+	£0.25	65%

9003 in stock (can be backordered)

SKU: SIN-20-M5 Category: Slide In Nuts Tags: 20 Series, c-beam, t-slot, v-slot

M5 20 Series T/V-Slot Slide In Nuts are a robust fastening solution designed for use with aluminium extrusion systems. The functional nut features a design that slides into the T/V-Slot of the extrusion from the end, providing a secure high-strength anchor point. Zinc-plated for improved corrosion resistance, these nuts offer a balance of affordability and basic functionality for demanding applications in modular framing and heavy-duty assemblies.

Pros and Cons

Slide In Nuts are a high-strength solution for applications with moderate to high load requirements.

Pros	Cons
High Strength: These nuts offer the highest pull-out force among our extrusion nuts. Reliable Engagement: Sliding in from the extrusion end ensures full contact with the T/V-Slot, maximising available strength. Corrosion resistant: Zinc plating provides basic protection against rust.	End insertion only: Cannot be added after frame assembly, limiting flexibility. Advanced planning required: Number and placement of nuts must be determined before assembly.

Application

Slide In Nuts are specifically designed to complement our aluminium extrusion systems, providing secure and high-strength fastening for a wide range of structures and assemblies. Ideal for both professional engineers and DIY enthusiasts, these nuts excel in applications requiring higher load-bearing capacity. Their ease of use and compatibility make them a practical choice for any project requiring efficient and secure assembly.

Brand	Ooznest
Stock Type	New
Weight (g)	2.00
Profile Series	20 Series
Material	Grade 8.8 Carbon Steel
Surface Finish	Zinc Plated
Colour	Natural
Thread	M5
Thread Pitch (mm)	0.8
Insertion Type	End
ESD Connection	No
Version	Carbon Steel (Zinc/Nickel Plated)

3D Model Download Drawing Download

What's Included

Name	Quantity
M5 20 Series T/V-Slot Slide In Nut (Zinc Plated)	1
