Duet 3 Expansion Board 3HC
Brand:Duet3D
Expansion board adding 3 stepper drivers plus extra outputs and I/O, enabling control of larger motion systems.
Duet 3 Expansion Board 3HC is designed for situations where the mainboard does not provide enough stepper driver outputs or I/O for your system. The board includes 3 high-current stepper motor drivers, 3 high-current outputs, multiple PWM outputs, and extensive I/O options. This makes it possible to control even larger and complex motion systems with ease.
They can be daisy-chained together via the CAN-FD bus, this makes it a scalable solution for large automation systems and multi-axis setups.
Key Features
- Powerful Processing: ARM Cortex-M4F microcontroller for fast, reliable performance.
- High-Current Drivers: 3x TMC2160/5160 stepper drivers with advanced motion control features.
- Comprehensive I/O: Multiple PWM outputs and configurable I/O pins for wide application use.
Duet 3 Family
The Duet 3 family is built around a mainboard that acts as the central control unit. Functionality can then be expanded by connecting dedicated expansion boards through the CAN-FD ports, giving the flexibility to add extra stepper drivers, I/O, and specialised features such as closed-loop motor control.
This modular approach makes it possible to scale a system to match the demands of the application. From compact setups to large, complex machines, the Duet 3 Family provides the flexibility to control extensive motion systems for aluminium extrusion setups, CNC machinery, and other advanced motion control applications.

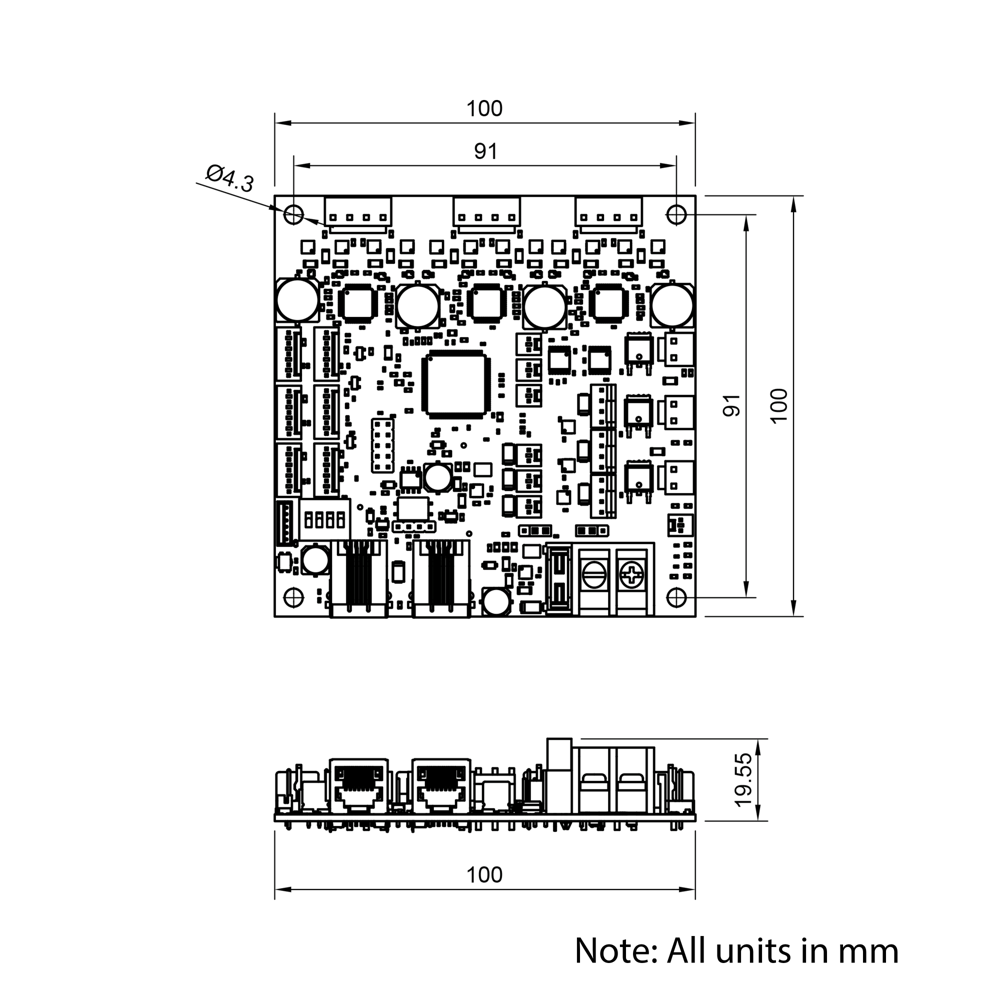

| Brand | Duet3D |
|---|---|
| Stock Type | New |
| Weight (g) | 169.00 |
| Voltage Rating (V) | 12 – 48 |
| Duet Family | 3 |
| Processor | Atmel ATSAME51N (ARM Cortex M4F) |
| Firmware | RepRapFirmware 3.0+ |
| Stepper Driver Outputs | 3 |
| Stepper Driver Model | TMC2160 |
| Stepper Driver Rating (A) | 6.3 Peak (4.45 RMS) |
| High Current Outputs | 3 x 6A PWM |
| Medium Current Outputs | 6 x PWM |
| Temperature Inputs | 2 x Daughter Board, 3 x Thermistor / 3 x PT1000 |
| Inputs/Outputs | 6 x Input / Output |
| Maximum Temperature (°C) | 70 |
External Links
| Description | Links |
|---|---|
| Duet 3D Documentation | Link |
