WorkBee Replacement Z-Axis 750x750mm & 750x1000mm Micro Lever Limit Switch (1330mm Length)
Plug-and-play replacement Micro Lever Limit Switch for the WorkBee CNC machine. Easy, solder-free installation.

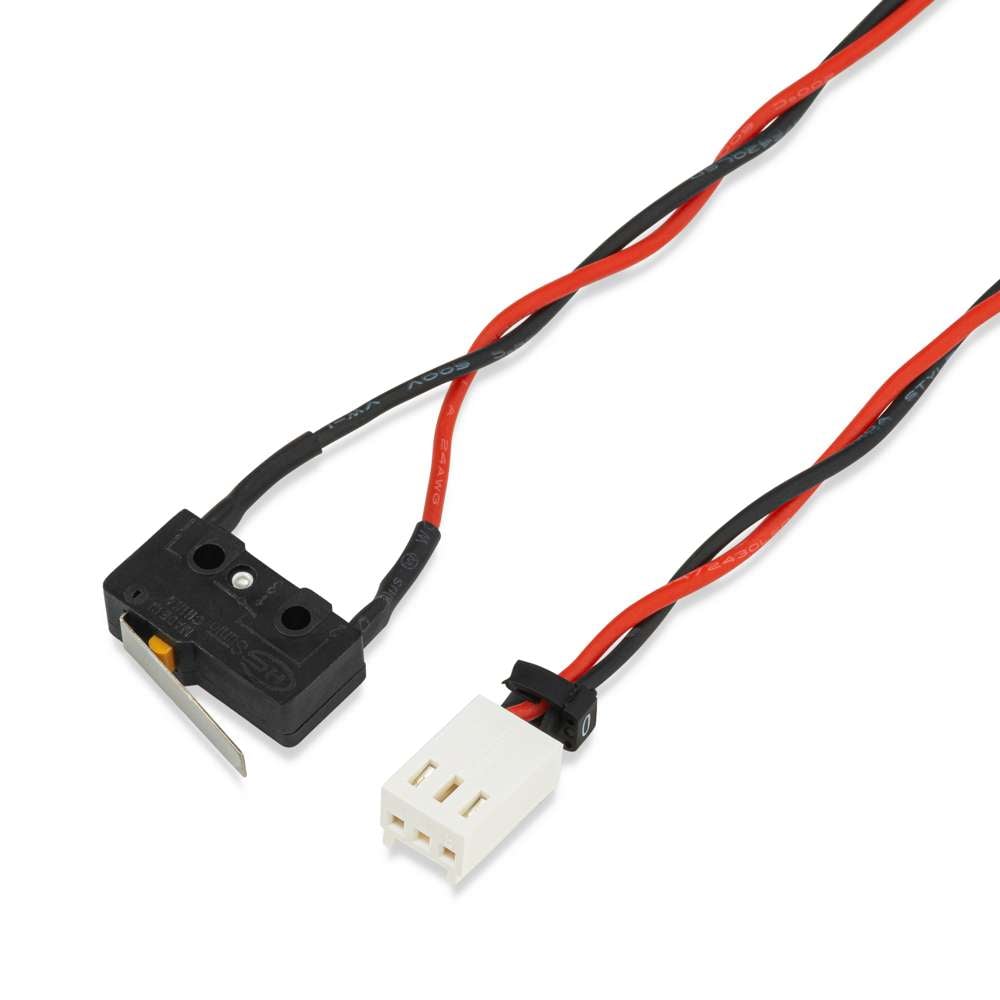

WorkBee Replacement 750x750mm & 750×1000 Z-Axis Micro Lever Limit Switch (1330mm Length) is a pre-assembled plug-and-play Micro Lever Limit Switch for replacing the Z-Axis Micro Lever Limit Switch on your WorkBee CNC machine. Designed specifically for the 750x750mm and 750x1000mm WorkBee models, this cable comes pre-wired with a Micro Lever Limit Switch on one end and a controller connector on the other, ensuring a quick installation with no soldering or modification required. Its length is tailored for optimal routing within your machine’s cable management system, maintaining a tidy and efficient setup.
Key Features
- Plug-and-Play Compatibility: Pre-wired with a Micro Lever Limit Switch on one end and a controller connector on the other, no soldering needed.
- Correct Length: 1330mm cable is sized for clean installation on 750x750mm and 750x1000mm WorkBee machines.
- Z-Axis Specific: Designed for direct replacement of the Z-axis Micro Lever Limit Switch on supported WorkBee models.
Compatibility
By default, this limit switch is designed to be mounted using two M2.5 bolts. However, if your WorkBee is pre-Z1+, your existing limit switch may be mounted with M3 bolts instead.
If you have M3 bolts, you can still use this limit switch, you’ll need to drill out the mounting holes using a 3mm drill bit so your existing bolts fit.
| Brand | Ooznest |
|---|---|
| Stock Type | New |
| Weight (g) | 13.90 |
| Version | Z-Axis – 750x750mm/750x1000mm |
| For WorkBee Models | 1.0, 2.0, 2.1, 2.2, 2.2.1, 2.3, 2.3.1, Z1+ |
| For WorkBee Axis | Z |
| For WorkBee Sizes (mm) | 750×750, 750×1000 |
| Controller Side Connector | Molex 22-01-1032 |
| Controller Side Pinout | COM – Blank – NC |
| Wire Length (mm) | 1330 |
| Wire Conductor Size (mm2) | 0.25 (24AWG) |
| Wire Insulation Material | Silicone |
| Limit Switch Type | Mechanical |
| Actuating Type | Lever |
| Contact Configuration | Normally Closed |
| Maximum Voltage (V) | 250 |
| Maximum Current (A) | 3 |
What's Included
| Name | Quantity |
|---|---|
| WorkBee Replacement Z-Axis 750x750mm & 750x1000mm Micro Lever Limit Switch (1330mm Length) | 1 |
External Links
| Description | Links |
|---|---|
| Assembly Manual | Link |
