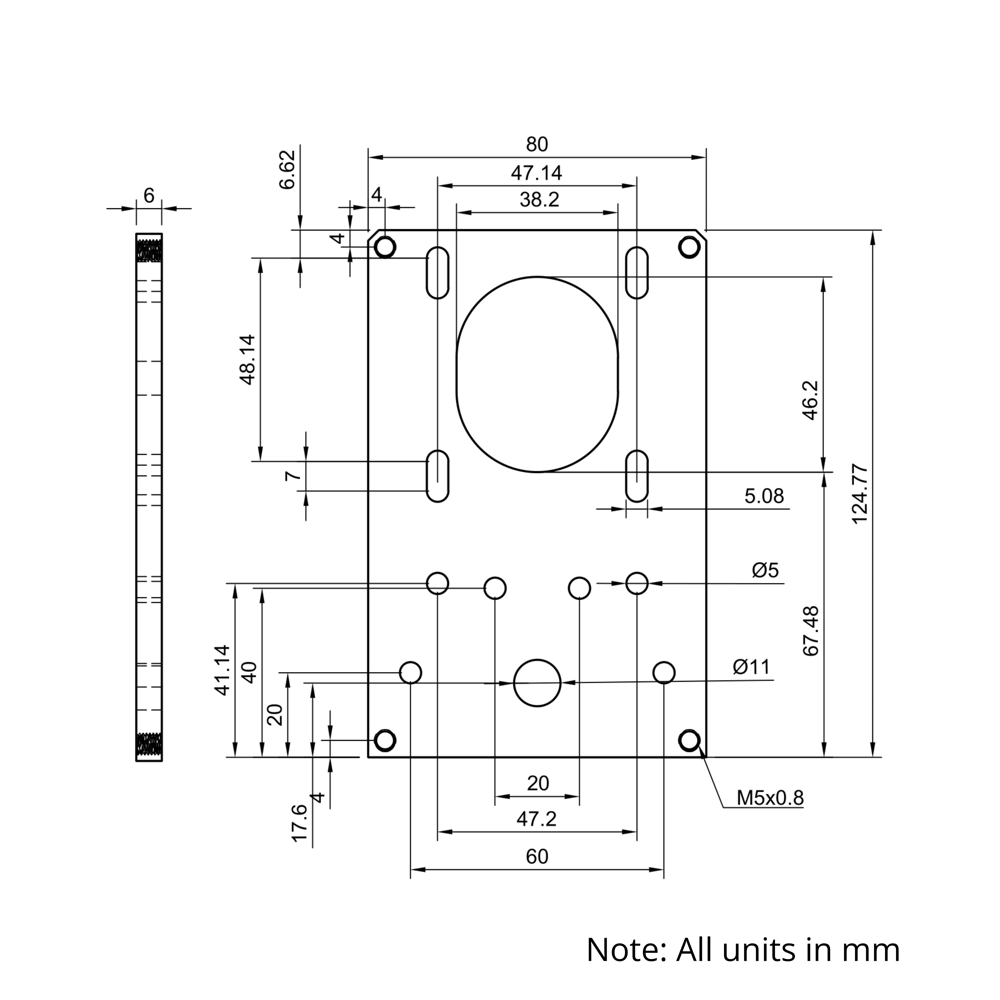

NEMA23 C-Beam Screw Drive Motor Mount Stand Off is a precisely machined aluminium bracket designed to reverse-mount a NEMA23 stepper motor behind a C-Beam Aluminium Extrusion using the NEMA23 C-Beam Screw Drive Motor Mount. Manufactured from high-strength black anodised aluminium, this stand off offsets the motor 180 degrees from the lead screw and enables power transmission via a timing belt and pulley system. It offers a clean, compact setup that reduces system length allowing for more flexible mechanical layouts.
Key Features
- NEMA23 Stepper Motors: Precision mounting holes ensure secure alignment for NEMA23 stepper motors driving lead screws via a timing belt and pulley system.
- C-Beam Compatible: Installs in combination with the NEMA23 C-Beam Screw Drive Motor Mount.
- Compact, Space-Saving Design: Allows motor placement behind the extrusion to reduce system length.
- Aluminium Construction: Made from high-strength black anodised aluminium for rigidity and corrosion resistance.
Application
The NEMA23 C-Beam Screw Drive Motor Mount Stand Off is ideal for screw-driven linear actuators, CNC machines, and other motion systems where space-saving is required. It provides a rigid, reliable solution for mounting NEMA23 stepper motors behind the extrusion, ensuring compact lead screw operation.
patrick hayes
Well made and accurate with good finish
