NEMA23 C-Beam Screw Drive Motor Mount Stand Off
Offset a NEMA23 stepper motor behind the C-Beam extrusion with this stand off, ideal for compact lead screw assemblies.

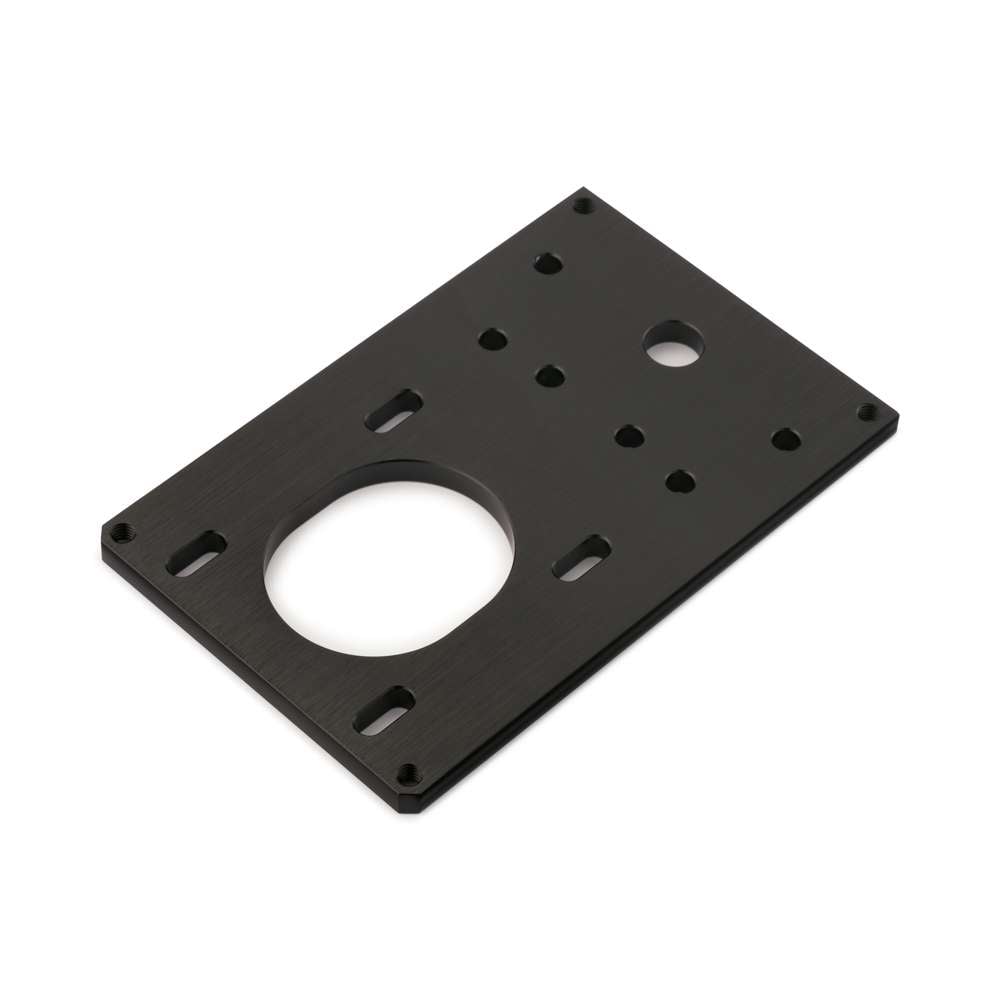

NEMA23 C-Beam Screw Drive Motor Mount Stand Off is a precisely machined aluminium bracket designed to reverse-mount a NEMA23 stepper motor behind a C-Beam Aluminium Extrusion using the NEMA23 C-Beam Screw Drive Motor Mount. Manufactured from high-strength black anodised aluminium, this stand off offsets the motor 180 degrees from the lead screw and enables power transmission via a timing belt and pulley system. It offers a clean, compact setup that reduces system length allowing for more flexible mechanical layouts.
Key Features
- NEMA23 Stepper Motors: Precision mounting holes ensure secure alignment for NEMA23 stepper motors driving lead screws via a timing belt and pulley system.
- C-Beam Compatible: Installs in combination with the NEMA23 C-Beam Screw Drive Motor Mount.
- Compact, Space-Saving Design: Allows motor placement behind the extrusion to reduce system length.
- Aluminium Construction: Made from high-strength black anodised aluminium for rigidity and corrosion resistance.
Application

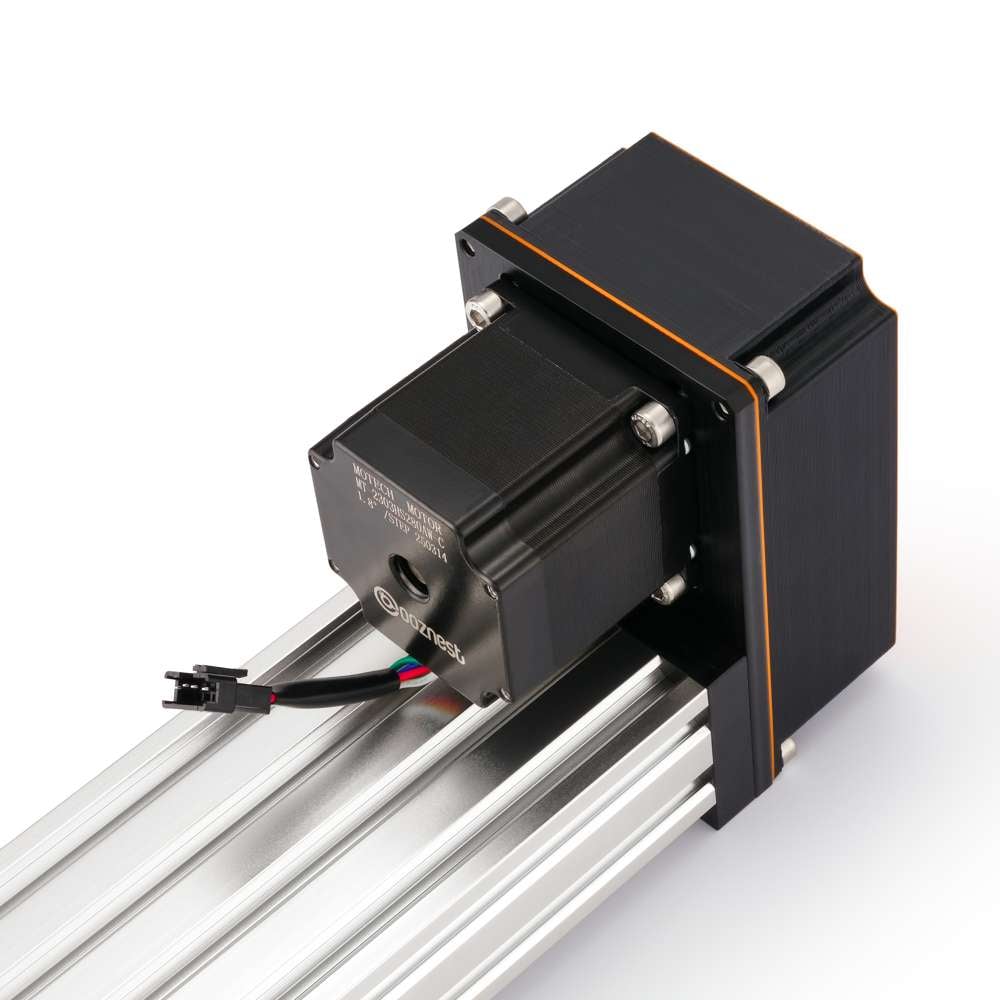

The NEMA23 C-Beam Screw Drive Motor Mount Stand Off is ideal for screw-driven linear actuators, CNC machines, and other motion systems where space-saving is required. It provides a rigid, reliable solution for mounting NEMA23 stepper motors behind the extrusion, ensuring compact lead screw operation.
| Brand | Ooznest |
|---|---|
| Stock Type | New |
| Weight (g) | 135.00 |
| Profile Series | 20 Series |
| Material | 6061 T-5 Aluminium |
| Surface Finish | Anodised |
| Colour | Black |
| Thickness (mm) | 6 |
| For Stepper Motor Type | NEMA23 |
| For Lead Screw Diameters (mm) | 8 |
| For Profiles | 40×80 (C-Beam) |
| Transmission Type | Lead Screw Drive |
| For Profile Types | T/V-Slot (C-Beam) |
What's Included
| Name | Quantity |
|---|---|
| NEMA23 C-Beam Screw Drive Motor Mount Stand Off | 1 |
