NEMA17 & NEMA14 V-Slot Belt Drive Motor Mount
Easily attach stepper motors to T/V-Slot extrusion with this rigid, anodised aluminium mount, ideal for precise belt-driven motion systems.

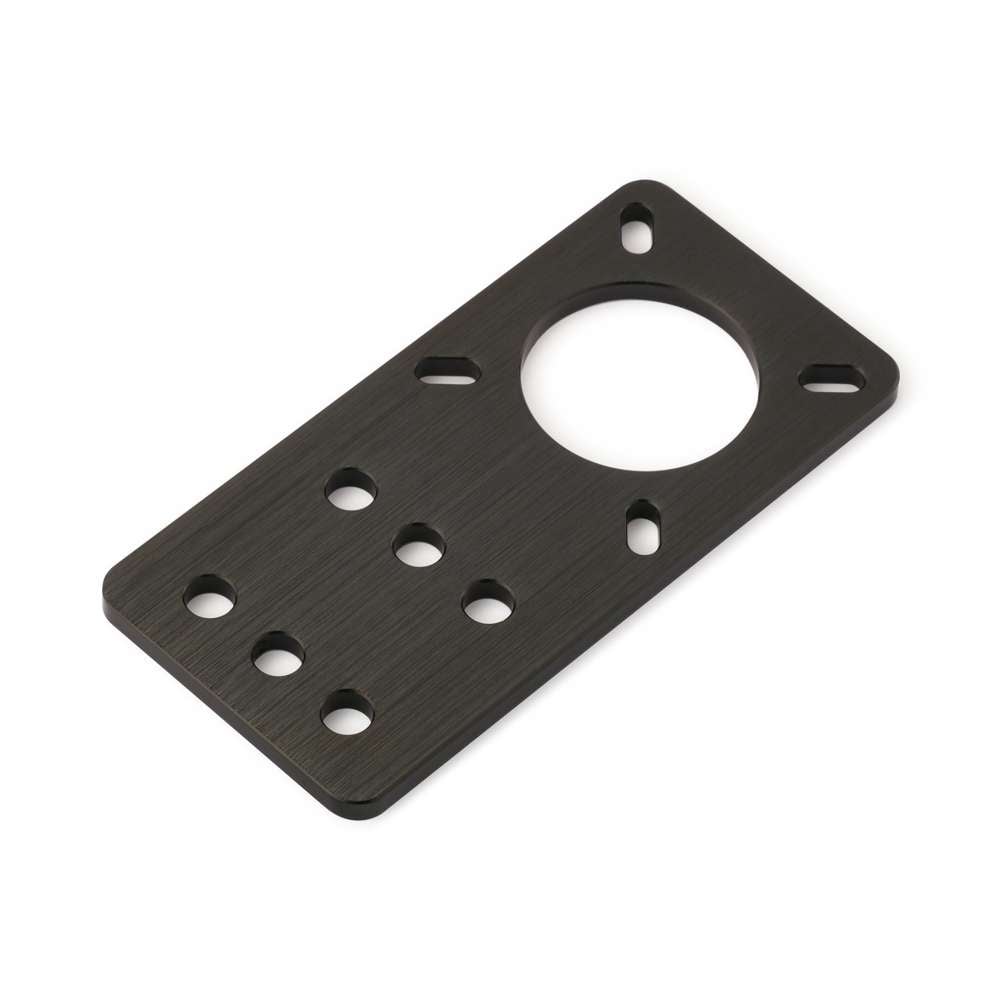

NEMA17 & NEMA14 V-Slot Belt Drive Motor Mount is a precisely machined aluminium mount designed to securely attach a NEMA17 or NEMA14 stepper motor to T/V-Slot Aluminium Extrusions. Manufactured from high-strength black anodised aluminium, this mount provides a reliable foundation for belt-driven linear motion systems and is ideal for driving gantry plates in automation applications. Its design aligns perfectly with the slots on the aluminium extrusion profile, ensuring precise stepper motor placement. The mount offers a rigid platform for motor operation while maintaining easy assembly and alignment with your T/V-Slot Aluminium Extrusion.
Key Features
- NEMA17 & NEMA14 Stepper Motors: Precision mounting holes ensure secure, accurate alignment for NEMA17 & NEMA14 stepper motors.
- V-Slot Compatible: Mounts directly to T/V-Slot Aluminium Extrusions for seamless integration with motion assemblies.
- Belt Drive Ready: Ideal for timing belt transmission setups, allowing efficient drive of linear axes.
- Aluminium Construction: Made from high-strength black anodised aluminium for rigidity and corrosion resistance.
Application

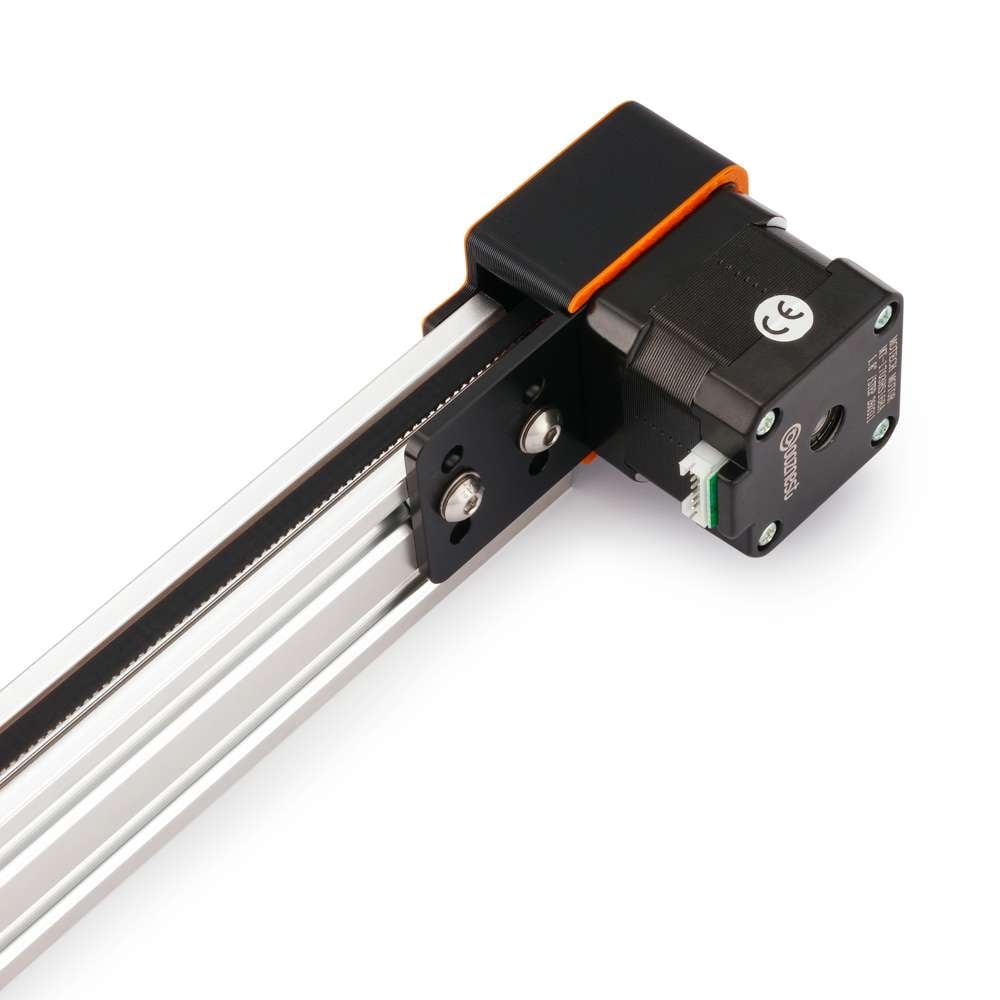

Belt drive motor mounts are perfect for driving gantry plates in belt-driven linear actuators, CNC machines, 3D printers, and positioning systems. They provide a strong, adaptable interface between your stepper motor and extrusion, supporting precise and reliable motion in a wide range of mechanical projects.
| Brand | Ooznest |
|---|---|
| Stock Type | New |
| Weight (g) | 20.00 |
| Profile Series | 20 Series |
| Material | 6061 T-5 Aluminium |
| Surface Finish | Anodised |
| Colour | Black |
| Thickness (mm) | 3 |
| For Stepper Motor Type | NEMA14, NEMA17 |
| For Profiles | 20×40, 20×60, 20×80 |
| Transmission Type | Belt Drive |
| For Profile Types | T/V-Slot |
What's Included
| Name | Quantity |
|---|---|
| NEMA17 & NEMA14 V-Slot Belt Drive Motor Mount | 1 |
