SKU: DIN-20-M4
(13)

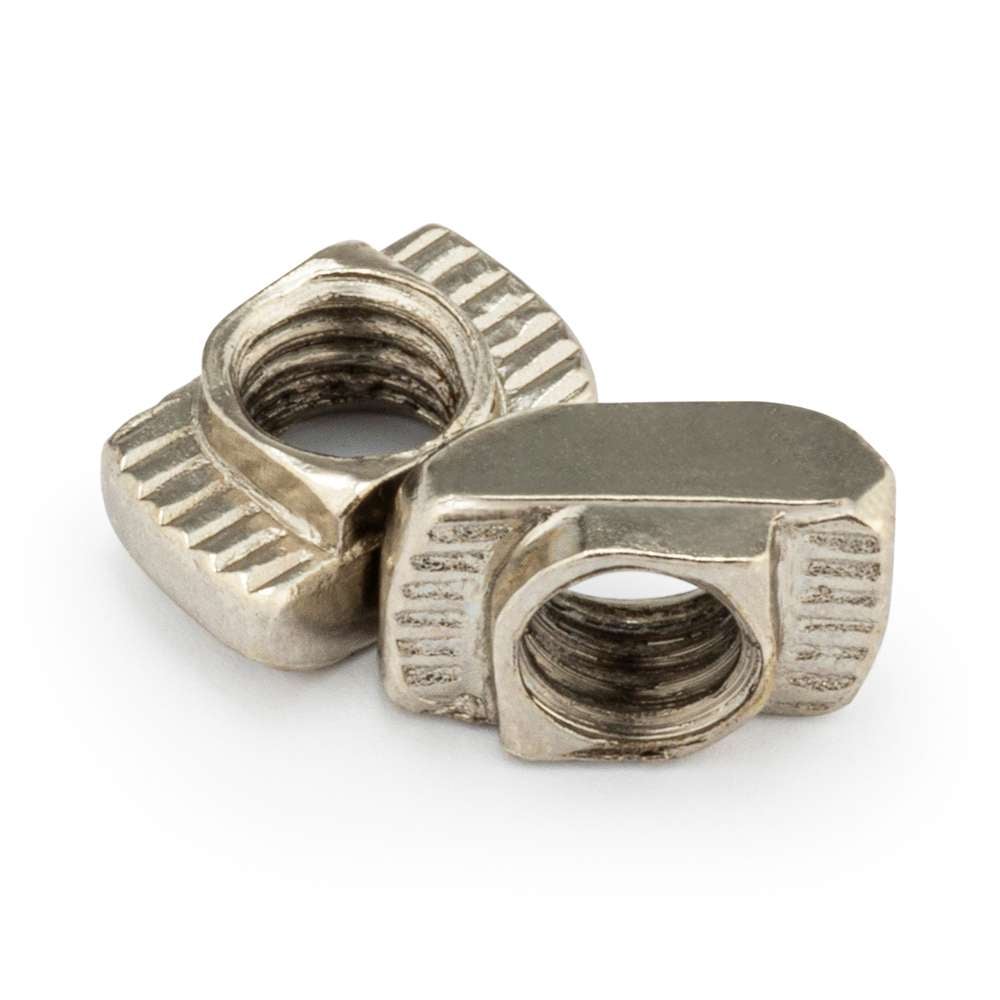

2 x Drop In Nut - T/V-Slot - 20 Series - M4

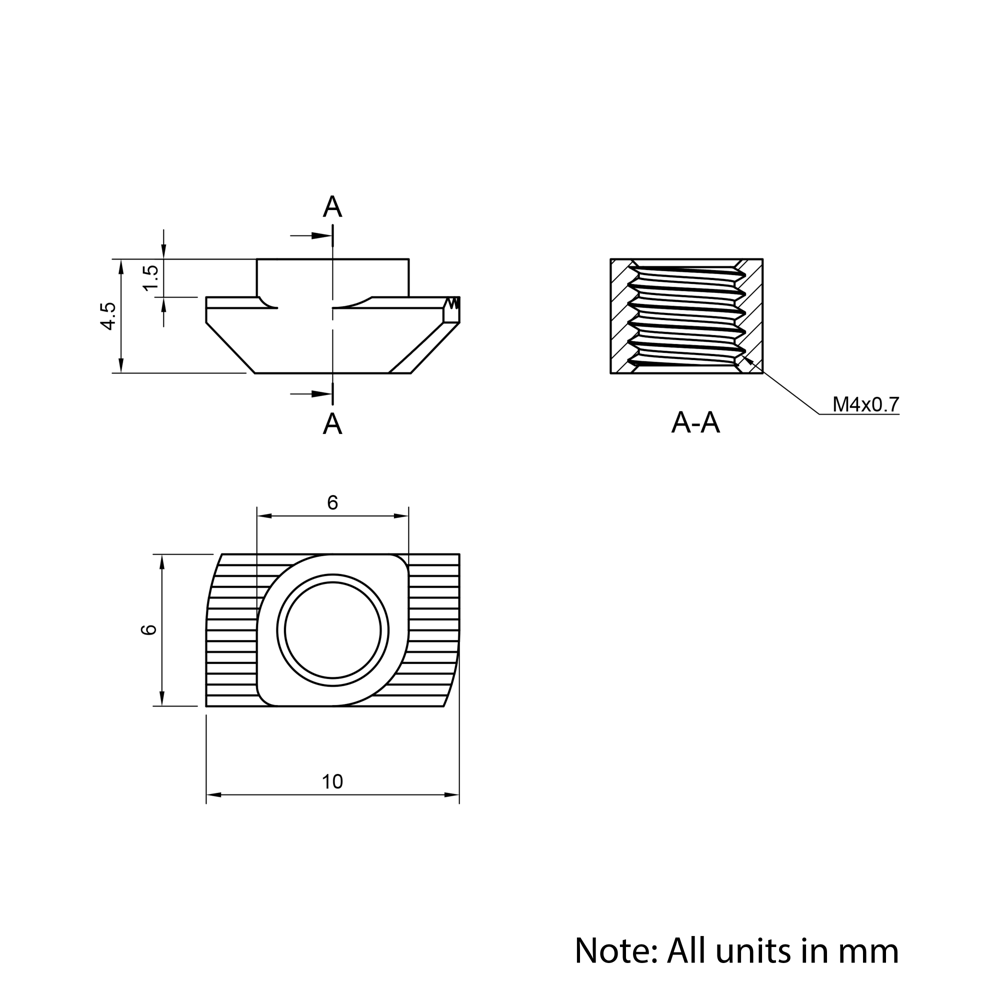

Technical Drawing Of Drop In Nut - T/V-Slot - 20 Series - M4

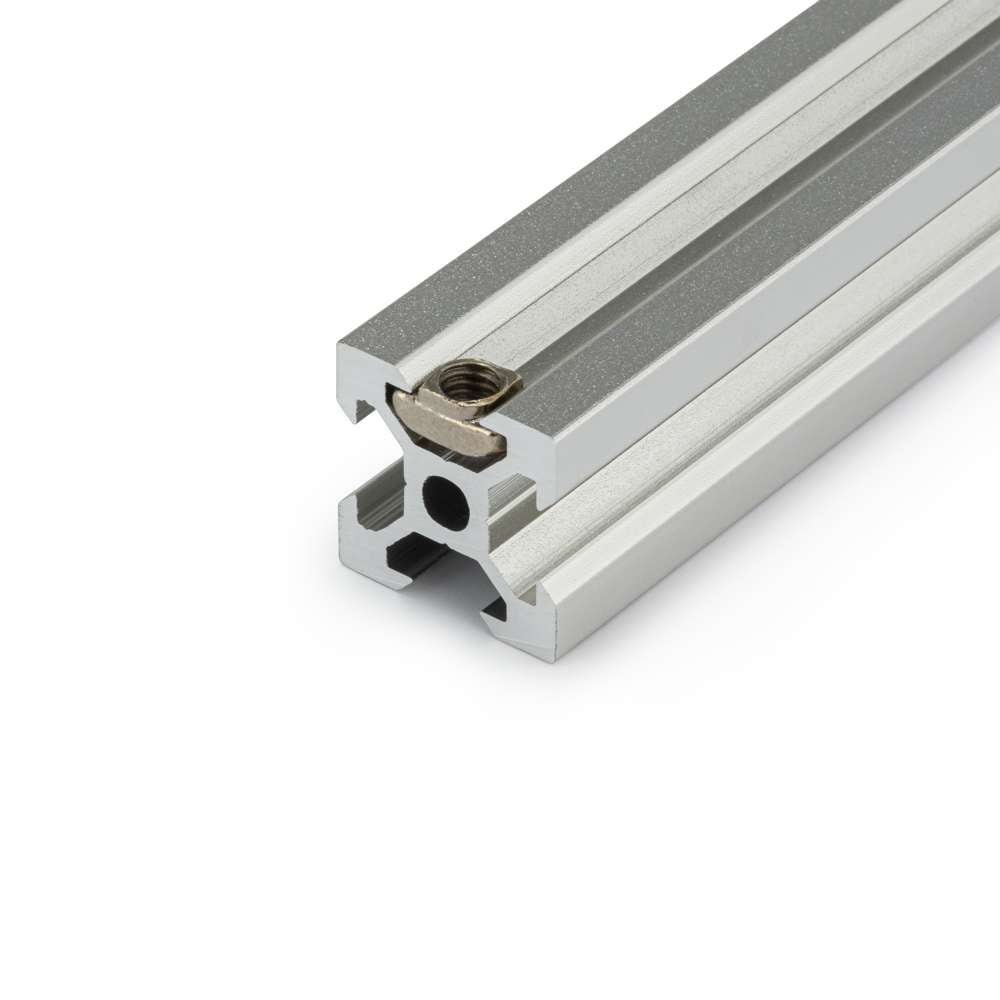

Drop In Nut - T/V-Slot - 20 Series - M4 Inside Aluminium Extrusion
2 x Drop In Nut - T/V-Slot - 20 Series - M4
Technical Drawing Of Drop In Nut - T/V-Slot - 20 Series - M4
Drop In Nut - T/V-Slot - 20 Series - M4 Inside Aluminium Extrusion
2 x Drop In Nut - T/V-Slot - 20 Series - M4
Technical Drawing Of Drop In Nut - T/V-Slot - 20 Series - M4
Drop In Nut - T/V-Slot - 20 Series - M4 Inside Aluminium Extrusion
2 x Drop In Nut - T/V-Slot - 20 Series - M4
Technical Drawing Of Drop In Nut - T/V-Slot - 20 Series - M4
Drop In Nut - T/V-Slot - 20 Series - M4 Inside Aluminium Extrusion

Please rotate your device to landscape

3D Model Drawing

Drop In Nuts provide medium-strength, flexible fastening on vertical & horizontal planes for extrusi…

Read More
Brand:
(13)

M4 20 Series T/V-Slot Drop In Nut (Nickel Plated)

Reset Selection
Customise
There are no customisation options for this product.
Create A Bundle

There are no bundled options for this product.

QuantityUnit PriceDiscount
Selected price:1 – 9£0.220%
10 – 24£0.215%
25 – 49£0.1815%
50 – 99£0.1625%
100 – 249£0.1340%
250 – 499£0.1150%
500 – 999£0.0960%
1000+£0.0865%

£0.22 (Inc VAT)

7134 in Stock
Delivery
Next Day
Click & Collect
Not Available
Returns
30 Days

M4 20 Series T/V-Slot Drop In Nuts are a practical fastening solution designed for use with aluminium extrusion systems. These nuts can be inserted directly into the T/V-Slot from the face of the extrusion, making them convenient for modifications and adjustments without disassembling the frame. Nickel-plated for improved corrosion resistance, these nuts offer a balance of affordability and ease of use for a range of applications in modular framing and medium-duty assemblies.

Pros and Cons

Drop In Nuts are a medium-strength solution for applications without end access

PROS CONS
  • Cost-Effective: Drop In Nuts are one of the most affordable options for aluminium extrusion systems.
  • Medium Strength: Drop In Nuts offer a balanced strength suitable for most medium-duty applications.
  • No Plane Limitation: Suitable for both vertical and horizontal planes, offering more flexibility in design.
  • No Advanced Planning Needed: Can be inserted from the face of the extrusion, allowing for flexibility in adding or adjusting nuts as needed.
  • Corrosion resistant: Nickel plating provides basic protection against rust.
  • Low Reliability: These nuts have lower reliability compared to other options, requiring careful installation to ensure secure engagement.

Application

Drop In Nuts are specifically designed to complement our aluminium extrusion systems, providing easy to use and medium-strength fastening for a wide range of structures and assemblies. Ideal for both professional engineers and DIY enthusiasts, these nuts offer a practical solution for constructing adjustable and reliable structures. Their ease of use and compatibility make them a practical choice for any project requiring efficient and secure assembly.

Brand

Ooznest
Stock Type

New
Weight (g)

1.10
Profile Series

20 Series
Material

Carbon Steel
Surface Finish

Nickel Plated
Colour

Natural
Thread

M4
Thread Pitch (mm)

0.7
Insertion Type

Face
ESD Connection

Yes
Version

Carbon Steel (Zinc/Nickel Plated)
Pull Out Loading Rating (N)

684
M4 20 Series T/V-Slot Drop In Nut (Nickel Plated) x1
Resources Page
Product & Assembly 3D Viewer

Delivery

  • Free UK Mainland Shipping: Orders over £120 Incl. VAT qualify for free next day shipping.
  • Same Day Dispatch: Orders placed before 13:00 are dispatched the same day.
  • Worldwide Shipping: Available for international orders.

For more details, visit Delivery Information

Returns

  • 30-Day Return: Items can be returned within 30 days of delivery.
  • Condition: Must be in original packaging and ‘as-new’ condition.
  • Refunds: Issued after inspection, excluding original shipping costs.
  • No Exchanges: Only refunds are provided.
  • Return Costs: Customers bear return postage costs and should use a tracked service.

For more details, visit Returns

4.9
13 reviews
5 Stars
12
4 Stars
1
3 Stars
0
2 Stars
0
1 Stars
0

  1. Guest

    product drops in as expected, takes an M4 bolt, but does not make a decent cup of tea…

    3 years ago

  2. Phil Hicks

    Exactly as described and what I needed

    4 years ago

  3. Ziyu Meng

    Well fitted with M4*8 Screw

    4 years ago
Description

M4 20 Series T/V-Slot Drop In Nuts are a practical fastening solution designed for use with aluminium extrusion systems. These nuts can be inserted directly into the T/V-Slot from the face of the extrusion, making them convenient for modifications and adjustments without disassembling the frame. Nickel-plated for improved corrosion resistance, these nuts offer a balance of affordability and ease of use for a range of applications in modular framing and medium-duty assemblies.

Pros and Cons

Drop In Nuts are a medium-strength solution for applications without end access

PROS CONS
  • Cost-Effective: Drop In Nuts are one of the most affordable options for aluminium extrusion systems.
  • Medium Strength: Drop In Nuts offer a balanced strength suitable for most medium-duty applications.
  • No Plane Limitation: Suitable for both vertical and horizontal planes, offering more flexibility in design.
  • No Advanced Planning Needed: Can be inserted from the face of the extrusion, allowing for flexibility in adding or adjusting nuts as needed.
  • Corrosion resistant: Nickel plating provides basic protection against rust.
  • Low Reliability: These nuts have lower reliability compared to other options, requiring careful installation to ensure secure engagement.

Application

Drop In Nuts are specifically designed to complement our aluminium extrusion systems, providing easy to use and medium-strength fastening for a wide range of structures and assemblies. Ideal for both professional engineers and DIY enthusiasts, these nuts offer a practical solution for constructing adjustable and reliable structures. Their ease of use and compatibility make them a practical choice for any project requiring efficient and secure assembly.

Specifications
Brand

Ooznest
Stock Type

New
Weight (g)

1.10
Profile Series

20 Series
Material

Carbon Steel
Surface Finish

Nickel Plated
Colour

Natural
Thread

M4
Thread Pitch (mm)

0.7
Insertion Type

Face
ESD Connection

Yes
Version

Carbon Steel (Zinc/Nickel Plated)
Pull Out Loading Rating (N)

684
