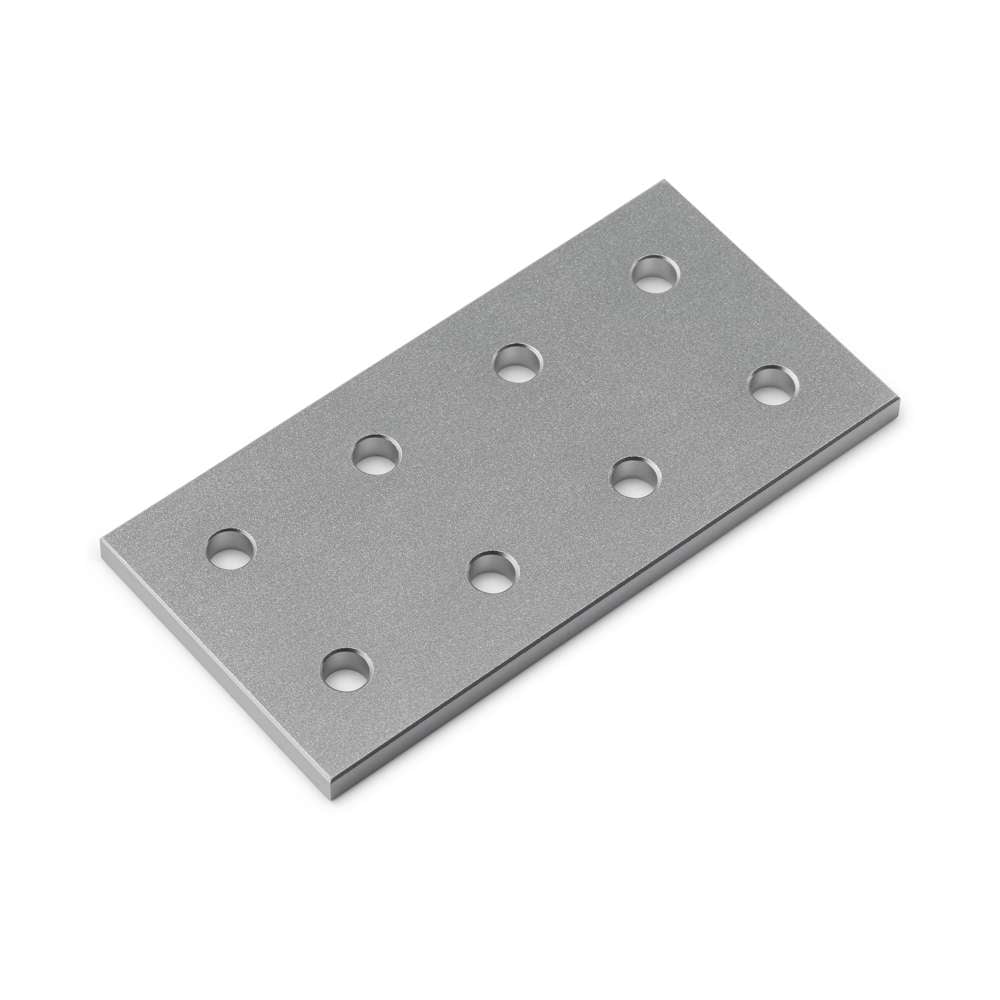

Double Slot 20 Series 8 Hole Plate Connector (Aluminium)

Reset Selection
Customise
There are no customisation options for this product.
Create A Bundle
QuantityUnit PriceDiscount
Selected price:1 – 9£5.940%
10 – 24£5.645%
25 – 49£5.3510%
50 – 99£4.7520%
100 – 249£4.1630%
250 – 499£3.8635%
500+£3.5640%

*Unit price does not include bundle items

£5.94 (Inc VAT)

1448 in Stock
Delivery
Next Day
Click & Collect
Not Available
Returns
30 Days

Aluminium Double Slot 20 Series 8 Hole Plate Connectors provide a strong, stable, and aesthetically refined solution for creating secure end-to-end, 90-degree, and T joints in aluminium extrusion assemblies. Designed for high shear, moment, and torsional resistance depending on configuration, these connectors offer high structural integrity of frameworks without requiring any machining. These brackets are ideal for machine enclosures, industrial workstations, and other demanding structural applications.

Pros and Cons

Plate Connectors for adjustable and strong aluminium extrusion assemblies.

Pros Cons
  • No Machining Required: Simplifies assembly by eliminating the need for complex modifications to the extrusion.
  • High Shear, Moment, and Torsional Resistance: Provides maximum strength and stability for demanding applications.
  • Adjustable: Allows for flexibility and easy reconfiguration in your design.
  • Leaves Extrusion Slots Clear: Allows full access to slots for additional components or panels.
  • Time Consuming: Requires additional fastening steps compared to some other connectors.
  • Visible Fixing: Bracket and fixings remain exposed in finished assemblies.

Application

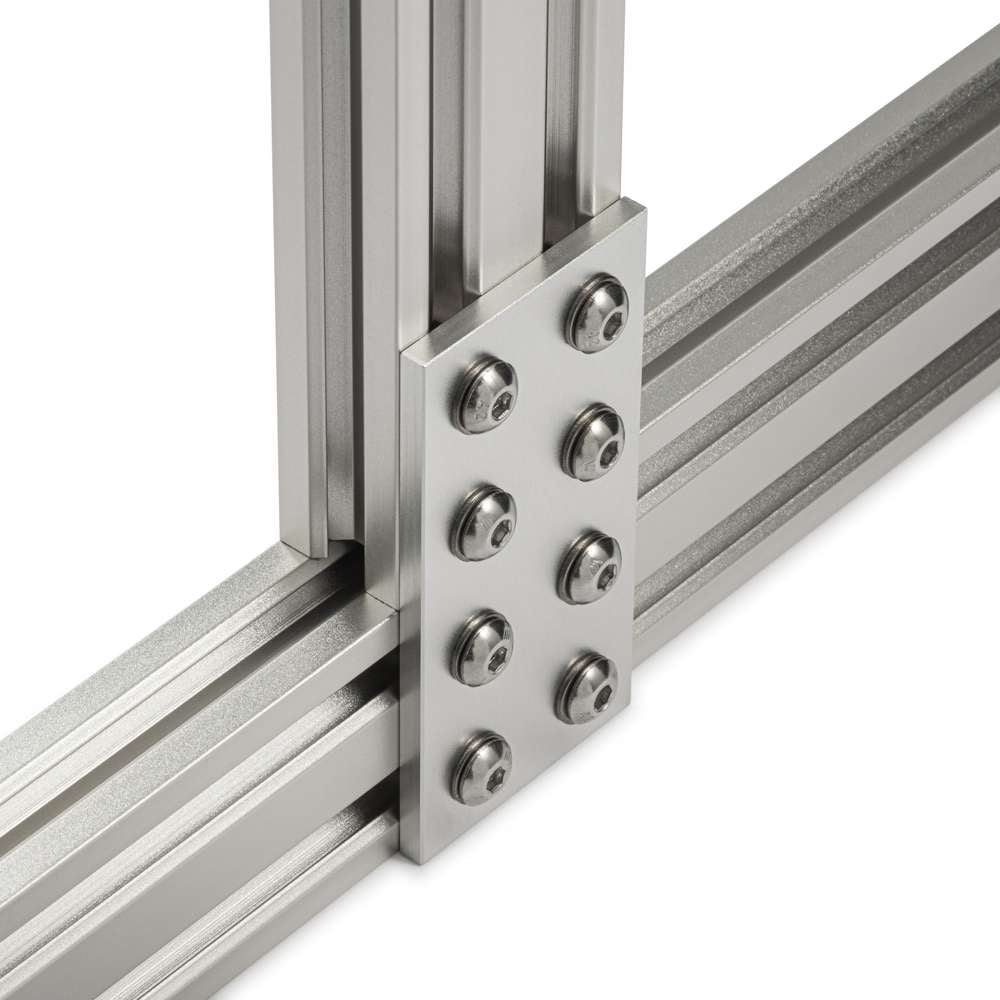

Plate Connectors are designed for use with 20 Series T-Slot Aluminium Extrusions to create strong and stable end-to-end, 90-degree, and T-joint connections. These plates offer excellent shear, moment, and torsional resistance, making them suitable for high-strength structural frameworks, machine enclosures, and modular assemblies. Their adaptability ensures a reliable connection in various configurations while maintaining ease of assembly and long-term durability. Unlike other corner brackets, they leave the internal extrusion slots completely clear, allowing for unrestricted mounting of panels, accessories, or additional structural components.

Brand

Ooznest

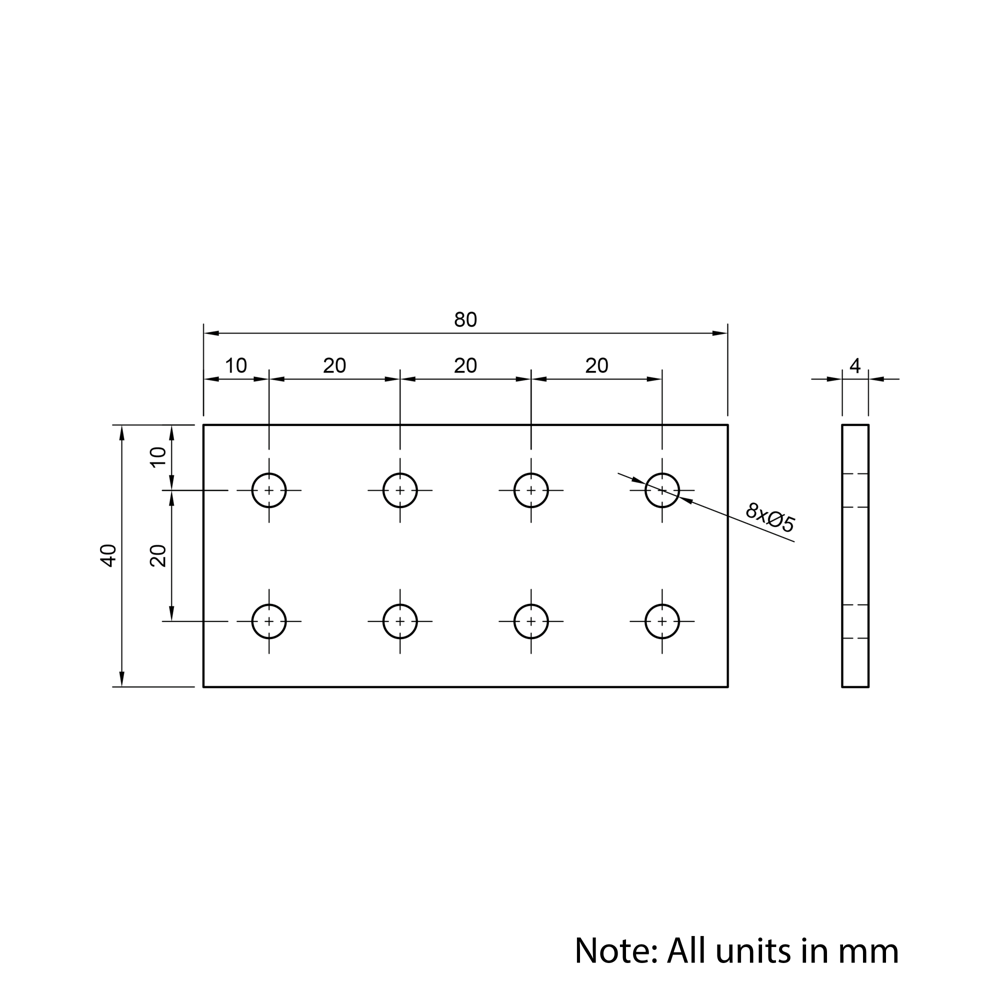

Thickness (mm)

4

Stock Type

New

Number Of Fixing Points

8

Weight (g)

32.80

Fixings Spacing (mm)

20

Profile Series

20 Series

Number Of Ways

3

Material

6063 T-5 Aluminium

Connecting Angle (°)

90, 180

Surface Finish

Anodised

Version

Double Slot

Colour

Silver

Double Slot 20 Series 8 Hole Plate Connector (Aluminium) x1
