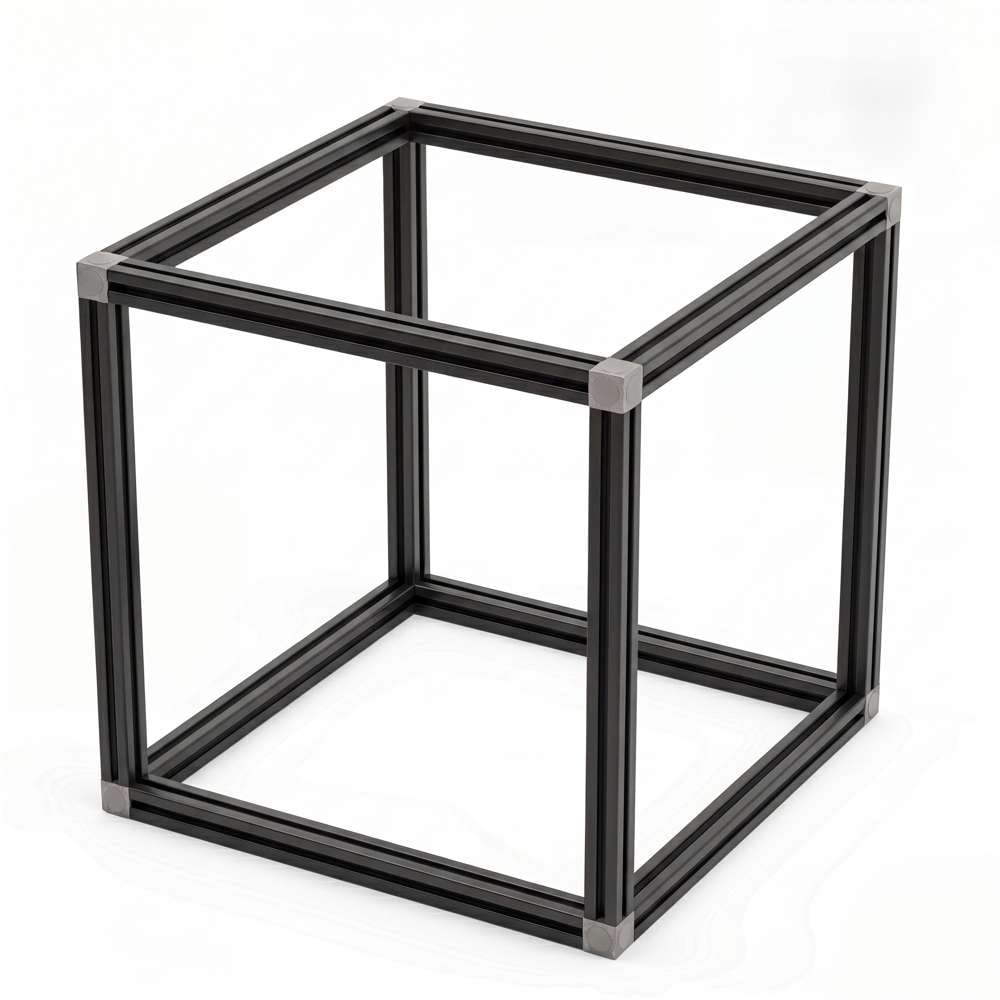

Black 500x500x500mm 20 Series T/V-Slot Aluminium Cuboid Frame
Aluminium extrusion cuboid frame for testing rigs, prototyping, or retail displays. Standard or custom sizes provide a rigid, modular foundation.
Black 500x500x500mm 20 Series T/V-Slot Aluminium Cuboid Frame provides a stable, modular foundation for constructing testing rigs, industrial prototyping platforms, mechanical enclosures, or retail displays. The T/V-Slot aluminium extrusion profiles facilitate the direct integration of linear rails, sensor mounts, and protective panelling, functioning as a structural base for automated equipment or retail displays.
To streamline the development cycle, this self build solution eliminates the need to choose hardware components, delivering all required aluminium profiles and accessories in a single package that is available in standard sizes or fully customisable dimensions.
Key Features
- Structural Foundation: Delivers a stable framework optimised for mechanical prototyping, testing apparatus, and equipment stands.
- Continuous T/V-Slot Integration: Provides four-sided mounting channels along the entire frame for the infinite positioning and rapid adjustment of accessories, sensors, and hardware.
- Enclosure & Panelling Ready: Functions as an ideal core framework for mounting protective guarding, industrial panels, or display surfaces.
- Streamlined Sourcing & Sizing: Simplifies procurement by providing a complete, ready-to-assemble solution with pre-selected components, available in standard or custom dimensions.
Application
The highly adaptable and rigid nature of these cuboid frames makes it suitable for constructing testing rigs and prototyping frames in laboratory or development environments. It serves as a dependable primary structure for building custom machinery enclosures, guarding, and automated test equipment stands. Beyond industrial machinery applications, the clean structural lines and high stability translate effectively to retail plinths or displays, or serving as foundational frameworks for robotic and sensor arrays.
| Brand | Ooznest |
|---|---|
| Stock Type | New |
| Weight (g) | 828.16 |
| Profile Series | 20 Series |
| Profile | 20×20 |
| Colour | Black |
| Slot Width (mm) | 6.13 |
| Slot Depth (mm) | 6.1 |

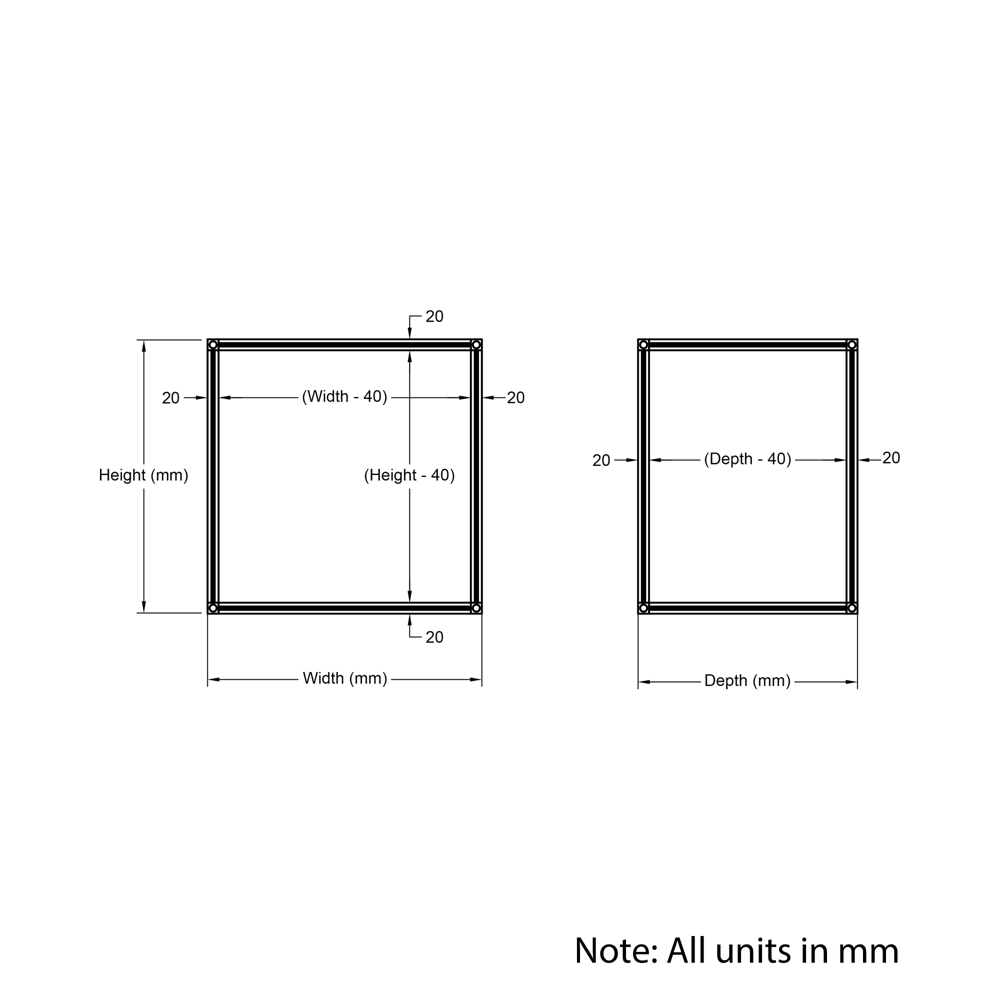

| Width (mm) | 500 |
| Depth (mm) | 500 |
| Height (mm) | 500 |
| Minimum Panel Thickness (mm) | 3 |
| Maximum Panel Thickness (mm) | 4 |
| Load Rating (Kg) | 20.00 |
| Frame Size (W x D x H) (mm) | 500x500x500 |
| Notes |
|---|
| The stated load rating (kg) applies exclusively to a normally distributed static load placed on top of the assembled cuboid frame. |
| We offer customisations for this product. Please read the instructions below to submit your requirements correctly. |
|---|
| Width / Depth / Height (mm) |
|---|
|
What's Included
| Name | Quantity |
|---|---|
| Black 500x500x500mm 20 Series T/V-Slot Aluminium Cuboid Frame | 1 |
