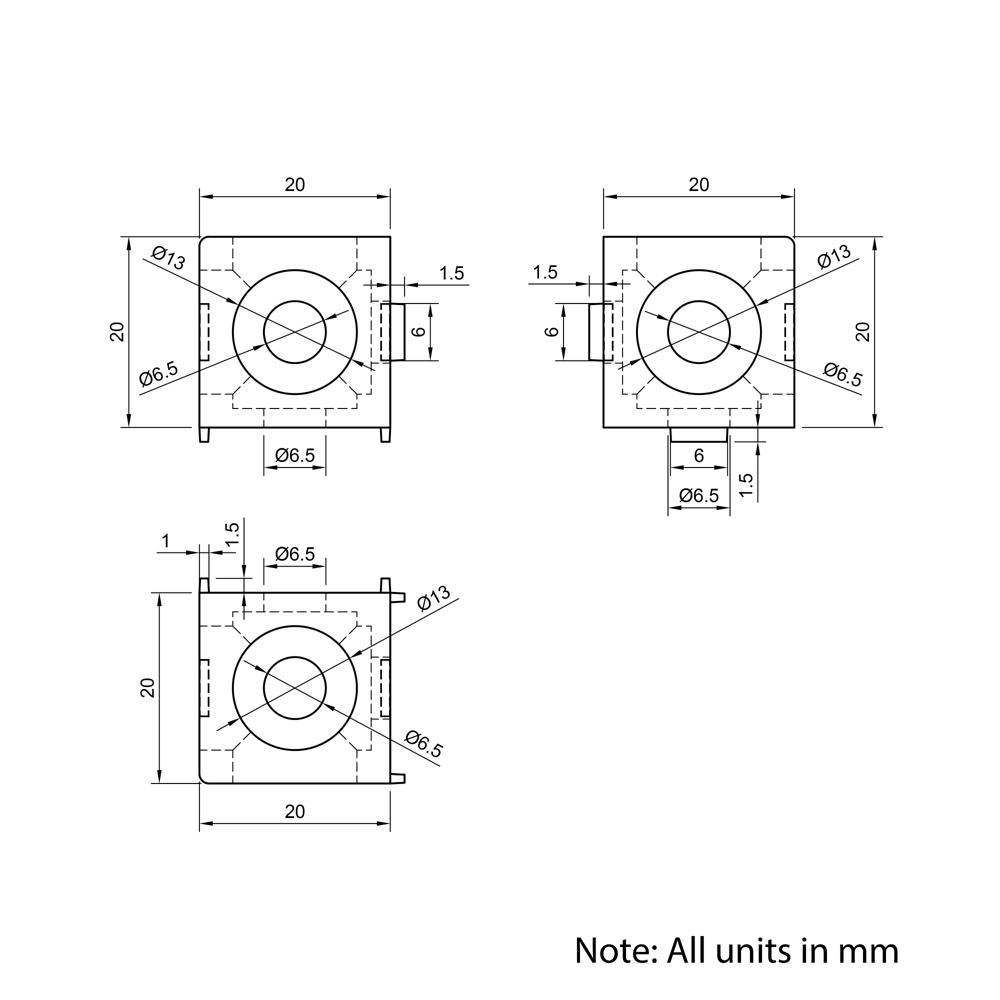

3 Way 20 Series Cube Corner Brackets provide a a strong, efficient, and aesthetically refined solution for creating secure 90-degree joints in aluminium extrusion assemblies. Designed for high shear resistance with medium moment and low torsional resistance, these brackets ensure secure and stable connections while leaving the extrusion slots completely clear for additional components or panels. Their included cover cap conceals fixings, enhancing the appearance of the assembly while also making it easier to clean. Cube Corner Brackets enable faster assembly but require the ends of extrusions to be tapped for installation.
Pros and Cons
Cube Corner Brackets for efficient, strong and clean-finish aluminium extrusion assemblies.
| Pros | Cons |
|---|---|
|
|
Application
Cube Corner Brackets are designed for use with 20 Series T-Slot Aluminium Extrusions to create strong and efficient 90-degree connections. Their high shear strength and fast assembly make them ideal for industrial frameworks, modular workstations, and enclosures. Unlike other corner brackets, they leave the extrusion slots completely clear, allowing for unrestricted mounting of panels, accessories, or additional structural components. The included cover caps provide a polished finish and help maintain a clean assembly.
S.Fulford
Sturdy construction and easy to use. Works perfectly to join 3 pieces together.
Jesus Toscano
Works really well. You need some M5 screws which conceal their head into the holes. Very strong assembly.
Robin
Excellent solution for joining extruded sections.
