Small Gantry NEMA23 Belt Drive Actuator (20x40mm, 859mm Travel)
NEMA23 belt drive actuator for fast, controlled movement of medium loads over longer distances. Built from our modular aluminium extrusion system.

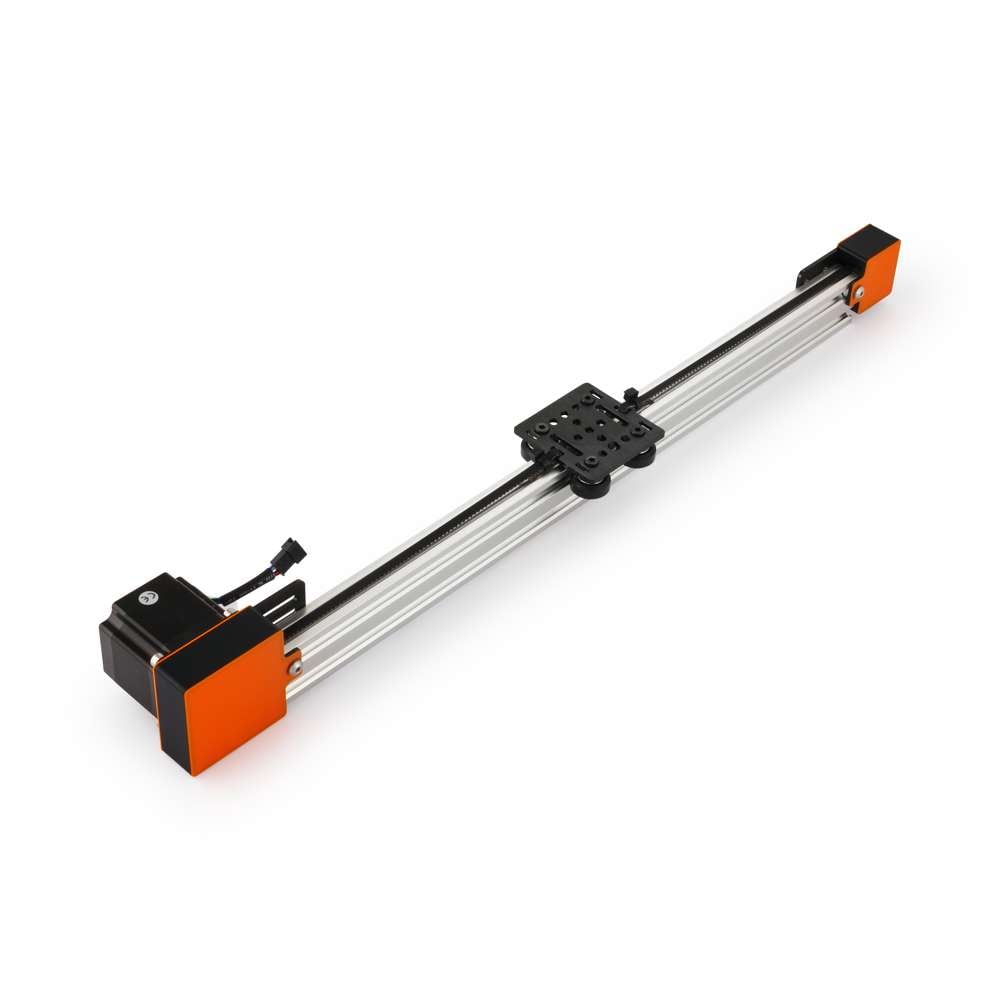

Small Gantry NEMA23 Belt Drive Actuator (20x40mm, 859mm Travel) is a belt-driven linear actuator designed for use with a NEMA23 stepper motor. It converts rotary motion into linear movement, providing a practical solution for applications that require fast travel over longer distances with controlled positioning. Built around our modular aluminium extrusion system, the actuator offers a cost-effective solution for linear motion and is easy to integrate into a complete system or machine.
Key Features
- Belt Drive: Converts motor rotation into linear movement through a belt and pulley mechanism.

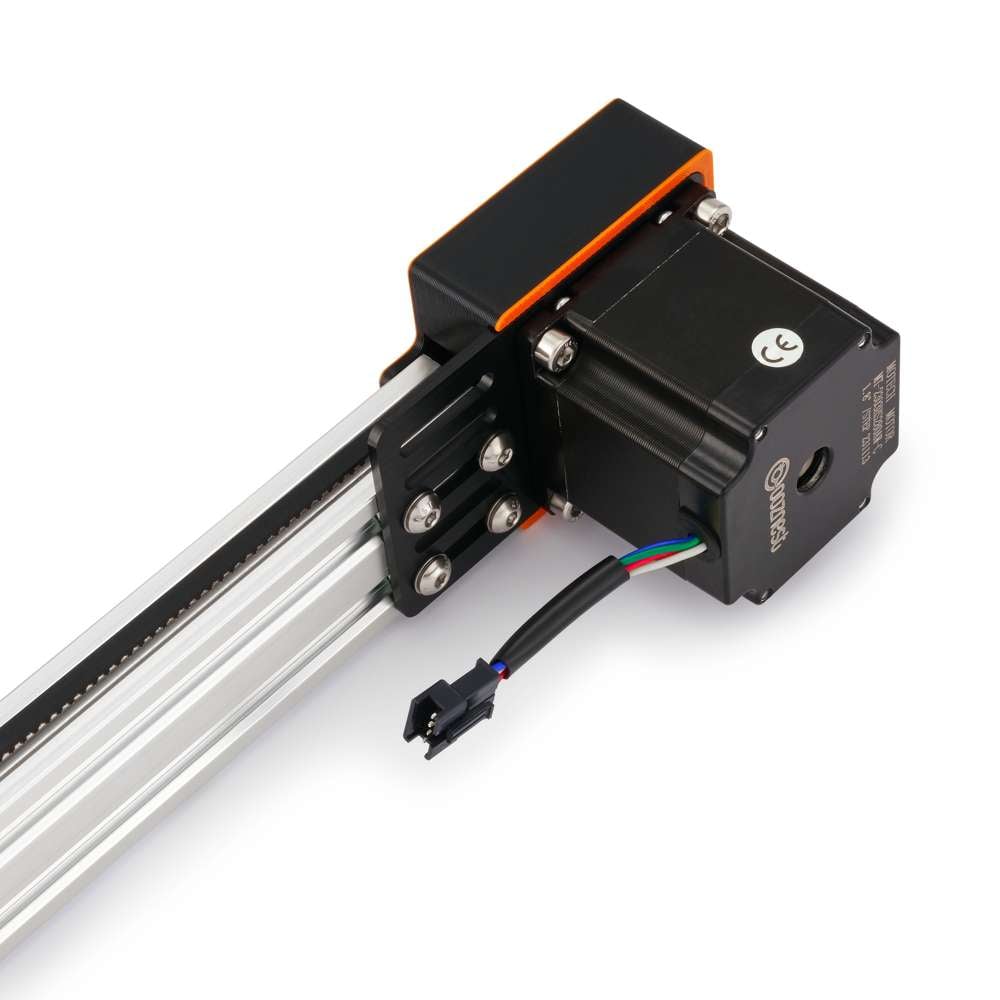

- Motor Compatibility: Designed for use with a NEMA23 stepper motor.
- Fast Travel: Belt-driven motion is well suited to applications that require rapid movement between positions.
- Long-Travel Potential: Well suited to applications that require movement over longer distances.
- Linear Positioning: Provides controlled movement along a single axis when paired with a suitable motor and control system.
- Modular Construction: Uses parts from our aluminium extrusion system for easy integration into a complete system or machine.
Pros and Cons
Choose a NEMA23 Belt Drive Actuator if you want to move a medium load quickly or over a long distance.
| Pros | Cons |
|---|---|
|
|
Application
Linear actuators can be used in positioning systems for sensors and inspection cameras, small automation projects such as parts feeders and sorting mechanisms, and camera sliders for video and time-lapse photography. They can also be combined to create 2-axis or 3-axis machines for pen plotting, laser cutting, CNC machining or 3D printing, with actuator selection depending on the load and precision required. They are suitable for researchers, developers, businesses and personal use. Their cost-effectiveness and modular construction make them easy to integrate into a wide range of applications.
| Brand | Ooznest |
|---|---|
| Stock Type | New |
| Weight (g) | 1240.91 |
| Precision (mm) | +/- 0.3 |
| Resolution (mm) | 0.01875 |
| Profile Series | 20 Series |
| Profile | 20×40 |
| Colour | Silver |
| X Moment Of Inertia - (m4) | 4.818 x10-8 |
| Y Moment Of Inertia - (m4) | 1.239 x10-8 |
| For Stepper Motor Type | NEMA23 |

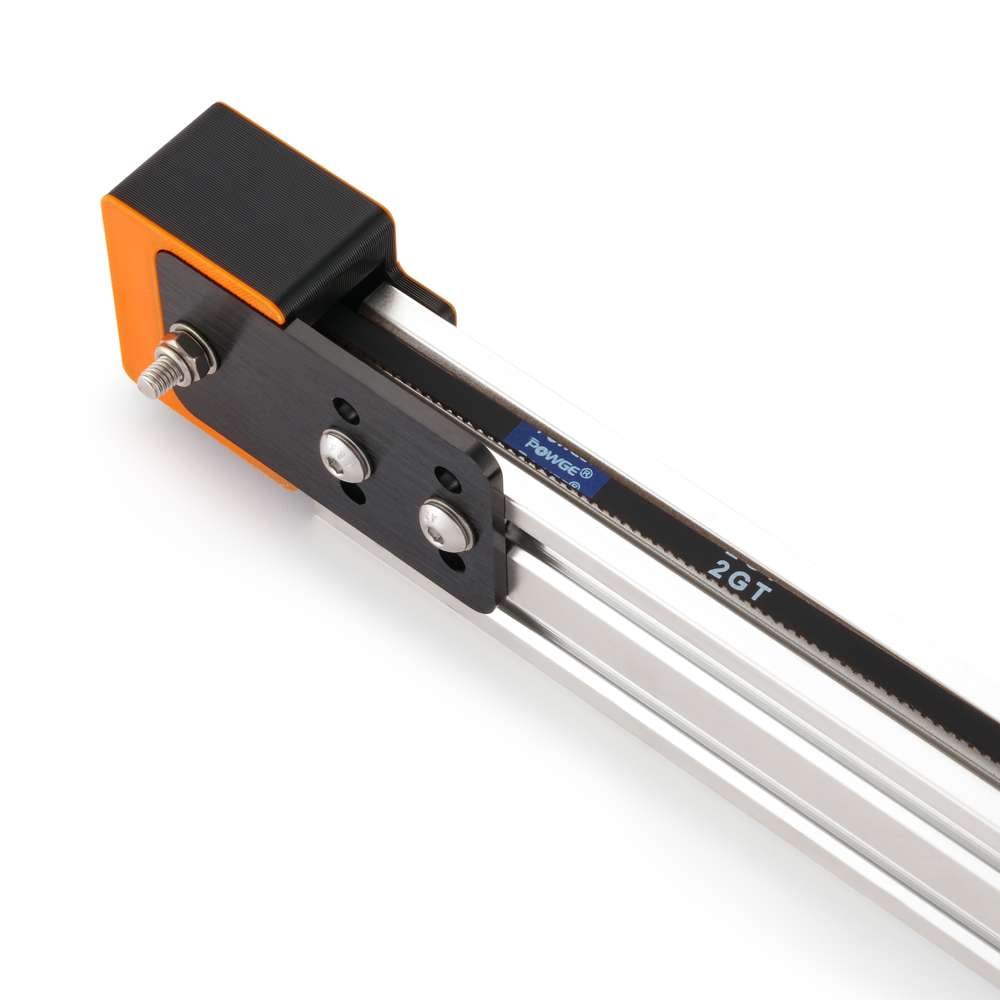

| Tooth Profile | GT 2MR (2mm Pitch) |
| Belt Width (mm) | 5 |
| Transmission Type | Belt Drive |
| Maximum Travel (mm) | 859 |
| Travel Per Revolution (mm) | 60 |

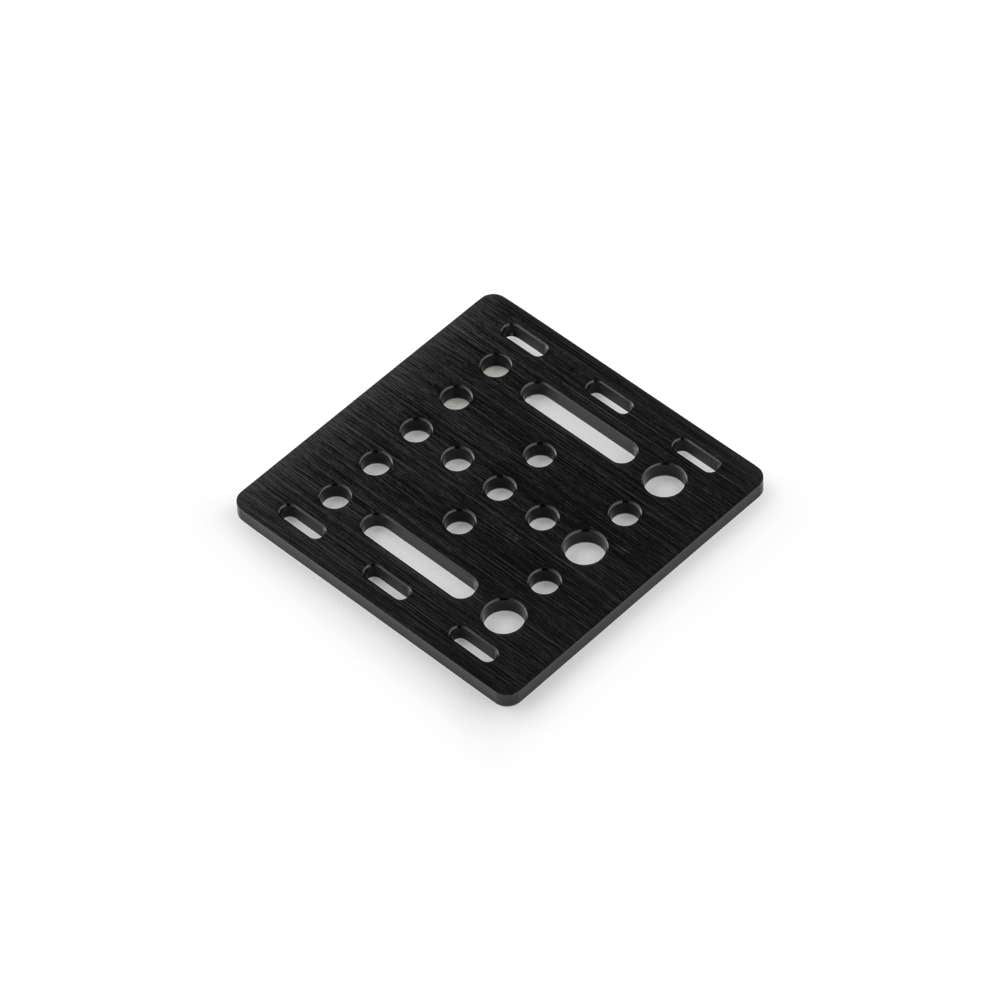

| Gantry Plate | Small V-Slot Gantry Plate (65x65mm) |

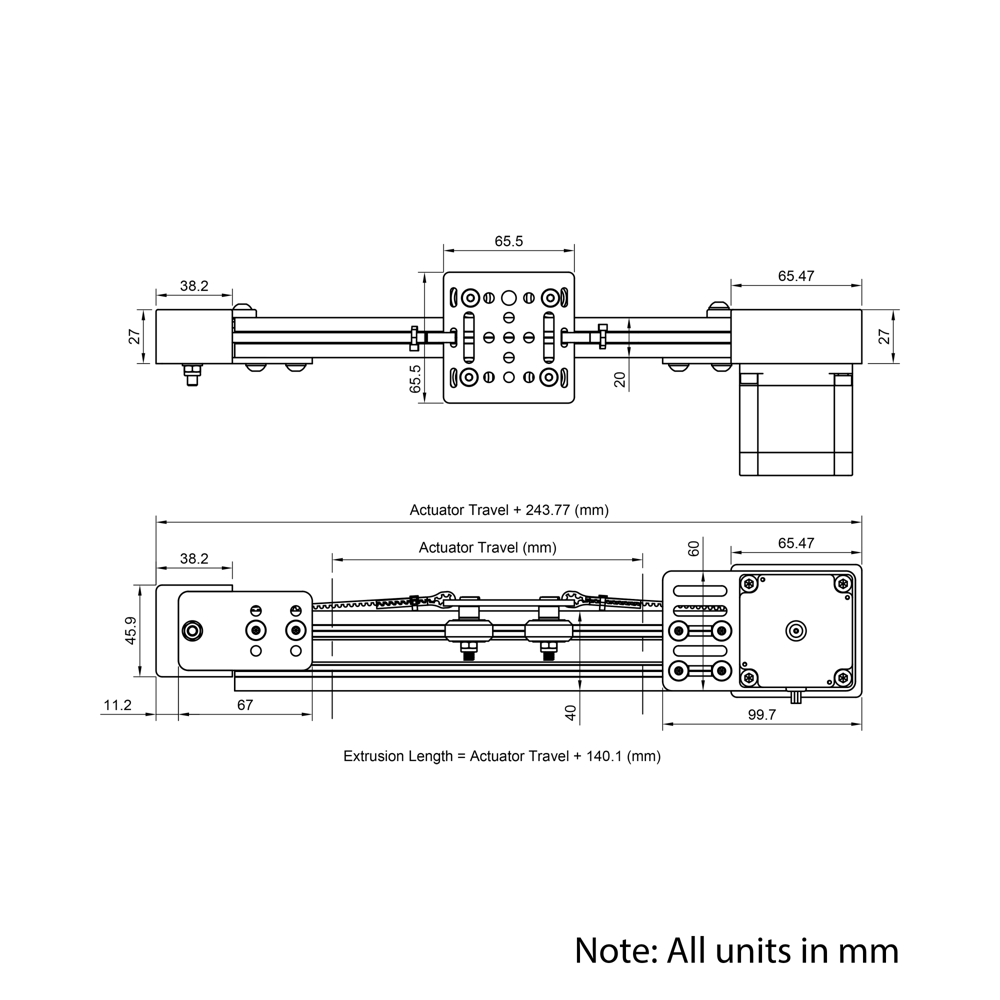

| Overall Length (mm) | 1103.67 |
| Extrusion Length (mm) | 1000 |
| Notes |
|---|
| To determine rated loads / speeds / accelerations please follow the calculator link on the resources tab. |
| The stated resolution is the theoretical movement per commanded microstep calculated using a 1.8° stepper motor and 16× microstepping. It does not represent guaranteed positioning accuracy or repeatability. |
| We offer customisations for this product. Please read the instructions below to submit your requirements correctly. |
|---|
| Actuator Travel (mm) |
|---|
|
What's Included
| Name | Quantity |
|---|---|
| Small Gantry NEMA23 Belt Drive Actuator (20x40mm, 859mm Travel) | 1 |
| Notes |
|---|
| Stepper motor not included. Please add a stepper motor separately. |
| The actuator will be customised to your specified travel if custom sizing is selected. |
