NEMA17 V-Slot Belt Drive Actuator Mount
Create NEMA17 belt-driven actuators and mount them directly to gantry plates or aluminium extrusion with this aluminium actuator mount.

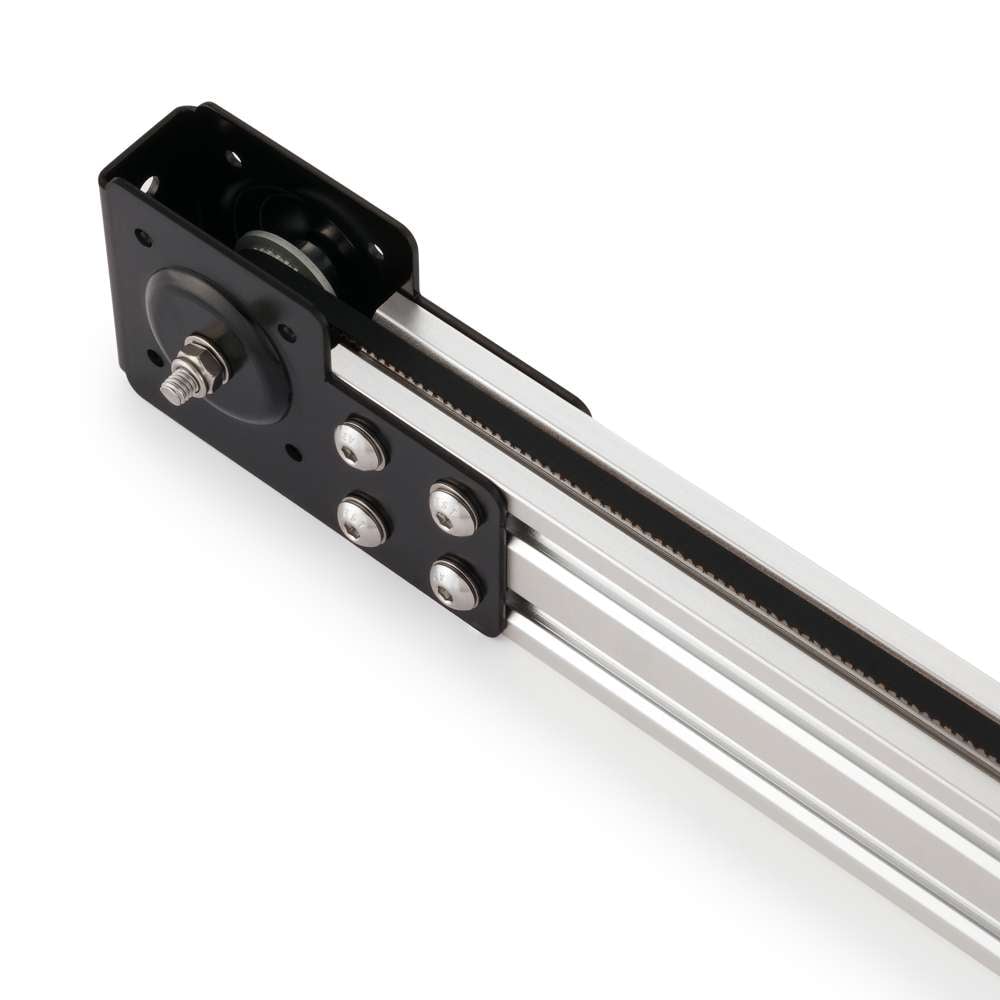

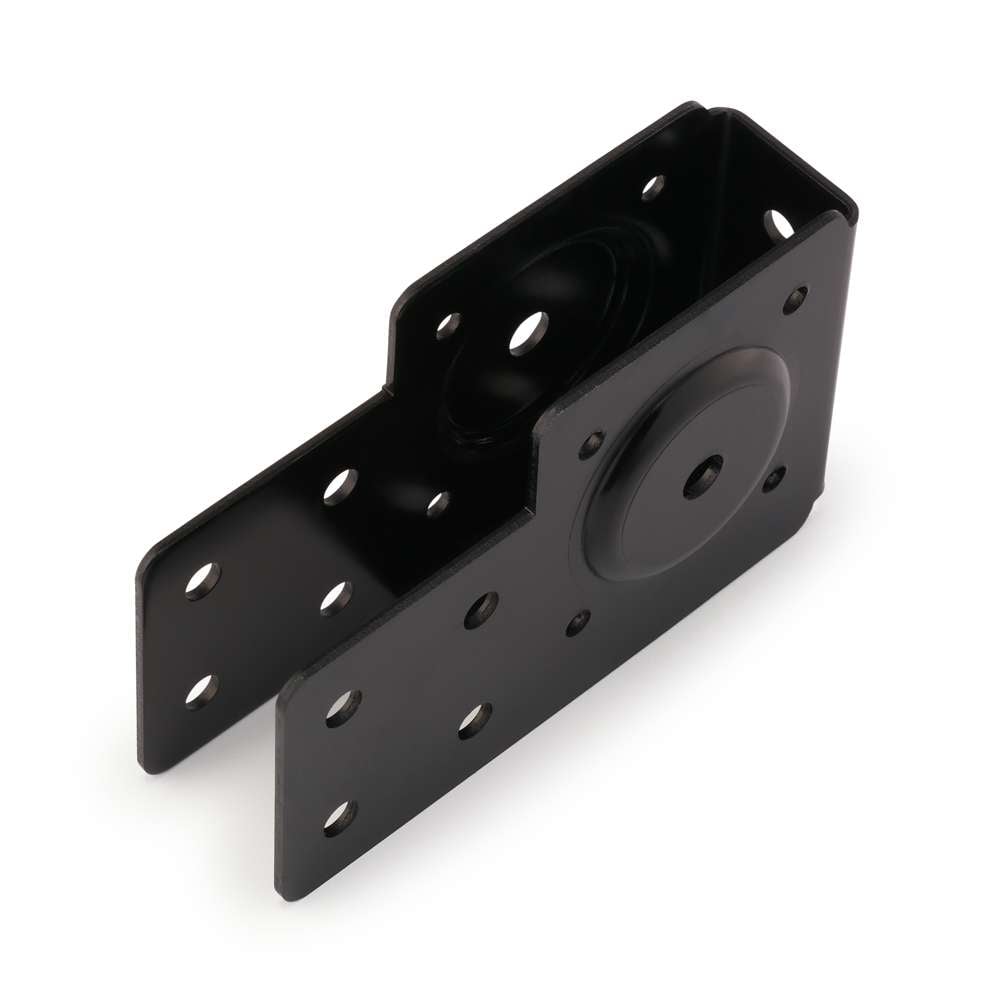

NEMA17 V-Slot Belt Drive Actuator Mount is a folded aluminium bracket designed to securely attach a NEMA17 stepper motor or idler pulley to T/V-Slot Aluminium Extrusions. In addition to motor and idler mounting holes, it features two 20mm spaced holes on both the underside and end face, allowing for easy attachment to gantry plates or directly into extrusion slots. Its dual-purpose design and flexible mounting geometry make it ideal for combining multiple actuators or integrating motion stages into more complex mechanical assemblies.
Key Features
- Dual-Purpose Design: Serves as a mount for the NEMA17 stepper motor or idler pulley in belt-driven actuator systems.
- V-Slot Compatible: Mounts directly to T/V-Slot Aluminium Extrusions for easy integration into linear motion builds.
- Flexible Mounting Options: Includes 20mm spaced holes on the underside and end for attachment to gantry plates or extrusions.
- Aluminium Construction: Made from high-strength black anodised aluminium for rigidity and corrosion resistance.
Application

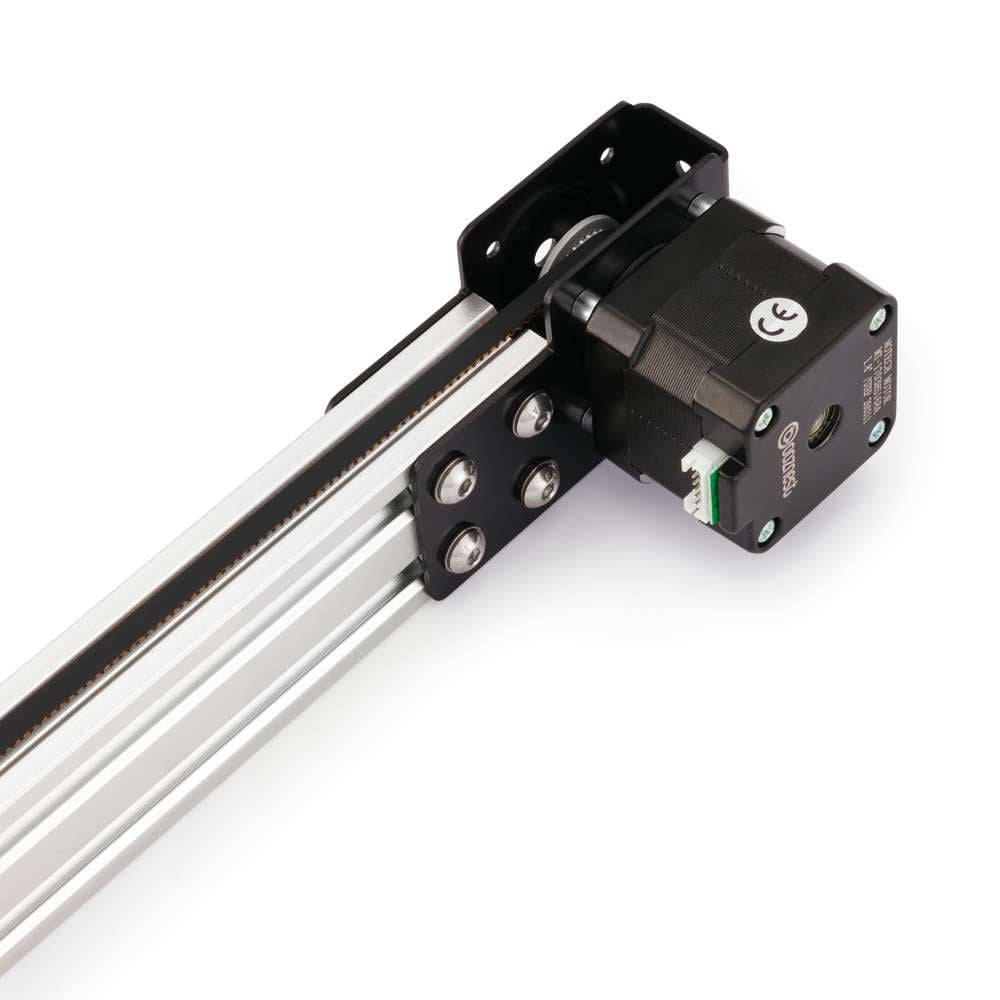

This actuator mount is ideal for building modular belt-driven linear motion systems in robotic assemblies, CNC machines and 3D printers. Its dual-purpose design and versatile mounting pattern allow components to be easily reconfigured, extended, or combined, making it perfect for scalable and customisable motion control setups.
| Brand | Ooznest |
|---|---|
| Stock Type | New |
| Weight (g) | 37.80 |
| Profile Series | 20 Series |
| Material | 5052 Aluminium |
| Surface Finish | Anodised |
| Colour | Black |
| Thickness (mm) | 1.6 |
| Number Of Fixing Points | 4 |
| Fixings Spacing (mm) | 20 |
| For Stepper Motor Type | NEMA17 |
| For Profiles | 20×40, 20×60, 20×80 |
| Transmission Type | Belt Drive |
| For Profile Types | T/V-Slot |
What's Included
| Name | Quantity |
|---|---|
| NEMA17 V-Slot Belt Drive Actuator Mount | 1 |
