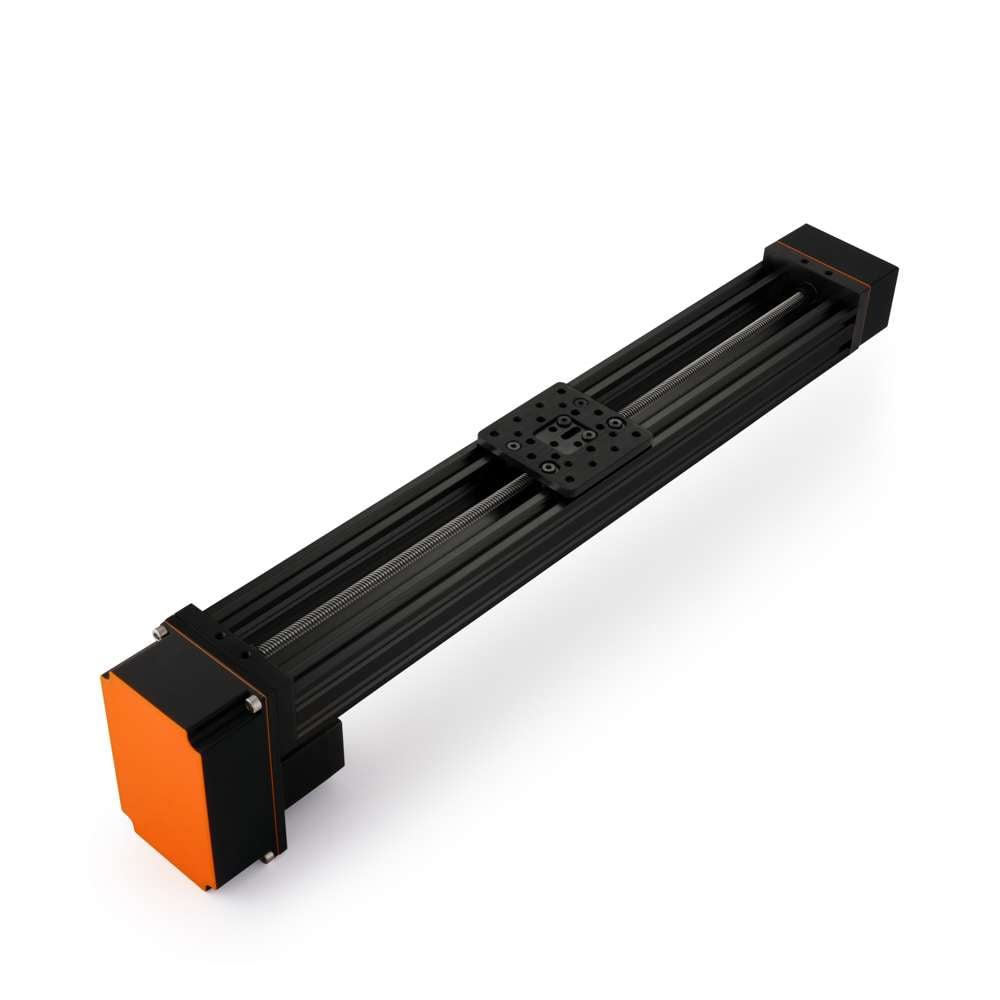

Medium Gantry NEMA23 Rear Mount C-Beam Screw Drive Actuator (Black, 422mm Travel)
NEMA23 C-Beam actuator with a tensioned lead screw for longer lengths. Rear-mounted motor reduces overall length and helps counterbalance gantry loads.
Medium Gantry NEMA23 Rear Mount C-Beam Screw Drive Actuator (Black, 422mm Travel) is a screw-driven linear actuator designed for use with a NEMA23 stepper motor. It converts rotary motion into linear movement, providing a practical solution for applications that require finer positioning and controlled movement. The C-Beam extrusion provides a self-contained design with three sides available for easy integration into systems and machines. Built using our standard extrusion, it offers a cost-effective solution for linear motion.

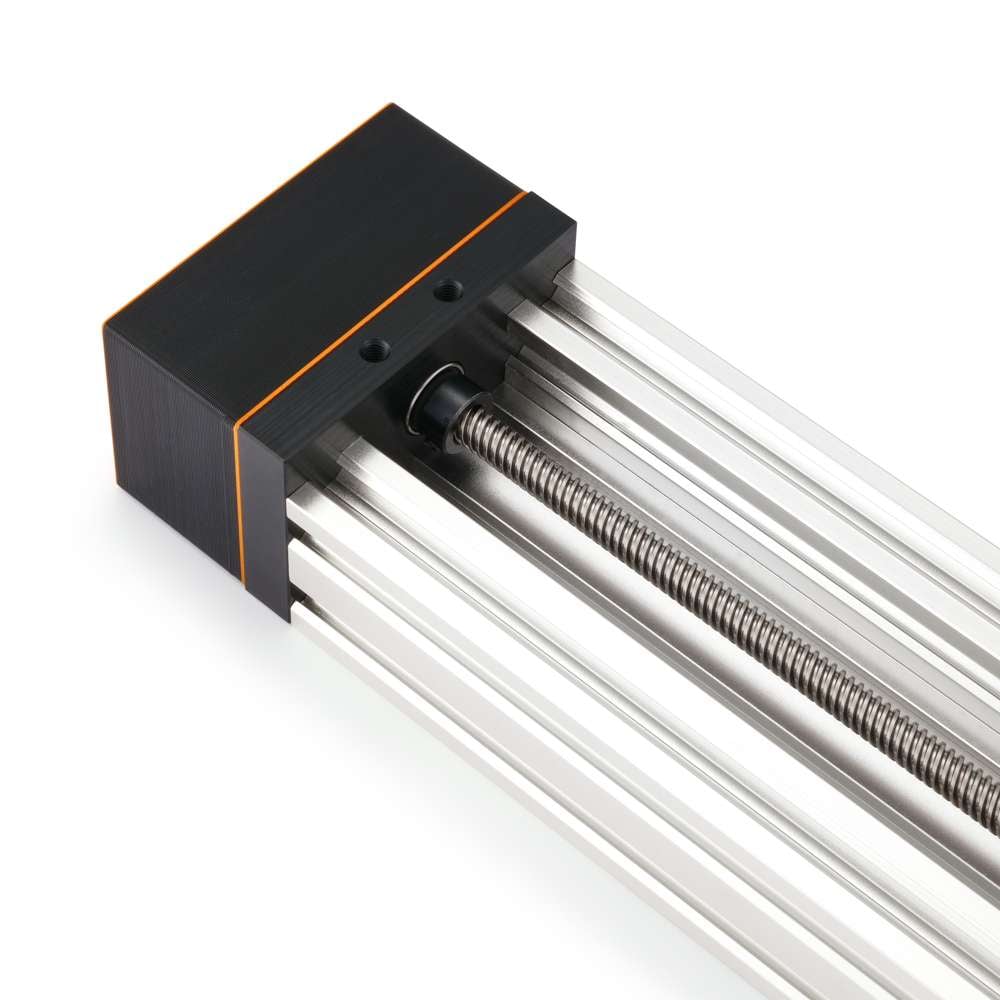

This version uses thrust bearings and a tensioned lead screw to reduce lead screw whip and allow longer maximum lengths compared with the compact version. The stepper motor is reversed by 180 degrees to reduce the overall length and help counterbalance loads on the gantry plate.
Key Features
- Screw Drive: Converts motor rotation into linear movement through a screw and nut mechanism.
- Motor Compatibility: Designed for use with a NEMA23 stepper motor.
- Higher Resolution: Screw-driven motion typically provides finer movement increments than belt-driven motion using an equivalent motor and control setup.
- Resistance to Deflection: The lead screw drive helps resist displacement along the travel axis under load.
- Linear Positioning: Provides controlled movement along a single axis when paired with a suitable motor and control system.
- Modular Construction: Uses parts from our aluminium extrusion system for easy integration into a complete system or machine.
- C-Beam Construction: Provides a self-contained design with three sides available for mounting and integration into a complete system or machine.

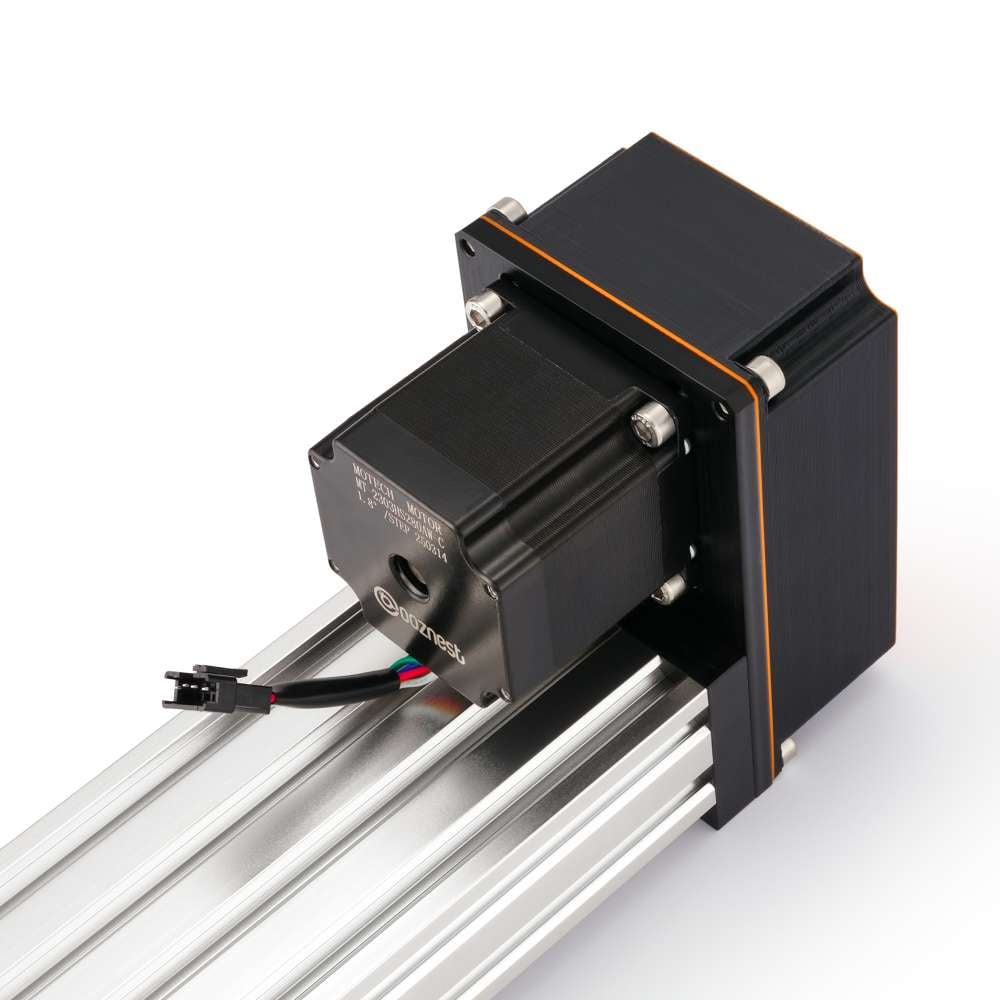

- Rear-Mounted Motor: The stepper motor is reversed by 180 degrees to reduce the overall length and help counterbalance loads on the gantry plate.
Pros and Cons
Choose a Rear Mount C-Beam Screw Drive Actuator for the tensioned lead screw construction of the standard version, with a rear-mounted motor that reduces the overall length.
| Pros | Cons |
|---|---|
|
|
Application
Linear actuators can be used in positioning systems for sensors and inspection cameras, small automation projects such as parts feeders and sorting mechanisms, and camera sliders for video and time-lapse photography. They can also be combined to create 2-axis or 3-axis machines for pen plotting, laser cutting, CNC machining or 3D printing, with actuator selection depending on the load and precision required. They are suitable for researchers, developers, businesses and personal use. Their cost-effectiveness and modular construction make them easy to integrate into a wide range of applications.
| Brand | Ooznest |
|---|---|
| Stock Type | New |
| Weight (g) | 2369.78 |
| Precision (mm) | +/- 0.1 |
| Resolution (mm) | 0.0025 |
| Profile Series | 20 Series |
| Profile | 40×80 (C-Beam) |
| Colour | Black |
| X Moment Of Inertia - (m4) | 58.09 x10-8 |
| Y Moment Of Inertia - (m4) | 12.09 x10-8 |
| Version | Rear Mount |
| For Stepper Motor Type | NEMA23 |
| Lead (mm) | 8 |
| Number Of Starts | 4 |
| Transmission Type | Lead Screw Drive |
| Maximum Travel (mm) | 422 |
| Travel Per Revolution (mm) | 8 |

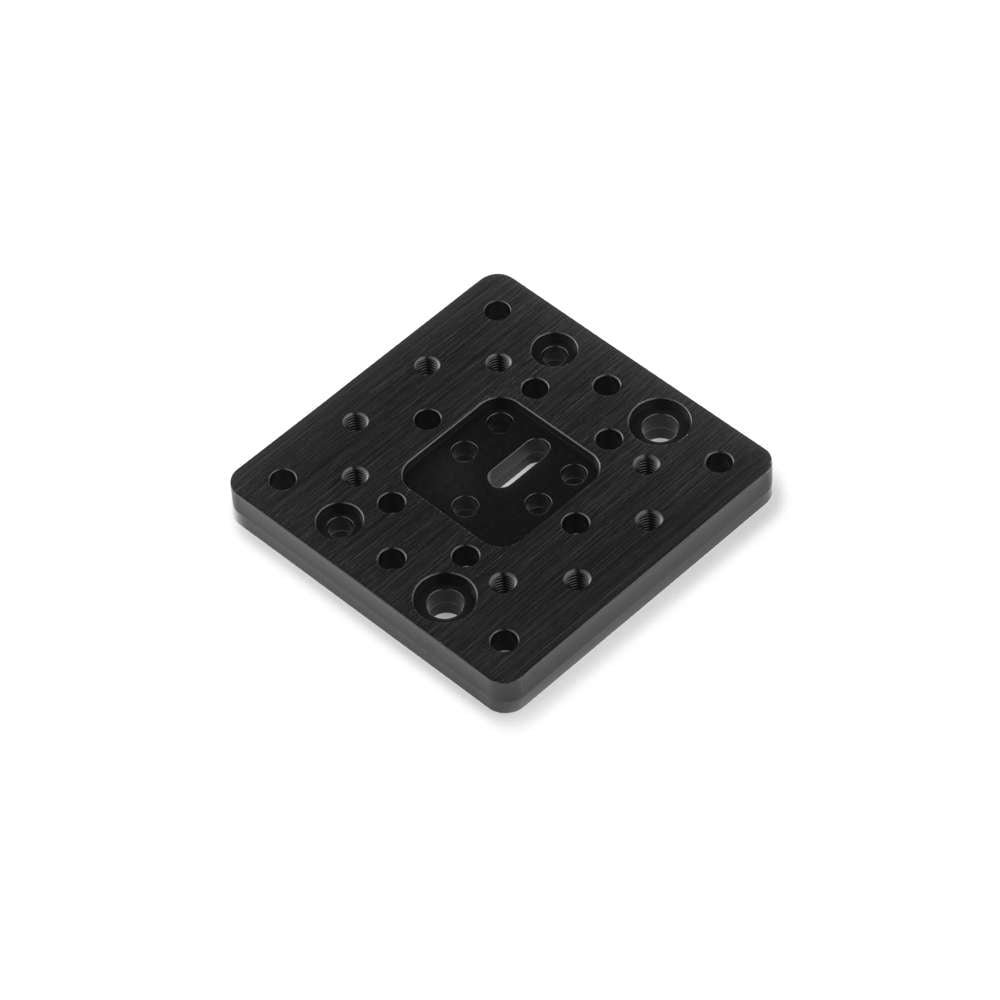

| Gantry Plate | Medium C-Beam Gantry Plate (77.5×77.5mm) |
| Lead Screw Diameter (mm) | 8 |

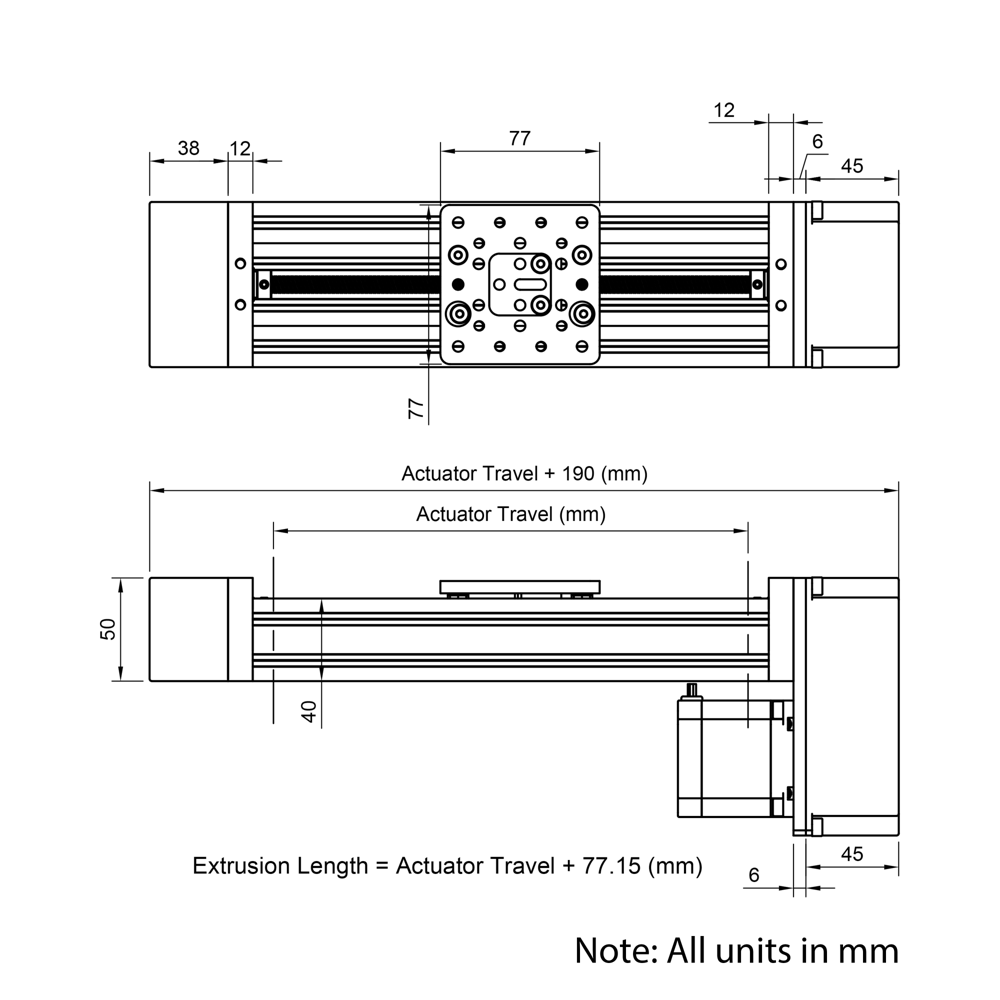

| Overall Length (mm) | 613 |
| Extrusion Length (mm) | 500 |
| Notes |
|---|
| To determine rated loads / speeds / accelerations please follow the calculator link on the resources tab. |
| The stated resolution is the theoretical movement per commanded microstep calculated using a 1.8° stepper motor and 16× microstepping. It does not represent guaranteed positioning accuracy or repeatability. |
| We offer customisations for this product. Please read the instructions below to submit your requirements correctly. |
|---|
| Actuator Travel (mm) |
|---|
|
What's Included
| Name | Quantity |
|---|---|
| Medium Gantry NEMA23 Rear Mount C-Beam Screw Drive Actuator (Black, 422mm Travel) | 1 |
| Notes |
|---|
| Stepper motor not included. Please add a stepper motor separately. |
| The actuator will be customised to your specified travel if custom sizing is selected. |
