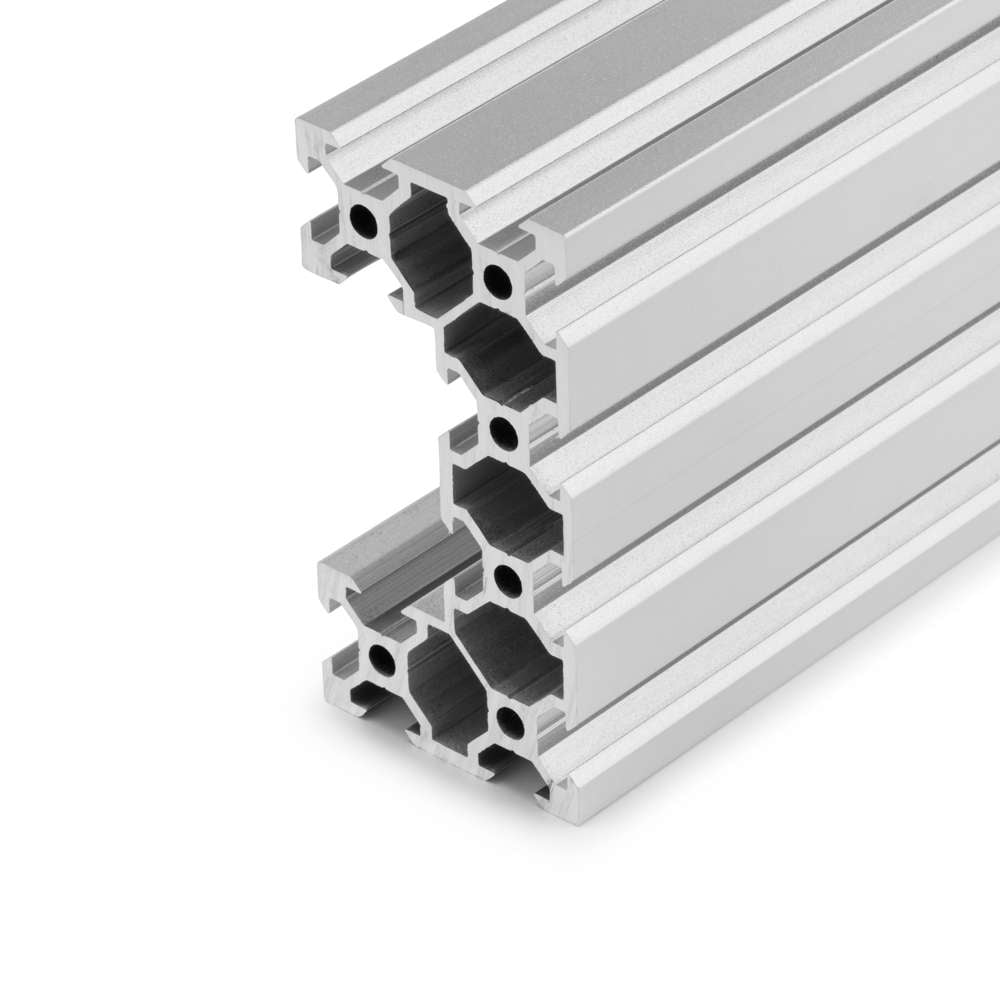

C-Beam Linear Rail – Cut To Size
13£0.029600 per mm
Taxes Calculated at Checkout
Use the options below to choose an extrusion colour and length range. Once both options are chosen, a precise length can be entered.

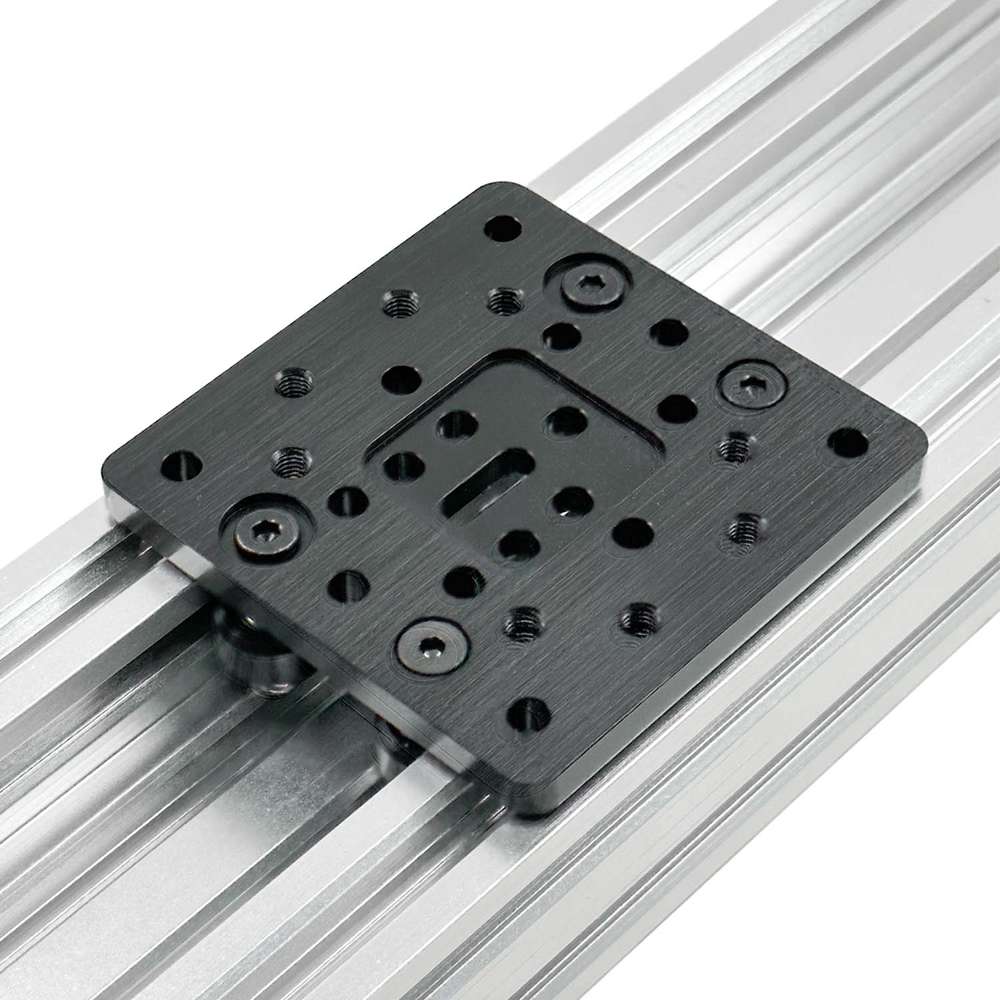

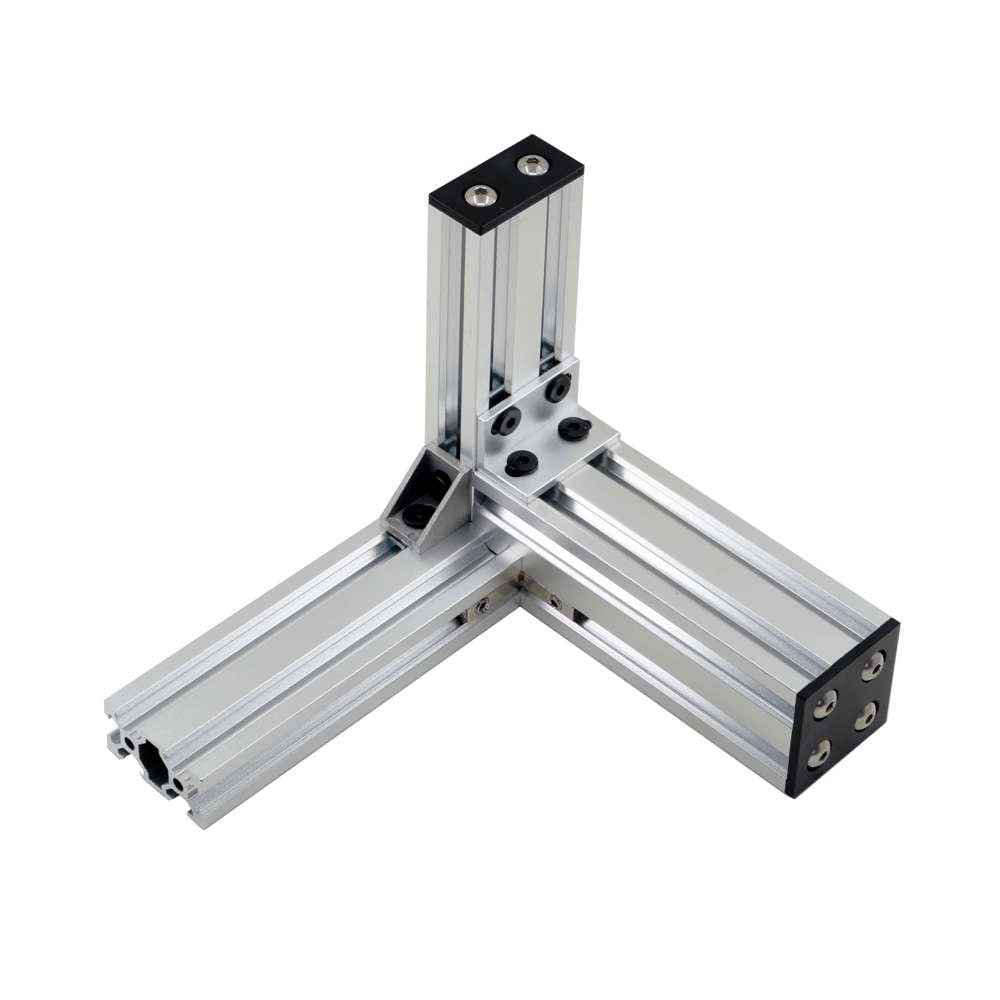

As given in the name, C-Beam has a C Shape profile. The C Shape is extremely versatile, and gives added strength and functionality. It incorporates the excellent original V-Slot system from Openbuilds. Because of the V-Slot system every side of extrusion can be used as a linear guide. Because C-Beam works hand in hand with V-Slot, all standard V-Slot gantry plates, wheels, mounts, brackets and fasteners are compatible with this extrusion.
C-Beam Linear Rail is available in lengths up to 3000mm, in a clear or black anodized finish. All rails come cut to size with 0.1mm accuracy. Just enter the length you require in millimetres above. V-Slot and C-Beam combined, allows for endless modular machines to be built, and should get your creative juices flowing. 3D Printers, CNC Machine’s, Camera Sliders, and Linear Actuators are all possible and easy!
One stand out example of what can be made with C-Beam is the C-Beam linear actuator. This linear actuator use a NEMA23 Stepper motor with an ACME Screw through the C-Channel of the extrusion to provide precise linear movement of 0.1mm accuracy or greater. With C-Beam simple actuators like this can be easily built and programmed to provide a whole host of functions.
TECHNICAL SPECIFICATION
Manufactured from 6063 T-5 Aluminium, C-Beam has a shiny, smooth, and clear anodized finish. Weights: 250mm – 510g, 500mm – 1020g, 1000mm – 1930g, 1500mm – 2950g.

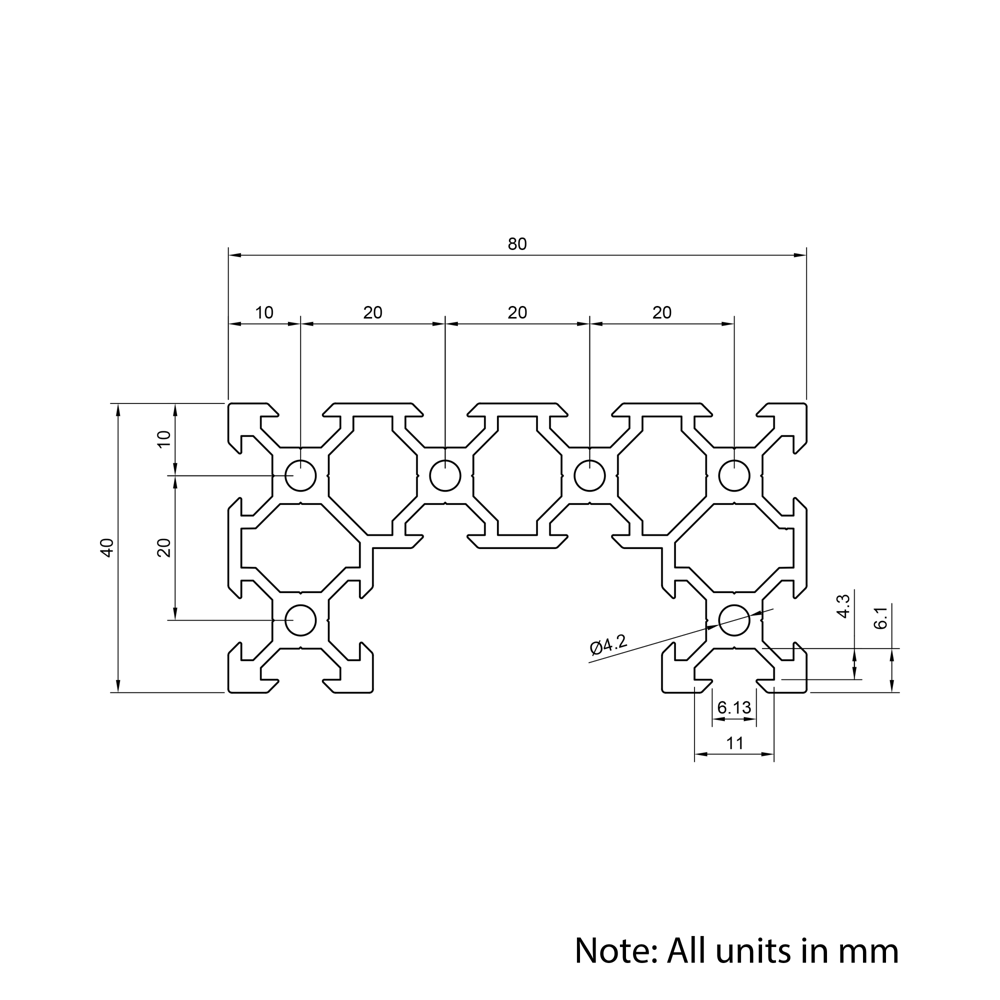

C-Beam can be considered as a 40 x 80mm V-Slot Profile compatible with all the standard V-Slot parts and accessories.
Rails are cut to your stated length +/-0.2mm. If chosen, we will tap the ends of the extrusion for a M5 Thread, they will be tapped at least 10mm deep.
