SKU: HDILC-B-O-20-F
(7)
1 x Heavy Duty Inner Link Connector - Butt - Outside - 20 Series - With Fixings

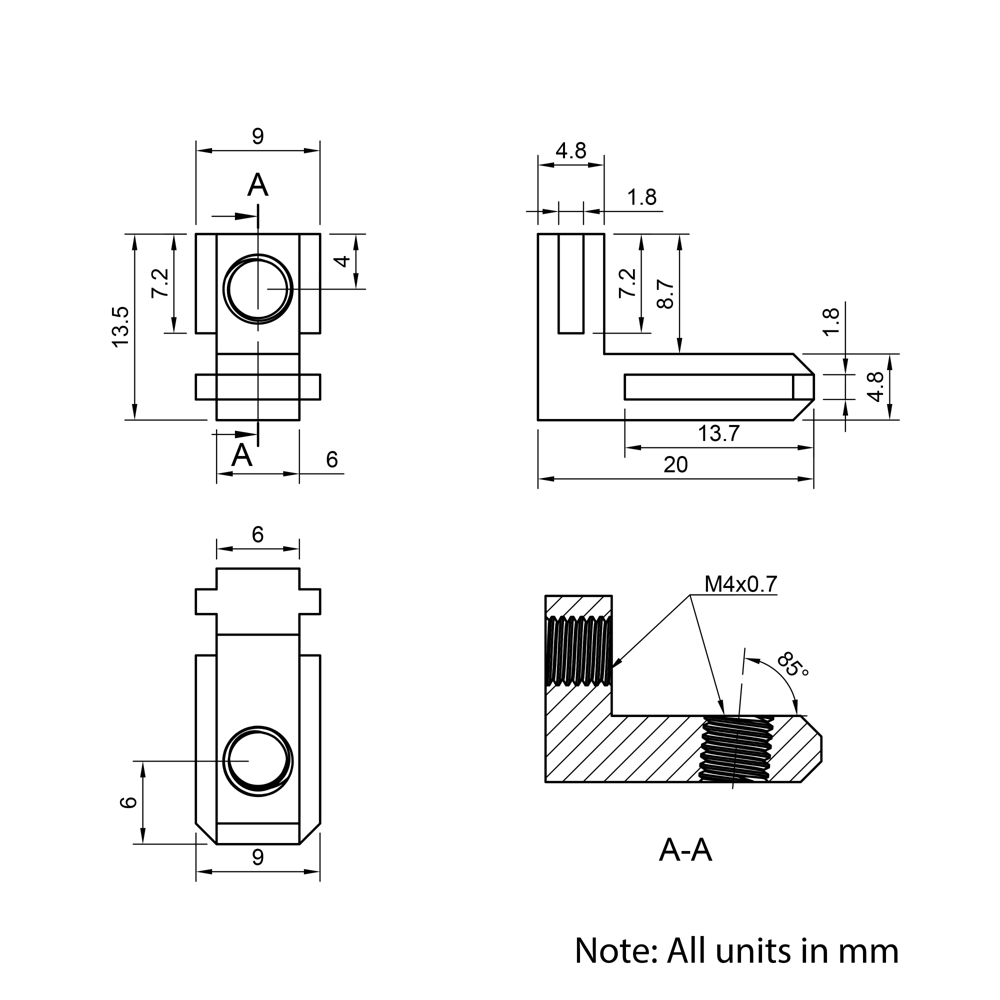

Technical Drawing Of Heavy Duty Inner Link Connector - Butt - Outside - 20 Series - With Fixings
Heavy Duty Inner Link Connector - Butt - Outside - 20 Series - With Fixings Joining Aluminium Extrusion
1 x Heavy Duty Inner Link Connector - Butt - Outside - 20 Series - With Fixings
Technical Drawing Of Heavy Duty Inner Link Connector - Butt - Outside - 20 Series - With Fixings
Heavy Duty Inner Link Connector - Butt - Outside - 20 Series - With Fixings Joining Aluminium Extrusion
1 x Heavy Duty Inner Link Connector - Butt - Outside - 20 Series - With Fixings
Technical Drawing Of Heavy Duty Inner Link Connector - Butt - Outside - 20 Series - With Fixings
Heavy Duty Inner Link Connector - Butt - Outside - 20 Series - With Fixings Joining Aluminium Extrusion
1 x Heavy Duty Inner Link Connector - Butt - Outside - 20 Series - With Fixings
Technical Drawing Of Heavy Duty Inner Link Connector - Butt - Outside - 20 Series - With Fixings
Heavy Duty Inner Link Connector - Butt - Outside - 20 Series - With Fixings Joining Aluminium Extrusion

Please rotate your device to landscape

3D Model Drawing

Butt Link Connectors offer an affordable, high-quality solution for joining extrusions at a 90° butt…

Read More
Brand:
(7)

20 Series T/V-Slot Heavy Duty Outside Butt Inner Link Connector

Reset Selection
Customise
There are no customisation options for this product.
Create A Bundle

There are no bundled options for this product.

QuantityUnit PriceDiscount
Selected price:1 – 4£3.000%
5 – 9£2.855%
10 – 24£2.7010%
25 – 49£2.4020%
50 – 99£2.1030%
100 – 249£1.8040%
250 – 499£1.6545%
500+£1.5050%

£3.00 (Inc VAT)

1179 in Stock
Delivery
Next Day
Click & Collect
Not Available
Returns
30 Days

20 Series Heavy Duty Outside Butt Inner Link Connectors offer a quick, cost-effective, and flexible solution for creating 90-degree butt joints in aluminium extrusion assemblies. These connectors require no machining of the extrusion, allowing for maximum flexibility in design and easy assembly. Featuring concealed fixings, they provide a sleek, professional finish at an affordable price, making them ideal for a variety of lightweight and adaptable projects.

Pros and Cons

Heavy Duty Butt Inner Link Connectors for quick, adjustable, and concealed aluminium extrusion assemblies.

Pros Cons
  • No Machining Required: Simplifies assembly by eliminating the need for complex modifications to the extrusion.
  • Quick Assembly: Streamlined design enables rapid installation, saving time and effort.
  • Adjustable: Allows for flexibility and easy reconfiguration in your design.
  • Concealed Connection: Provides a clean, professional appearance for finished assemblies.
  • Low Shear, Moment, and Torsional Force: Not suitable for heavy-duty or high-load applications.

Application

Butt Inner Link Connectors are specifically designed for use with our 20 Series T/V-Slot Aluminium Extrusion. They efficiently connect 20 Series extrusions to form a 90 degree butt joint. For enhanced stability and a more robust connection, it is recommended to increase the number of connectors used, for example use 2 to connect two 20×40 aluminium extrusions.

Brand

Ooznest
Stock Type

New
Weight (g)

6.32
Profile Series

20 Series
Material

Die Cast Zinc
Colour

Natural
Thread

M5
Socket Size (mm)

2.5
Number Of Fixing Points

2
Number Of Ways

2
Insertion Type

End
Connecting Angle (°)

90
Orientation

Outside
M5x6mm Cup Point Grub Screw (DIN 916, A2 Stainless Steel) x2
20 Series T/V-Slot Heavy Duty Outside Butt Inner Link Connector x1
Resources Page
Product & Assembly 3D Viewer

Delivery

  • Free UK Mainland Shipping: Orders over £120 Incl. VAT qualify for free next day shipping.
  • Same Day Dispatch: Orders placed before 13:00 are dispatched the same day.
  • Worldwide Shipping: Available for international orders.

For more details, visit Delivery Information

Returns

  • 30-Day Return: Items can be returned within 30 days of delivery.
  • Condition: Must be in original packaging and ‘as-new’ condition.
  • Refunds: Issued after inspection, excluding original shipping costs.
  • No Exchanges: Only refunds are provided.
  • Return Costs: Customers bear return postage costs and should use a tracked service.

For more details, visit Returns

4.7
7 reviews
5 Stars
6
4 Stars
0
3 Stars
1
2 Stars
0
1 Stars
0

  1. Peter H

    Excellent precision and squareness

    2 years ago

  2. M D

    Needed in a hurry and again I trusted in Ooznest to deliver and they did.

    4 years ago

  3. Mr Drage

    Does it’s job just fine.

    6 years ago
Description

20 Series Heavy Duty Outside Butt Inner Link Connectors offer a quick, cost-effective, and flexible solution for creating 90-degree butt joints in aluminium extrusion assemblies. These connectors require no machining of the extrusion, allowing for maximum flexibility in design and easy assembly. Featuring concealed fixings, they provide a sleek, professional finish at an affordable price, making them ideal for a variety of lightweight and adaptable projects.

Pros and Cons

Heavy Duty Butt Inner Link Connectors for quick, adjustable, and concealed aluminium extrusion assemblies.

Pros Cons
  • No Machining Required: Simplifies assembly by eliminating the need for complex modifications to the extrusion.
  • Quick Assembly: Streamlined design enables rapid installation, saving time and effort.
  • Adjustable: Allows for flexibility and easy reconfiguration in your design.
  • Concealed Connection: Provides a clean, professional appearance for finished assemblies.
  • Low Shear, Moment, and Torsional Force: Not suitable for heavy-duty or high-load applications.

Application

Butt Inner Link Connectors are specifically designed for use with our 20 Series T/V-Slot Aluminium Extrusion. They efficiently connect 20 Series extrusions to form a 90 degree butt joint. For enhanced stability and a more robust connection, it is recommended to increase the number of connectors used, for example use 2 to connect two 20×40 aluminium extrusions.

Specifications
Brand

Ooznest
Stock Type

New
Weight (g)

6.32
Profile Series

20 Series
Material

Die Cast Zinc
Colour

Natural
Thread

M5
Socket Size (mm)

2.5
Number Of Fixing Points

2
Number Of Ways

2
Insertion Type

End
Connecting Angle (°)

90
Orientation

Outside
What’s Included
M5x6mm Cup Point Grub Screw (DIN 916, A2 Stainless Steel) x2
20 Series T/V-Slot Heavy Duty Outside Butt Inner Link Connector x1
