20 Series Butt Inner Link Connector
Brand:Ooznest
Butt Link Connectors offer an affordable, high-quality solution for joining extrusions at a 90° butt joint, for lightweight and adjustable projects.
20 Series Butt Inner Link Connectors are a cost-effective and simple solution for making connections at a 90 degree butt joint. They provide an efficient, affordable, and high-quality method for joining aluminium extrusions, making them ideal for projects that are not load-bearing or require frequent adjustments, such as in the initial design stages. Whether you’re working on a large-scale project or a prototype, these connectors ensure ease of assembly and flexibility in your design.
Key Features
- Cost-Effective: Provides an economical solution without sacrificing quality, making it accessible for all types of projects.
- Easy Assembly: The straightforward design, featuring the Inner Link Connector and grub screws, allows for quick and simple aluminium extrusion assembly.
- Ideal for Prototyping: Perfect for rapid prototyping, these links enable efficient connections, allowing your design to evolve seamlessly.
- Designed for Minimal Load: Tailored for applications with minimal load requirements, offering stability without the bulk of heavy-duty connectors.
- Versatile Compatibility: Compatible with our 20 Series T/V-Slot Aluminium Extrusion, allowing for a wide range of applications and configurations.
Application

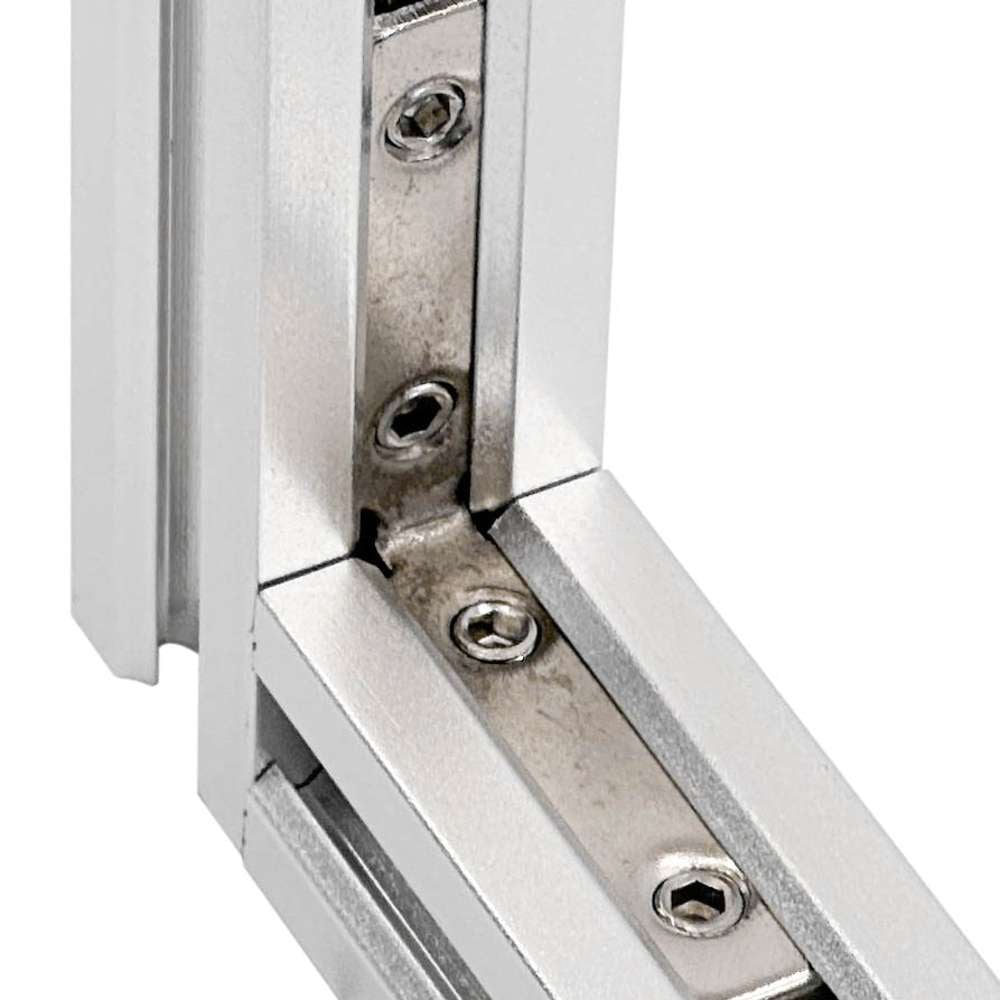

Butt Inner Link Connectors are specifically designed for use with our 20 Series T/V-Slot Aluminium Extrusion. They efficiently connect 20 Series extrusions to form a 90 degree butt joint. For enhanced stability and a more robust connection, it is recommended to increase the number of connectors used, for example use 4 to connect two 20×80 aluminium extrusions.
| Brand | Ooznest |
|---|---|
| Stock Type | New |
| Weight (g) | 7.00 |
| Profile Series | 20 Series |
| Material | Carbon Steel |
| Surface Finish | Nickel Plated |
| Colour | Natural |
| Thread | M5 |
| Socket Size (mm) | 2.5 |
| Number Of Fixing Points | 4 |
| Fixings Spacing (mm) | 20 |
| Number Of Ways | 2 |
| Insertion Type | End |
| Connecting Angle (°) | 90 |

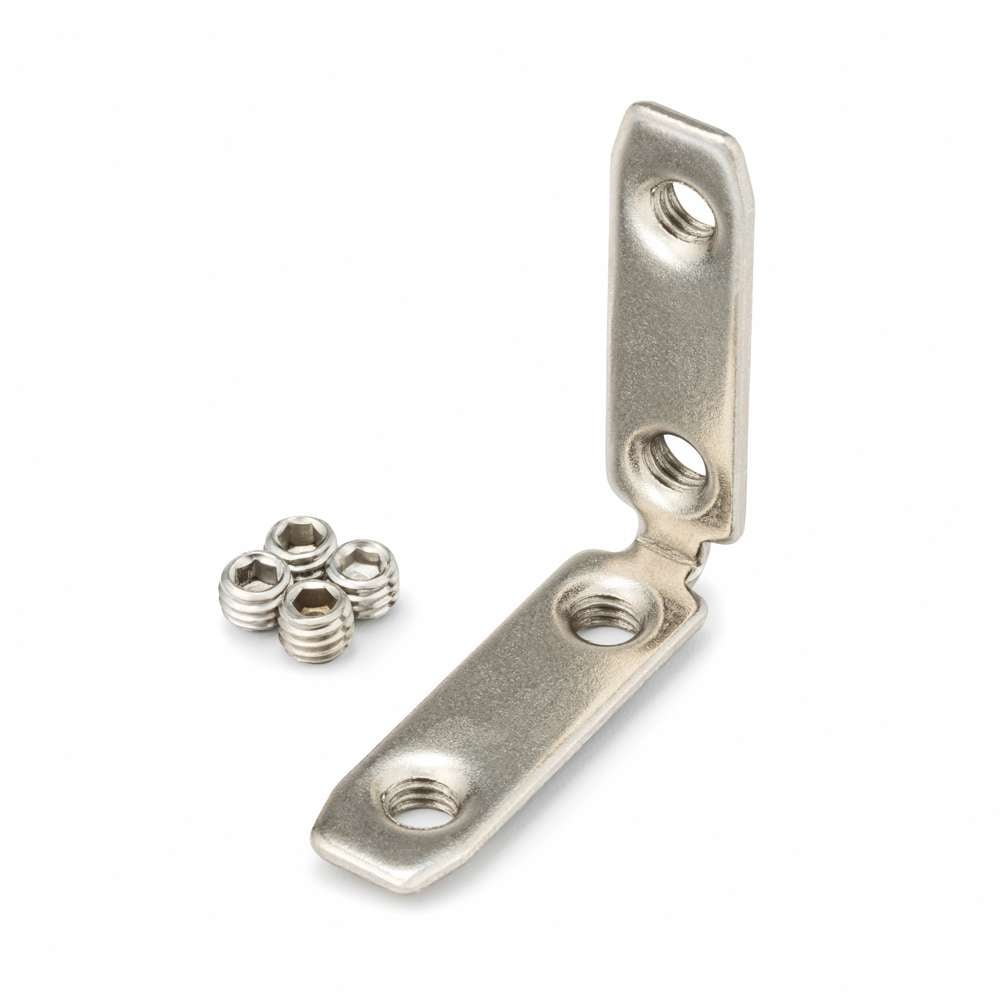

What's Included
| Name | Quantity |
|---|---|
| M5 x 4mm Cup Point Grub Screw – DIN 916 – A2 Stainless Steel | 4 |
| 20 Series Butt Inner Link Connector | 1 |
- Free UK Mainland Shipping: Orders over £100 Incl. VAT qualify for free next day shipping.
- Same Day Dispatch: Orders placed before 13:00 are dispatched the same day.
- Worldwide Shipping: Available for international orders.
For more details, visit Delivery Information
- 30-Day Return: Items can be returned within 30 days of delivery.
- Condition: Must be in original packaging and ‘as-new’ condition.
- Refunds: Issued after inspection, excluding original shipping costs.
- No Exchanges: Only refunds are provided.
- Return Costs: Customers bear return postage costs and should use a tracked service.
For more details, visit Returns
Reviews
Only logged in customers who have purchased this product may leave a review.
Related products
Sale!
Out of stock
(5)
£24.16 - £29.15 (Inc VAT)
This product has multiple variants. The options may be chosen on the product page
Sale!
Out of stock
Tony (verified owner) –
Great Value for Money, Great Quality üôÇ
Josh Hefetz (verified owner) –
Arrived bent and threads unusable
Chris B (verified owner) –
Not up to the task of creating a robust, strong connection / fixing. The set screws are too soft and strip easily if tightened firmly. Corner brackets work much better.
Flavio Vinicius Spalato Zanchi (verified owner) –
Every one in five threads on the brackets was defective, otherwise all good
Mr Drage (verified owner) –
Perfect fit.
John (verified owner) –
Not all square and not all threads fully cut. Stick to external 90 degree braces.
Wojciech Matuszek (verified owner) –
Good quality
Customer (verified owner) –
Not very rigid so if you need rigid construction, spend the extra money and use the cast inserts instead. This isn’t a particular criticism of Ooznest, just the product wasn’t suitable for my use
David Nolan (verified owner) –
All good. Just what I needed.
dick (verified owner) –
Does the job, what can I say?
S.Fulford (verified owner) –
Sturdy construction and easy to use, works perfectly for T-Joints, used with the 2 hole joining plate.
